Basic Info.
Driving Method
LED Constant Current
Circuit Structure
PWM Controlled
Power Supply Mode
Constant Current Source
Power Supply Voltage
AC85-265
Pack Sealing Size
178*68*43mm
Working Temperature
-25~+50 Degree C
Safety Standard
En60950 UL60950 GB4943
Transport Package
Standed Exporting Carton
Specification
CE ROHS ISO9000
Production Capacity
1000PCS/Week
Product Description

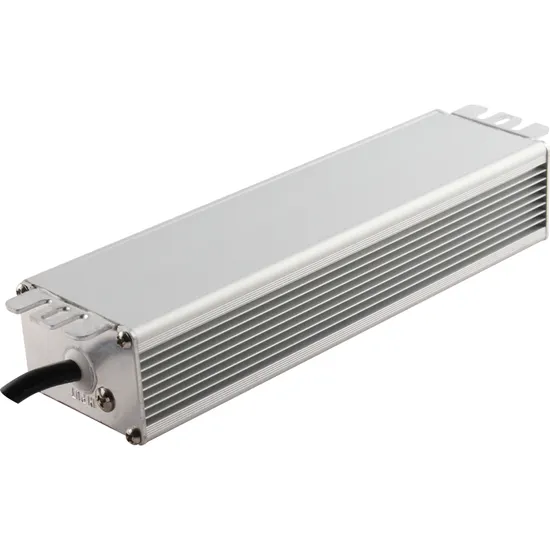

LED water-proof power supply characteristics:
Aluminum plastic shell with internal irrigation design in line with the requirements of IP67 waterproof
Protection: Short circuit, overl oad, over voltage, over temperature protection
Apply to indoor and outdoor LED lighting, electronic billboards, decorative lighting applications garden landscaping
Natural air-cooled heat
100% full load burn-in test
Comply with CE certification
Low price and high reliability
Features:
1) High efficiency, low operation temperature
2) Aluminum plastic shell
3) 100% full load burn-in test
4)CE, RoHS
| Model | | SMA-60-12 | SMA-60-24 | SMA-60-36 |
| Output | DC output Voltage | 6-12V | 12-24V | 18-36V |
| Voltage tolerance | ±1.0% | ±1.0% | ±1.0% |
| Rated Current | 5A | 2.5A | 1.7A |
| Related Power | 60W | 60W | 60W |
| Wave&Noise | 50MVP-p | 50MVP-p | 100MVP-p |
| Set up, rise, hold up time | 200ms 100ms 30ms |
| Input | Voltage Range | 170-264VAC 47-63Hz |
| Input Current | 0.3A/230VAC |
| Efficiency | 75% | 82% | 85% |
| AC inrush current | Cold start current 30A /230VAC |
| Leakage current | <1mA/240VAC |
| Protection | Overload | Related output power 105-135% start overload protection |
| Protection type: Hiccup mode, recovery after restart power |
| Over voltage | Reted output power 135-150% start over voltage protection |
| Protection type: Hiccup mode, recovery after restart power |
| Over temperature | When temp of transistor inner is over 150, start over temp protection |
| Pretect mode: Cutoff output, auto-recover after temperature become normal |
| Water-proof degree | IP67 |
| Environment | Working temp humidity | -10~+60°C 20%~90%RH |
| Stor temp, humidity | -20~+85°C 20%~90%RH Non-condensing |
| Withstand vibration | 10-500Hz, 2G 10min/Ccle, period for 60min, each axes |
| Safety | Withstand voltage | I/P-O/P: 1.5KVAC I/P-FG: 1.5kVA O/P-FG: 0.5kVA |
| Isolation resistance | I/P-O/P: I/P-FG, O/P-FG: 100M Ohms/500VDC |
| Standard | Safety standard | Fit UL1012 |
| EMC standard | Fit EN55022 CLASSA |
| Size | Size | L178*W68*H43mm |
| Package | 0.97kg, 30PCS/30kg |
| Note: 1. All parameters not specially mentioned are measured at 230VAC input, related load and 25 C f ambient temperature. 2. Wave&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1UF&47UF parallel capacitor. 3. Tolerance: Includes set up tolerance, line regulation and load regulation. |
>>
