US$1,900.00-2,500.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
YDHMB15-YDHMB30
Machining Process
Hydraulic
Certification
ISO9001:2015
Discharge Way
Hydraulic Opening at The Bottom
Applied Equipment
Excavator,Skid Steer and Backhoe Loader
Quality Control
ISO%100% Inspection Before Delivery
Transport Package
Plywood Case
Specification
As negotiated
Production Capacity
500sets/Month
Product Description

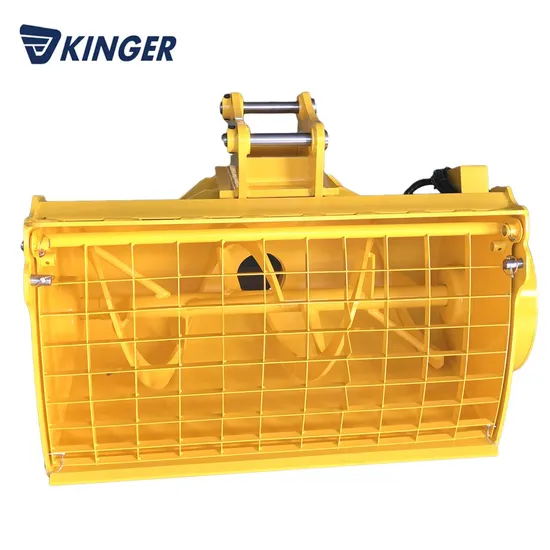

KINGER Mixer Bucket attachment easily takes the strain out of producing solid work, which come in seven sizes to save your work time with our model able to mix and transport up to 500L concrete in one load.
There toal seven models form YDH-MB15 to YDH-MB50,which can fit excavator, skid steer, backhoe and loaders.
KINGER MIXER BUCKET SPECIFICATIONS
| Model | YDH-MB15 | YDH-MB20 | YDH-MB25 | YDH-MB30 |
| Rated Capacity(L) | 150 | 200 | 250 | 300 |
| Max Capacity(L) | 200 | 240 | 290 | 340 |
| Drive | Chain | Chain | Chain | Chain |
| Oil pressure( Bar) | 60-200 | 60-200 | 60-200 | 60-200 |
| Oil flow(Lpm) | 40-80 | 40-80 | 40-90 | 40-90 |
| Unit Weight(KG) | 350 | 390 | 470 | 480 |
Our main advantages:
1.With a hydraulic opening at the bottom of the mixer bucket as well as a detachable unloading pipe, you will easily have maxium control over each pour.
2.The bucket and stirring blade are made of high-strength wear- resistant materials, which make it difficult to be worn during working process.
3.It uses multisage seal in bearing place to prevent from the mud. In this way, the bearing lifetime will be longer.
4. Hig quality control valves and electricl connection kits inside make KINGER mixer bucket shows well performance in produceing solid work.
5.Accpet OEM&ODM for large orders,which means we can paint as your requirements and put your logo on our mixer bucket.
Welcome to send inquiry
>>
