US$10.00-9,999.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
DCPSLHXD040A-X2
ISO Standard
1; 1.25; 1.5; 2; 2.5; 3; 3.5; 4; 5; 6
DIN Standard
DN25,DN50,DN65,DN80,DN100,DN125,DN150
Temperature
<121 Centigrade
Material
Vmq/EPDM/FKM/Customization
Transport Package
Wooden Case
Specification
DN25-DN150; ISO1inch -6inch
Production Capacity
200 Pcsyear
Product Description
Product Description

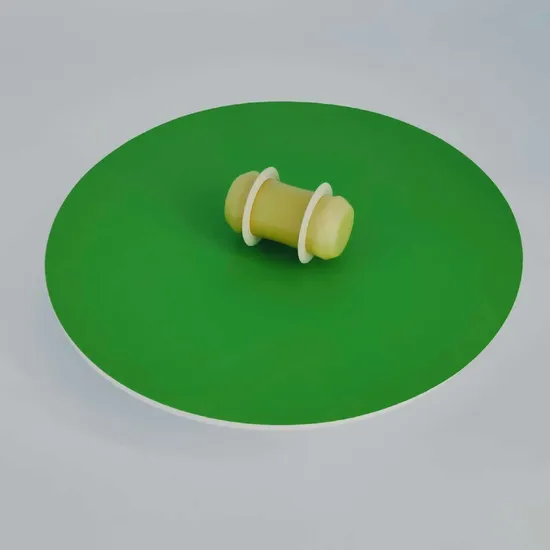

The HYPERFORE dismountable lip pig, is a. kind of bi-directional pig, designed with hygiene in mind, is expertly crafted using sanitary materials and features soft, elastic lip-shaped seals. These specially engineered lip-shaped seals not only extend the pig's lifespan but also make it exceptionally well-suited for products containing particles, as evident in various pigging cases. One of the key advantages of this pig is its replaceable lip-shaped seals, which can be individually swapped out, ensuring cost-effective maintenance.
Furthermore, the dismountable pig, known for its exceptional versatility, effortlessly navigates through elbows with bending radii of 1.5D, 3D, and 5D, making it a perfect fit for a wide array of pipeline configurations. This innovative design not only enhances the pig's longevity but also guarantees its adaptability to diverse product and pipeline requirements, making it an ideal choice for hygienic applications and various pigging solutions.
Material: lip (VMQ, FKM, EPDM,PU) body (PP, POK,PFA)
Detailed Photos
Product Parameters
Replaceable lip pigs - ISO pipeline series
| Part No. | Size | Pipe | L1 | L2 | Weight/g |
DCPSLHXT025A-X2
| 1" | Φ25.4*1.5
| \
| \ | 18.66 |
DCPSLHXT032A-X2
| 1.25" | Φ31.8*1.5
| 25
| 50 | 37.5 |
DCPSLHXT038A-X2
| 1.5" | Φ38.1*1.5
| 34.2
| 61.4 | 66.6 |
DCPSLHXT051A-X2
| 2" | Φ50.8*1.5
| 43.3
| 82.8 | 160 |
DCPSLHXT064A-X2
| 2.5" | Φ63.5*2.0
| 50.3
| 99.8 | 300 |
DCPSLHXT076A-X2
| 3" | Φ76.1*2.0
| 75.5
| 137.5 | 480 |
DCPSLHXT089A-X2
| 3.5" | Φ88.9*2.0
| 65.5 | 117.5 | 821.4 |
DCPSLHXT102A-X2
| 4" | Φ101.6*2.0
| 84.8 | 156.3 | 1237.8 |
DCPSLHXT127A-X2
| 5" | Φ127*2.0
| \ | | \ |
DCPSLHXT152A-X2
| 6" | Φ152.4*2.0
| \ | | \ |
Replaceable lip pigs - DIN 11850 second series
| Part No. | Size | Pipe | L1 | L2 | Weight/g |
DCPSLHXD025A-X2
| DN25 | Φ29*1.5
| 25
| 50 | \ |
DCPSLHXD040A-X2
| DN40 | Φ41*1.5
| 34.2
| 61.4 | \ |
DCPSLHXD050A-X2
| DN50 | Φ53*1.5
| 43.3
| 82.8 | \ |
DCPSLHXD065A-X2
| DN65 | Φ70*2.0
| 50.3
| 99.8 | \ |
DCPSLHXD080A-X2
| DN80 | Φ85*2.0
| 65.5
| 117.5 | \ |
DCPSLHXD100A-X2
| DN100 | Φ104*2.0
| 75.5
| 137.5 | \ |
DCPSLHXD125A-X2
| DN125 | Φ129*2.0
| 84.8 | 156.3 | \ |
DCPSLHXD150A-X2
| DN150 | Φ154*2.0
| \ | | \ |
Company Profile
Hygienic Pigging System and Solutions -Professional SupplierHYPERFORE is an experienced manufacturer of hygienic pigging system in China. We were established in 2005. And the product recovery systems we design and manufacture are manual, automatic, sanitary and aseptic. At the same time, we also provide hygienic pigging system solutions for all kinds of industries. Hyperfore has been engaged in high-quality recovery pigging system research and development. Meanwhile, we continuously update the pigging technology. Our pigging products like pigging stations and sanitary pigs are cost-effective. And they meet customers' special requirements.Nowadays, we are so honored to provide our high-quality and economical product recovery systems and services to the global clients. Meanwhile, these clients are active in various industries. For instance, dairy products, beverage, edible oil, pharmaceutical, cosmetics, cleaning liquid, hotpot sauce, lithium battery slurry, paint and coatings, curry sauce and any liquid product that is pumped and transferred in pipeline.Hyperfore is a professional and responsible company.Because our most important goal is to raise customers' competitiveness. Certainly, the interests of our customers are what we care most.
After Sales Service
1.Technical support
2.Training
3.Spare parts and repair kits
4.On site Maintenance
5.Remote technical guidance
>>
