NBR Rubber PU Rod Hydraulic Oil Seals Manufacturing Machine CNC
| Specification | CS600 |
| Max. Turning diameter over bed | 650 mm |
| Max. Seal Turning diameter | 600 mm |
| Spindle | A2-6 |
| Spindle bore diameter | 65 mm |
| Max. spindle speed | 4200 r/min |
| Chuck size | 8 inch chuck |
| X-axis rapid move speed | 24 m/min |
| Z-axis rapid move speed | 24 m/min |
| X-axis travel | 300 mm |
| Z-axis travel | 450 mm |
| X-axis motor (with brake) | Siemens 2.29 kw / 11Nm |
| Z-axis motor | Siemens 2.29 kw / 11Nm |
| X-axis guide | SKF 30 |
| Z-axis guide | SKF 35 |

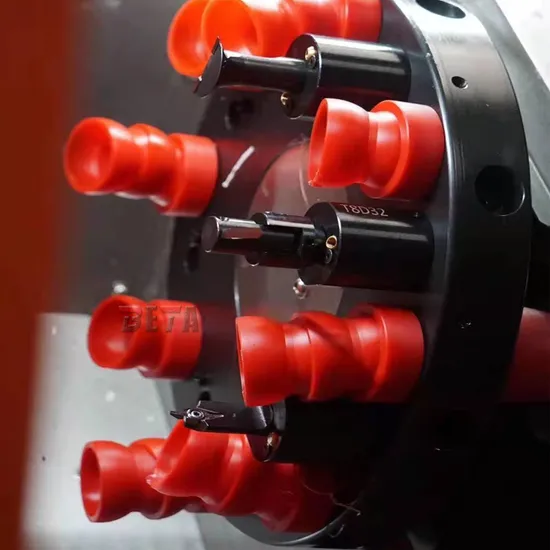

| Turret type | Horizontal 8 station VDI turret |
| X/Z axis ball leadscrew | Taiwan HIWIN SKF |
| Leadscrew bearing | Germany FAG |
| Spindle bearing | NSK |
| Electrical components | Schneider |
| Main motor power | 7.5 kw |
| CNC Controller | Siemens 828D controller |
| Motor power of suction machine | 5.5 kw |
| Machine weight | 3200 kg |
| Overall size of CNC lathe | 2750*1780*1920 mm |
| Overall size of Suction machine | 900*1100*2000 mm |
| Repeated positioning accuracy X-axis/Z-axis | 0.004mm/0.004mm |
