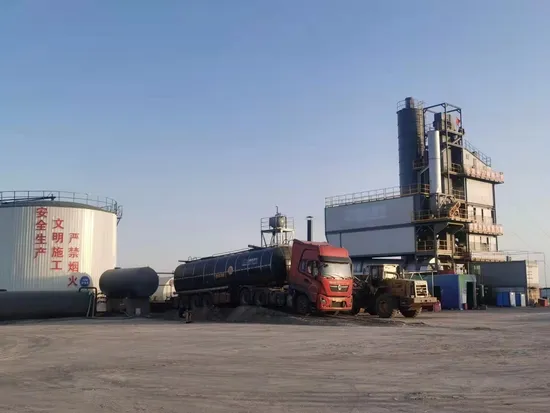

Better 65 Tons Per Hour Ba700 Asphalt Mixing Plant

Product Description

Product Description
Product Parameters

Model	BA700 Asphalt Mixing Plant
Type	Batch Mix / Hot Mix
Capacity	65 Tons Per Hour (Standard Working Condition)
Mixer	750kg/batch
Fuel Consumption	Diesel consumption: 5.5-7.0 kg /ton
Weighing Precision	Hot aggregate ±0.5%; bitumen ±0.3%; filler:±0.2%
Hot Asphalt Temperature	130ºC-165ºC(adjustable)
Air Emissions	≤20mg/Nm³
Working Noise	≤70db(A)
Operation	Full Auto/Manual Operation
Installation Power	178kw
Voltage	220V/380V-50Hz (adjustable)
Plant Covering Area	Length: 35m; width: 30m; max height point: 17m
Total Weight	95t
Documents	Lay-Out/ Electric Circuit Diagram; Chinese-English Operation Manual; Qualification Certificate

LB1000	Item	Specification
1.Cold Aggregate Feed System	Storage bins	Capacity: 6m3
		Load height: 2.7m
	Variable speed discharge belt	Size: B500*3400mm
		Power: 1.5kw
		Capacity: 5~40 Tons Per Hour
	Frequency converter
	Aggregate collecting belt	Size: B500
		Max capacity: 60 Tons Per Hour
		power: 4kw
	Oversize screen	Aggregate ≥40mm be taken out
	Aggregate conveying belt	Size: B600*16000mm
		Max capacity: 120 Tons Per Hour, power: 4kw
	Vibrator of sand bin	Power: 0.25kw
2. Drying Drum	Drying drum	Dimensions: 1200*5300mm
		Max. capacity: 60 Tons Per Hour
	Rock wool isolation	Thickness: 50mm
	Friction driving reduction gears with motor	Power: 7.5kw
	Temperature sensor
3. Burning System	Heavy oil and Diesel Dual burner	Italy
	Automatic flame failure protection devices
	Fuel pump	Power: 2.2kw
	Diesel tank	10000L
	Air blower	Power: 15kw
4. Dust Collecting System (water dust collector)	Primary dust collector(level one) + water dust collector(level two)
5. Filler Supply System	Level indicator
	Filler silo	30m3
	Filler screw conveyor	Capacity: ≥ 10 Tons Per Hour, power: 2.2kw
	Filler elevator	Chains type, capacity: ≥ 20 Tons Per Hour
		power: 4kw
6. Bitumen Supply System	Thermal oil heating system	300,000kcal
	Bitumen tank	30t
	Diesel oil burner for heating thermal oil
	Discharge thermal oil gear pump	Power: 5.5kw
	Thermal oil circulating pump	Power: 7.5kw
	Discharge bitumen gear pump	Power: 5.5kw
	Bitumen pump	Power: 5.5kw
		Capacity: 20m3/h
	Bitumen unload tank	2t
7. Mixing Tower	Hot aggregate elevator, chains type	Chains type, capacity: ≥ 60 Tons Per Hour, power: 11kw
	Circular vibration screen	5 deck
		capacity: ≥ 100 Tons Per Hour, power: 7.5kw
	Hot aggregate Storage hopper	5+1 rooms
		Total volume: 10m³
	Hot aggregate Weighing hopper	Volume: 700kg
	Filler weighing hopper	Volume: 70kg
	Bitumen weighing hopper	Volume: 70kg
	Twin shaft mixer	Capacity: 1000kg/batch
		Mixing time 18s; cycle time 40s
		Power: 18.5kw*2
	Bitumen spraying pump	Power:5.5kw
8. Pneumatic System	Air compressor	Exhaust: 3Nm³/min
		Power: 22kw
	Air storage tank	Volume: 1000L
9. Control System	Electrical motor control system
	Aggregate temperature control system
	PLC burner control system
	PLC weighing control system
	PLC mixing control system
	Control room	Control cabinet
	size: 4000*2200m*2300mm	Operating platform
		Voltmeter
		Ammeter
		Printer
		Industrial computer
		Air condition
10. Additional supply	Accessories
	Working tools

After Sales Service
we are famous building machinery manufacturer, professional construction machinery exporter and one stop solution supplier in China, our team have more than 15 years experience in this field already.
(1)Warranty:Every product issued shall enjoy a one-year/2000 working hour warranty period, during which we will repair or replace the defective parts free of charge if material or process defects occur and spare parts are in normal working condition.
(2)Spare parts:CANMAX is dedicated to provide our clients with genuine spare parts with the highest quality,exact fitness and appropriate function.with our global distributor network,you are guaranteed with fast deliveries and services, wherever you are,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately.
(3)Installation & Maintenance:CANMAX is able to provide with the overall installation of complicated machinery,allowing you to start the normal operation of construction machinery solutions.After installation,we will make inspection of the whole machine,operate equipment,and provide you with testing data reports of installation and operation.
(4)Training:CANMAX offer perfect facilities and comfortable environment and can provide training services to different users. The training sessions include product training, operation training, maintenance know-how, technical know-how training, standards, laws and regulations training and other training, all of which are tailored to fulfill your individual needs. Training programs can be conducted in our factory field, or at the client's site.
(5)Technical Advice: CANMAX can also help customers to coordinate with trained service personnel and provide you with detailed and extensive knowledge. Through our technical advice, your machine life can be significantly extended and sustained high capacity.
FAQ
Which countries do you export to?
Asia: India, Philippines, Thailand, Burma, Vietnam, Bangladesh, Kazakhstan, Turkmenistan, etc. Middle East: Saudi Arabia,UAE, Oman,Pakistan, Qatar, etc. Europe: Russia, Ukraine, Belarus, Bulgaria, etc. Africa: South Africa, Kenya, Congo, Ethiopia, Nigeria, Ghana, Algeria, Senegal, etc. South America: Brazil, Peru, Chile, Cuba, Mexico, etc. Oceania: Papua New Guinea, Australia, etc.
What is the proportion of your products exported?
75% of our products are exported to all over the world.
What is the payment term?
Payment term is negotiable and there will be favorable payment terms for long-term customers. TT, L/C, D/P, depending on the cooperation time, country and contract value.

What kind of logistic service do you supply?
A. Transportation: railway transportation, international through transport, including (international railway through transportation, Sea-rail intermodal through transportation, sea-land multimodal transportation. Means of transport : Container, LCL, FRC, ro-ro, bulk cargo, train carriage, truck, air plane.
B. Term: FOB,CIF, DAP, to door service, etc.

What spare parts can you supply?
All kinds of spare parts of SHANTUI, ZOOMLION, SINOTRUCK, SHACMAN, LIUGONG, SAN Y, SDL G, LONKING, XGMA, CUMMIN S ENGINE, GEAR BOX, etc.

---
