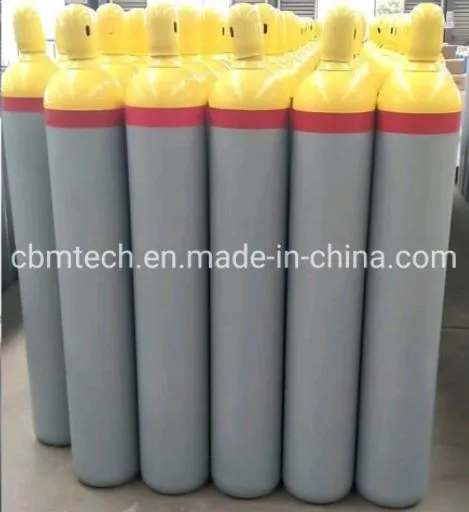

High Pressure Steel Gas Cylinders

Product Description

Product Description EN1964-1 Std Seamless Steel Gas Cylinders 40L's specs:
-Material: 34CrMo4
-Water Capacity: 40liters
-Diameter: 229mm, 204mm
-Working pressure: 200bar
-Height: 1250mm
-Weight: 53kg
-Design wall thickness: 5.2mm
-Color and valves: As per preferred.
Our EN1964-1 Standard Seamless Steel Gas Cyliners are mainly for european countries. They are ideal mobile high-pressure vessels to fill permanent gases and high pressured liquefied gases:
(1) Water capacity range from3.4L to 80L;
(2). Material include 30CrMo and 37Mn;
(3). Working pressure: 230bar. 150bar, 200bar.
All the manufacturing technology and properties's tests are entirely under the supervision of the thirty-party supervision institute approved by General Administration of Quality Supervision, Inspection and Quarantine of China.

Serial No.	Type	Outer Diameter (mm)	Working Pressure(MPa)	Volume(L)	Design Wall Thickness(mm)	Length (mm)	Weight (kg)	Material
1	EN1964 108-3.4-174	108	174	3.4	2.1	490	4	34CrMo4
2	EN1964 108-3.1-223	108	223	3.1	2.7	470	4.5
3	EN1964 140-6.8-174	140	174	6.8		580	7.5
4	EN1964 140-6.1-223	140	223	6.1	3.5	530	8
5	EN1964 152-10.2-174	152	174	10.2	2.9	710	11.1
6	EN1964 152-9.1-223	152	223	9.1	3.7	675	9.7
7	EN1964 204-10-166.7	204	166.7	10	3.8	460	18
8	EN1964 204-13.4-166.7	204		13.4		570	23
9	EN1964 204-20-166.7	204		20		800	28
10	EN1964 204-26.8-166.7	204		26.8		1040	33
11	EN1964 204-10-200	204	200	10	4.6	470	19
12	EN1964 204-13.4-200	204		13.4		580	24
13	EN1964 204-20-200	204		20		810	29
14	EN1964 204-26.8-200	204		26.8		1050	36
15	EN1964 204-40-200	204		40		1510	48
16	EN1964 229-40-166.7	229	166.7	40	4.8	1250	50
17	EN1964 229-50-166.7	229		50		1510	58
18	EN1964 229-40-200	229	200	40	5.2	1250	53
19	EN1964 229-45-200	229		45		1370	57
20	EN1964 229-50-200	229		50		1510	59
21	EN1964 229-40-200	229		40	5.7	1250	55
22	EN1964 229-45-200	229		45		1370	58
23	EN1964 229-50-200	229		50		1510	62
24	EN1964 267-60-200	267		60	6.2	1370	74
25	EN1964 267-68-200	267		68		1510	81
26	EN1964 267-70-200	267		70		1530	83
27	EN1964 267-60-166.7	267	166.7	60	6.5	1370	73	34Mn2V
28	EN1964 267-67.5-166.7	267		67.5		1510	81
29	EN1964 267-70-166.7	267		70		1530	82
30	EN1964 267-60-166.7	267		60	6.8	1370	74
31	EN1964 267-67.5-166.7	267		67.5		1510	82
32	EN1964 267-70-166.7	267		70		1530	83
33	EN1964 279-60-200	279	200	60	6.4	1280	78	34CrMo4
34	EN1964 279-70-200	279		70		1460	85
35	EN1964 279-80-200	279		80		1640	92

*About Us:
We can manufacture and supply Seamless Steel Oxygen Cylinders, Portable Oxygen Cylinder Sets, Gas Oxygen Tanks, Oxygen Flowmeters, Medical Oxygen Flow Regulators, Oxygen Cylinder Regulators With Humidifiers, Medical Oxygen Inhalers, Click-style Oxygen Regulators, Wall-type Oxygen Regulators, Reuseable O2 Humidifiers, Disposable Oxygen Humidifiers, Medical Oxygen Cylinders, Aluminum Oxygen Cylinders, Medical Oxygen Kits, Oxygen Intake Devices, Gas O2 Valves, Medical Pin Index Valves, Medical Gas O2 Supply System Products, Gas O2 Cylinder Trolleys, Oxygen Carts, Gas O2 Outlets, Ceiling Medical Pendants, Medical Gas Oxygen Respiratory Products and etc.
*Advantages We Have:
-1)Original Manuacturer: We have professional equipments like CNC Machines, and etc.;
-2)Large Output capability: We have the capability to produce more than 50, 000PCS of Medical Oxygen Flowmeters each month;
-3)Quality Control: With ISO13485 Quality Management system; All products have been tested before out of our branch factories;
-4)Cost Advantages: We have cost advantage because our professional and scale economy;
-5)Series: We have different series and models, for different standards in different countries;
-6)Small order can be acceptable: M. O. Q. =100PCS;
-7)Exporting experience: We have nearly 5 years' experience for exporting.
What we can promise for you:
*High quality and security gas cylinders;
*Competitive unit price in the market;
*Fast delivery (3~4 weeks);
*Best after-sale service.
Anyway,should you have any intersts or some more info needed on our gas cylinders & allied gas items(gas cylinder valves,gas regulators,medical hospital central oxygen system products),you are really welcome to enquire us anytime!
