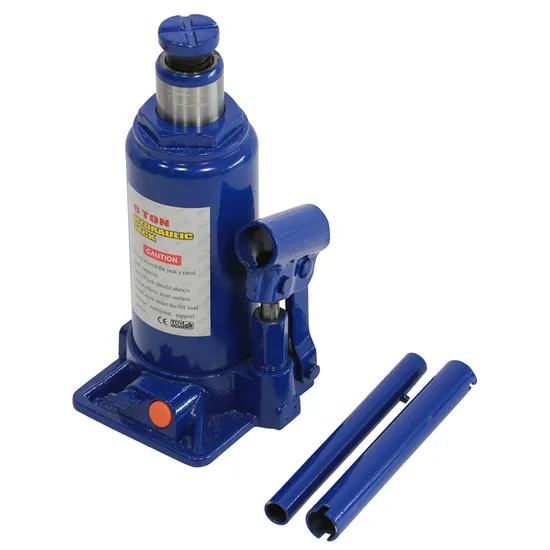

Hydraulic Bottle Jack with Safety Valve Tool CE Certificated for Car Lift 8 Ton

Product Description

Model	Capacity	Min.H	Lifting.H	Adjust.H	Max.H	N.W	Package	Measurement	Qty/Ctn	G.W	20' Container
	(ton)	(mm)	(mm)	(mm)	(mm)	(kg)		(cm)	(pcs)	(kg)	(pcs)
ST0203	2	158	90	60	308	2.23	Color Box	52x25.5x19	10	23	7800
ST0303	3	195	125	60	380	3.2	Color Box	46x26.5x22.5	8	26	5400
ST0403	4	195	125	60	380	3.2	Color Box	46x26.5x22.5	8	26	5400
ST0503	5	197	125	60	382	4.1	Color Box	38x27.5x22.5	6	25	4200
ST0603	6	197	125	60	382	4.1	Color Box	38x27.5x22.5	6	25	4200
ST0803	8	205	125	60	390	4.9	Color Box	29.5x27.5x22.5	4	20	3340
ST1003	10	205	125	60	390	5.6	Color Box	30.5x29.5x24	4	23	3000
ST1203	12	215	125	60	400	6.5	Color Box	30.5x16.5x24	2	13.5	2500
ST1503	15	225	140	60	425	7.8	Color Box	31.5x17x24.5	2	16	2250
ST1603	16	225	140	60	425	7.8	Color Box	31.5x17x24.5	2	16	2250
ST2003	20	244	145	60	449	10.2	Color Box	34.5x19.5x27	2	21	1500
ST3003	30	285	180	/	465	14	Color Box	37.5x19.5x31	2	28.5	1060
ST3203	32	285	180	/	465	14	Color Box	37.5x19.5x31	2	28.5	1060
ST5003	50	300	180	/	480	29.5	Carton	26x24x33	1	30	540

Notes:
1.When the vehicle is jacked up,do not open the engine,because the engine vibrates and the weels of cars turned easy to cause the jack slide down.
2.Before operating the jack, find a fixed position.
Operating Instruction
1.Before operating,estimate the weight of the load,Do not overload the jack beyond its rated load.
2.Select point of action according to the gravitational center place the jack on the hard ground if necessary,place a hard plank under the jack so as to avoid tottering or falling during operation.
3.Before operating the jacks,first,insert the notched end of the handle.into the release valve.Turn the operating handle clock wise until release value is closed.Do not over tighten the value.
4.Insert operating handle into the socket and the ram is steadily raised by the up and down movement of the handle and the load is raised.the ram will stop rising when the required height is reached.
5.Lower the ram by turning the release valve.Counterclockwise with the notched end slacken it slowly when a load is applied,or accidents can occur.
6.When more than one jack is used at the same time it is important to operate the different jacks at an equal speed with equal load.Otherwise,there is danger of falling the entire fixture.
7.Violent shocks must be avoided during the operation.
8.User must operate the jack correctly according to operating instruction:If the jacks has some quality problems,it can not be operated.
Our factory is founded in Jiaxing city in 2004, our company is a special enterprise integrating research, design, developement and specialize in and manufacturing Hydraulic bottle jack, floor jack, long floor jack, air bottle jack, portable hydraulic equipment, jack stand, vehicle positioning jack, shop crane, load leveler, motorcycle lift, shop press, hydraulic shop press, etc

---
