Passive Two Wire PWM Signal to 4-20mA Signal Converters

Product Details

Product Description

Product Description
Passive Two Wire PWM Signal to 4-20mA Signal Converters
Features:
1. Unique loop-powered technique used, external power supply is not required.
2. PWM pulse width signal input, 4-20mA loop powered output type.
3. 10Hz--50kHz PWM signal input, high sensitivity, fast response.
4. High linearity in full measuring range, non-linearity<0.2%
5. 3kV isolation between input and output.
6. Extra small size 22x11x9mm, error grade: 0.1, 0.2, 0.5
7. SIP 8-Pin PCB-mounting, UL94V-O flame-retardant package.
8. High anti-interference ability on EMC magnetic interference or high frequency signal.
9. Industrial operating temperature range: -40--+85Cel. deg.
Applications:
1. PMW signal long-distance transmission, isolated conversion.
2. PLC and Inverter control in industrial site.
3. Signal Ground wire anti-interference.
4. Boiler temperature automatic control.
5. DA Converter designed on the basis of PWM.
6. Processing control and automatic equipment
7. PWM to 2-wire 4-20mA signal isolated control, 1-channel input 1-channel output or 2-in 2-out isolated conversion.
Specification:

Item	Passive Two Wire PWM Signal to 4-20mA Signal Converters
Model No.	ISO D-O1
Input	10Hz-99Hz, 100Hz-0.9KHz, 1KHz-9KHz, 10KHz-19KHz, 20KHz-50KHz
Output	4-20mA
Power supply	Powered by current loop
Isolation voltage	3KVDC isolation between input and output
Package	Sip 8
Optional package type	DIN rail mounted type

Optional package:

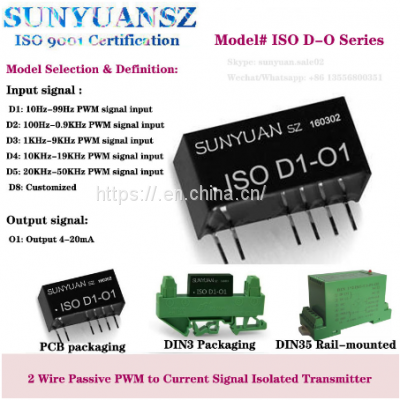

Model Selection:
