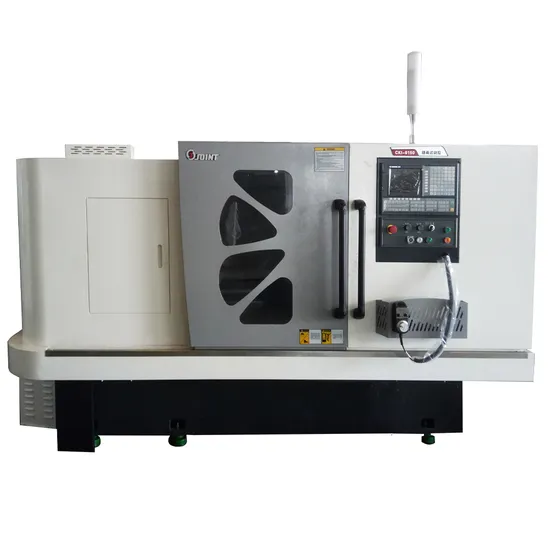

Ck-6150 High Precision Flat Bed Lathe Fanuc CNC Machine Price List

Product Description

Product Introduction: This series of lathe machine is suitabloe for processing axis part, arcs, thread, cone and the face of inner and outer of rotating bodies. CKI-6150 model and the above models can achieve and satisfy heavy duty cutting requirements
Product features: 1. Horizontal guideway structure, resin sand casting, high rigidity; Guide rail quenching and fine grinding, high precision, durability. 2. Integral gear box type large aperture spindle single, three support, high rigidity structure, suitable for heavy cutting. 3. Spindle inverter or servo type, can achieve constant linear speed turning. 4.High speed spindle, precision structure design, integral gear box type large aperture spindle unit can be selected, three supports, high rigid structure, suitable for heavy cutting 5. The spnidlebox gear set and spindle of 6150 and above models are subject to fine grinding, with low noise
Product details: 1. Spindlebox: High speed, maintenance free independent spindle
2. Tailstock: Lengthened and integrated tailstock
3. Bed: Integral casting for and an base
4. Bed saddle/slide: Widen, thickening, integral casting.
Product specifications:

Item	Unit	CK-6150
Max swing over bed	mm	500
Max turning diameter on carriage	(mm)	290
Max processing length	(mm)	850/1350/1850
Z axis guide way span	mm	390
Spindle nose type		A2-8
Spindle motor rate	kw	7.5
Spindle speed range	rpm	45-260/140-800/280-1600
Spindle hole diameter	mm	Ø56/Ø87
Spindle box speed change structure	mm	manual three-speed frequency conversion
X axis max travel	mm	295
Z axis max travel	mm	1000/1500/2000
Tool post		4-Station Vertical Type
Manual chuck and through hole	mm	Ø250(Ø80)
X axis rapid movement	mm/min	4
Z axis rapid movement	mm/min	8
Quill diameter	mm	Ø75
Quill stroke	mm	120
Tailstock quill taper	mm	MT- #5
Positioning accuracy	mm/m	0.01
Top distance	mm	1000/1500/2000
Dimension (L*W*H)	mm	2800/3300/3800*1600*1700
Weight	Kg	3100/3500/3900

Standard accessories:

1. GSK TC3 control system; 7.5kw inverter speed spindle motor
2. Spindle three speed manual gearbox transmission; Ø82 spindle hole diameter
3. 4 positions tool turret
4. tool and toolbox
5. leveling pad
6. Ø250 manual 3-jaw chuck
7. Fully closed cover
8. Auto lubrication system
9. Cooling system
10. Hand unit
11. Working light
12. Manual tailstock
13. Technical documents

Optional accessories:

1. 6 positions tool turret
2. Hydraulic tailstock
3. Manual solid chuck change to solid hydraulic chuk
4. Solid hydraulic chuck change to hollow hydraulic chuck
5. FANUC system
6. SYNTEC control system
Package:

Company Information:
Shenzhen Joint Technology CO.,LTD., was established in 1995. One of our headquarters is located in PingHu town, Shenzhen City ,Guangdong province ,China, we are dedicating to research and development, production, sale, and service of mold processing machine tools and specialized machine tool equipments for machine work of excellent quality for more than two decades.
There are eight series of products-high speed turret milling machine, precision surface grinding machine, EDM machine tool, CNC milling machine, NC milling machine, Gantry type machine center, CNC engraving machine, and CNC lathe machine
Our own brand "JOINT " Has been the top quality machine's signal in domestic sales, JOINT also has been recognized as " GUANGDONG Famous Brand ", and milling machine was recognized as " TOP 10 Famous Brand of Milling machine " in China. Our product had been exporting to Europe, South America, Southeast Asia, the middle east etc, and enjoyed a good reputation there, Welcome your visit !

---
