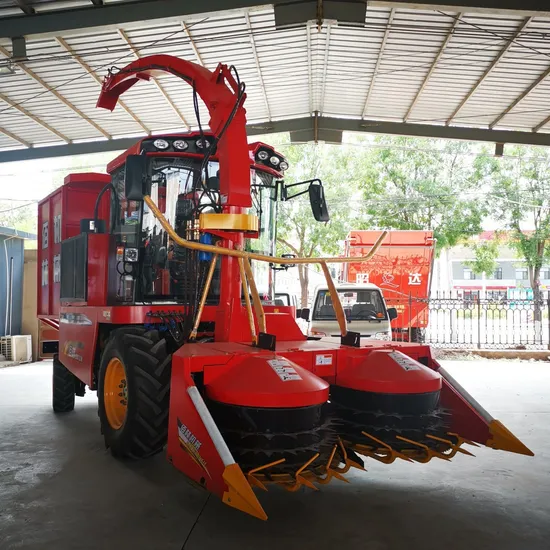

Corn Combine Harvester with Champion′s Disc Technique Vertical Cutting Platform

Product Description

QSZ 2400 Combine Harvester Farm Machinery
1. Features: Using the Germany champion's disc technique vertical cutting platform, working width 2.2meters The engine by Chinese famous Weichai engine, output power of 210 horsepower, reliable quality, fuel consumption is small; Free switching between 4WD walking and 2WD walking modes, improve the machine environment adaptability. Adopt the operating system of electro-hydraulic control and CVT, electronic header, which is convenient for driver to operate; Cast spout is in the way of rotating turbine, can be controlled wirelessly and remotely by handle; Large capacity dump hopper, easy for the car-following operation; Adjust the cutting length of the materials in multi-polar.The unique grain crushing and scrubbing device, straw rubbing rate is more than 95%, grain crushing rate is more than 90%. 2.Main Technical Parameter:

Items	Parameters
Operation way	Auto-run unleveled harvest
Cutting table type	vertical cylinder
Operation Range	2200mm
Operation speed	≤6km/h
Efficiency	20-60T/h
Cutting Length	1.5-15mm(adjustable)
Loss rate	≤3%
Min cutting height	≤150mm
Engine Power	140kw(190hp)
Wheel base	2600mm
Driving tyres	13.6-24
Driving type	hydraulic
Dimension	6600*2340*4730mm
Overall weight	5900kg

Company Profile
Founded in 1999, Shandong Yineng Heavy Industry Co., Ltd is a large-scale construction and agricultural equipment manufacturing enterprise integrating R&D, production and sales. The company has more than 400 employees, 8 senior engineers and 12 professional technicians. The products cover wheel loaders, underground mining machine, grass grabber, off-road forklift and etc, with 7 series, more than 100 models and equipment in total. Yineng has passed the ISO9001:2000 international quality management system certification and assessment of State Engineering Machinery Quality Supervision & Testing Center.
The company has been invited to participate in large-scale international exhibitions such as the Canton Fair, the Hanover Agricultural Machinery Exhibition in Germany, and the Bauma Fair for more than ten years. With first-class technical standards, top-notch manufacturing processes and personalized customization services, Yineng has established a broad customer network around the world, with customers all over Germany, Russia, Brazil, Saudi Arabia, Australia, Thailand, South Africa, etc. More than 40 Many countries and regions.

---
