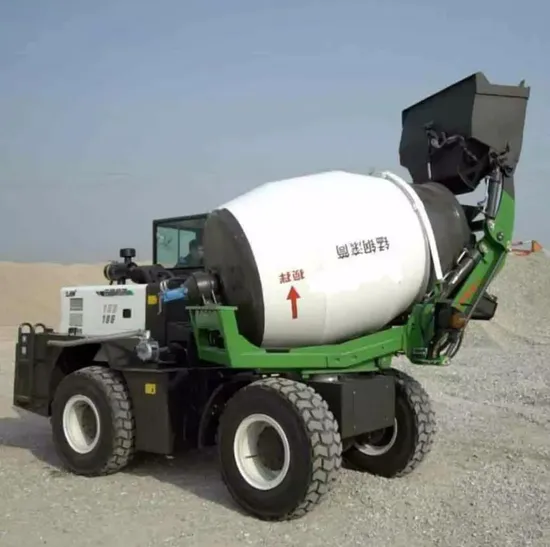

SELF-LOADING CONCRETE MIXER
| OM1500
| OM2500
| OM3000
| OM4000
|
TYPE
| Integral frame chassis movable, self loading, mixing, transporting
| Integral frame chassis movable, self loading, mixing, transporting
| Integral frame chassis movable, self loading, mixing, transporting
| Integral frame chassis movable, self loading, mixing, transporting
|
PRODUCTIVITY
| BATCH≤15MINS, 4BATCHS/HOUR
| BATCH≤15MINS, 4BATCHS/HOUR
| BATCH≤15MINS, 4BATCHS/HOUR
| BATCH≤15MINS, 4BATCHS/HOUR
|
DRIVE
| 4 x 4
| 4 x 4
| 4 x 4
| 4 x 4
|
STEERING
| Front steering
| Front steering
| Front steering
| Front steering
|
ENGINE
| YUNNEI ENGINE: FOUR-CYLINDER 2200RPM,58KW
| YUNNEI ENGINE: FOUR-CYLINDER 2200RPM,76KW
| YUCHAI ENGINE: FOUR-CYLINDER 2200RPM,85KW
| YUNNEI ENGINE: FOUR-CYLINDER 2200RPM,92KW
|
SPEED
| HIGH SPEED: 30KM/H; LOW SPEE:4KM/H
| HIGH SPEED: 32.5KM/H; LOW SPEE:5.5KM/H
| HIGH SPEED: 36.5KM/H; LOW SPEE:6.5KM/H
| HIGH SPEED: 36.5KM/H; LOW SPEE:6.5KM/H
|
GEAR NUMBER
| Three forwards, three backwards
| Three forwards, three backwards
| Three forwards, three backwards
| Three forwards, three backwards
|
TIRE
| 23.5-16 (Steel wire tyre)
| 23.5-16 (Steel wire tyre)
| 16/70-20 (Steel wire tyre)
| 16/70-20 (Steel wire tyre)
|
DRUM
| Geometric volume 2.2 cubic meters, the best stirring 1.2-1.5 cubic meters
| Geometric volume 3.6 cubic meters, the best stirring 2.2-2.5 cubic meters
| Geometric volume 4.2 cubic meters, the best stirring 2.6-3 cubic meters
| Geometric volume 5.5 cubic meters, the best stirring 3.5-4 cubic meters
|
MIXING DRUM 270°DISCHARGES
| The tank rotates horizontally to 270 degrees.There is no dead Angle for discharging around the vehicle
| The tank rotates horizontally to 270 degrees.There is no dead Angle for discharging around the vehicle
| The tank rotates horizontally to 270 degrees.There is no dead Angle for discharging around the vehicle
| The tank rotates horizontally to 270 degrees.There is no dead Angle for discharging around the vehicle
|
SHOVEL
| shovel capacity: 0.35³
| shovel capacity: 0.35³
| shovel capacity: 0.35³
| shovel capacity: 0.55³
|
BUCKET DISCHARGE SWITCH
| Hydraulic gate, electric control
| Hydraulic gate, electric control
| Hydraulic gate, electric control
| Hydraulic gate, electric control
|
OPERATION HANDLE
| ELECTRIC CONTROL BUTTON FOUR-WAY GUIDE HANDLE
| ELECTRIC CONTROL BUTTON FOUR-WAY GUIDE HANDLE
| ELECTRIC CONTROL BUTTON FOUR-WAY GUIDE HANDLE
| ELECTRIC CONTROL BUTTON FOUR-WAY GUIDE HANDLE
|
WATER SUPPLY
| HYDRAULIC DRIVING SELF-PRIMIING PUMPS.
| HYDRAULIC DRIVING SELF-PRIMIING PUMPS.
| HYDRAULIC DRIVING SELF-PRIMIING PUMPS.
| HYDRAULIC DRIVING SELF-PRIMIING PUMPS.
|
WATER TANK CAPACITY
| 240L
| 370L
| 370L
| 520L
|
DIESEL TANK CAPACITY
| 110L
| 180L
| 180L
| 180L
|
WHOLE WEIGHT
| COMPLETE VEHICLE KERB MASS 5600kg
| 6600KG
| 6800KG
| 7600KG
|
