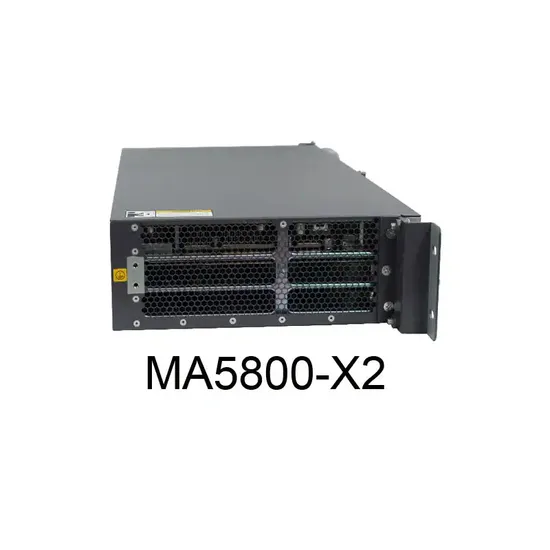

Huawei Smartax Ma5800-X2 Gpon Xg-Pon Xgs-Pon Mini 2u Olt

Product Description

Huawei SmartAX MA5800-X2 GPON XG-PON XGS-PON mini 2U OLT Product Description The industry's first 40 Gbit/s-capacity Next-Generation Optical Line Terminal (NG-OLT). Huawei's SmartAX MA5800 multiple-service access module employs a distributed architecture to support ultra-broadband, Fixed Mobile Convergence (FMC) services, and smart capabilities, such as SDN-based virtualization.

MA5800's programmable Network Processor (NP) chip set accelerates the roll-out of new services, catering to the demand for differentiated services, including partitioning of wholesale and retail service providers.
Product Features
Large-capacity platform with Access and Aggregation Integration Developed based on the iMAP hardware platform and the IAS software platform of Huawei, the MA5600T series product takes on the advanced architecture and design. The switching capacity of the backplane is up to 3.2 Tbit/s, and the bidirectional switching capacity of the control board is up to 480 Gbit/s. High density GE/10GE interfaces for cascading, up to 36*10GE or 384*GE interfaces, no need for additional investment of aggregation switches. Each GPBD board supports eight GPON ports, based on the 1:128 split ratio, the single subrack supports up to 8K ONTs. In 2012, Huawei will launch 16-port GPON board which can supports 16K ONTs. Sharing the development platform with Huawei's broadband access devices, the MA5600T series product support the Layer 2 and Layer 3 features of the broadband access devices to provide user-oriented and future-oriented functions. GE/GPON/NGPON coexisting on the same platform. Aggregation switches. Any Access Large capacity IPTV service provision, 8K multicast users and 4K multicast channels and 2k concurrent multicast channels. HQoS support 3-level QoS (Different ISP/ service/user) guarantees OLT wholesale. Traditional E1 service access, Native TDM or CESoP for traditional E1 service of enterprise and mobile base station access. E-LAN function for local traffic inter-connection, meet the requirements of enterprise and campus network. Powerful integrated GPON access capability Supports high bandwidth. The downstream rate is up to 2.488 Gbit/s and the upstream rate is up to 1.244 Gbit/s. Supports long distance. The maximum physical transmission distance of the ONT is 60 km. The physical distance between the farthest ONT and the nearest ONT can be up to 20 km. Supports high split ratio. The 8-port GPON board supports 1:128 split ratio, which increases the access capacity and saves the optical fiber resources. Support high density. The MA5600T series provides the 8-port and 16-port GPON board to increase the system capacity. Comprehensive security features 1. System security measure Protection against the DoS (denial of service) attack. MAC (media access control) address filtering. Anti-ICMP/IP packet attack. Source address routing filtering. Blacklist. 2. User security measure DHCP (Dynamic Host Configuration Protocol) Option 82 to enhance the DHCP security. Binding between MAC/IP addresses and ports. Anti-MAC spoofing and anti-IP spoofing. Authentication based on the serial number (SN) and password of the ONU/ONT. Triple churning encryption. Encrypted broadcast transmission in the GPON downstream direction for different users, such as AES (advanced encryption standard) 128-bit encryption. GPON type B OLT dual homing. Smart link and monitor link for the network with dual upstream channels. High reliability design Adopts 1+1 redundancy backup for the control board and the upstream interface board. Provides the lightning-proof and anti-interference functions. Supports fault pre-warning on the exhaustive (consumed) units and parts, such as the fan, power supply, and battery. The 1+1 (type B) protection for the PON port and the 300 ms level service protection switchover for the backbone optical fiber are supported. Supports main control board in-service upgrade . Supports high temperature detection to ensure the system safety. The functions of querying the board temperature, setting the temperature threshold, and high temperature shutdown are supported. Supports hot swappable for all service boards and the control boards. Provides soft-start circuit, protective circuit, current-limit protection, and short circuit protection for the input power of the boards in the subrack to protect the boards against lightning strikes and surges. Supports GPON type C OLT dual homing. Supports smart link and monitor link for the network with dual upstream channels. Green With Huawei self-developed GPON chipsets, the maximum power consumption of the 8-port GPON line card is only 51W. Unique energy-saving bus, the idle service card can be powered off. Product Application Optical communication systems, FTTx, optical fiber CATV, optical fiber sensors.

Detailed Photos
Mechanical parameters:

Item	MA5800-X17	MA5800-X15	MA5800-X7	MA5800-X2
Dimensions (W x D x H)	493 mm x 287 mm x 486 mm	442 mm x 287 mm x 486 mm	442 mm x 268.7 mm x 263.9 mm	442 mm x 268.7 mm x 88.1 mm
Maximum Number of Ports in a Subrack	272 x GPON/EPON 816 x GE/FE 136 x 10G GPON/10G EPON 136 x 10G GE 544 x E1	240 x GPON/EPON 720 x GE/FE 120 x 10G GPON/10G EPON 120 x 10G GE 480 x E1	112 x GPON/EPON 336 x GE/FE 56 x 10G GPON/10G EPON 56 x 10G GE 224 x E1	32 x GPON/EPON 96 x GE/FE 16 x 10G GPON/10G EPON 16 x 10G GE 64 x E1
Switching Capacity of the System	7 Tbit/s			480 Gbit/s
Ambient Temperature	-40°C to 65°C* *: The MA5800 can start up at a lowest temperature of -25°C and run at -40°C. The 65°C temperature refers to the highest temperature measured at the air intake vent
Working Voltage Range	-38.4V DC to -72V DC			DC power supply: -38.4V to -72V AC power supply: 100V to 240V
Layer 2 Features	VLAN + MAC forwarding, SVLAN + CVLAN forwarding, PPPoE+, and DHCP option82
Layer 3 Features	Static route, RIP/RIPng, OSPF/OSPFv3, IS-IS, BGP/BGP4+, ARP, DHCP relay, and VRF
MPLS & PWE3	MPLS LDP, MPLS RSVP-TE, MPLS OAM, MPLS BGP IP VPN, tunnel protection switching, TDM/ETH PWE3, and PW protection switching
IPv6	IPv4/IPv6 dual stack, IPv6 L2 and L3 forwarding, and DHCPv6 relay
Multicast	IGMP v2/v3, IGMP proxy/snooping, MLD v1/v2, MLD Proxy/Snooping, and VLAN-based IPTV multicast
QoS	Traffic classification, priority processing, trTCM-based traffic policing, WRED, traffic shaping, HqoS, PQ/WRR/PQ + WRR, and ACL
System Reliability	GPON type B/type C protection, 10G GPON type B protection, BFD, ERPS (G.8032), MSTP, intra-board and inter-board LAG, In-Service Software Upgrade (ISSU) of the control board, 2 control boards and 2 power boards for redundancy protection, in-service board fault detection and rectification, and service overload control

Packaging & Shipping
Customer Feedbacks
FAQ Q1.What is your delivery time?
A: Generally,it will take 3 to 15 days after receiving your deposit.The specific
delivery time depends on the items and quantity of your order.
Q2.Can you produce according to the samples or drawing?
A: Yes,we can produce by your samples or technical drawings.We also can
design and build the molds for you.
Q3.What is your sample policy?
A: We can supply free sample of common fiber optics, but customers have to
pay courier cost and in massive order, we return the sample cost.
Q4. Do you test all your goods before delivery?
A: Yes, all goods are 100% test before delivery.
Q5.How do you assure long term business and keep good relationship?
A:1.We keep persistent improvement to make nice quality and unique products
with competitive price to ensure our customers' benefit.
2.We keep mutual benefit for customers who have supported our company!

---
