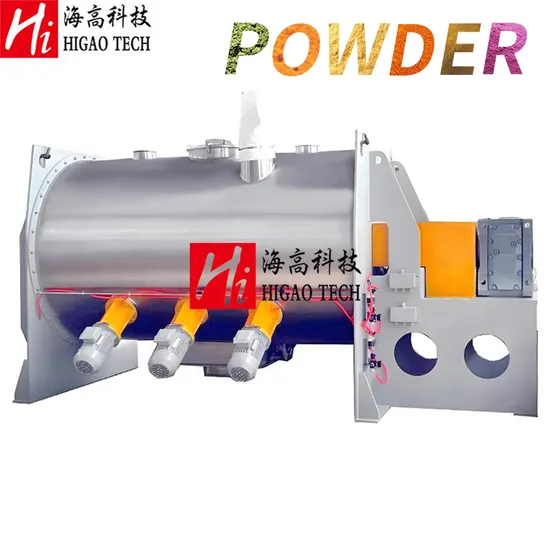

Horizontal Plough Plow Shear Mixer Detergent Washing Dry Powder Mixer Machine with Jacket for Vacuum Drying

Product Description

Product Description 1. Introduction:
Ploughshare mixer with oil spray system is used to mix dry powder, granules, low fibrous materials and mix paste with low viscosity, and spray liquid together.
2. Principle and features:
Ploughshares are set on the blending shaft. When plough shear mixer works, the ploughshares will make lengthwise movement at radial direction simultaneously. Its special structure leads the materials to be continuously mixed.
Meanwhile materials is scattered by the high speed shear cutters continuously installed on the side of the mixing barrel, finally materials will do three-dimensional movement under several types of force, which avoids dead corner and ensures high accurate mixing effect.
Applications of the plough mixer :
(1) Industrial Powder: Putty powder, Lime powder, Concrete powder, etc.
(2) Pharmaceutical Powder: Coarse powder, Baiyao powder, etc.
(3) Food Powder: Milk powder, Papaya powder, Chocolate powder, Potato flour, etc.
(4) Paint Powder: Polyethylene coating powder, Polyurethane coating powder, Epoxy coating powder, Decorative coating powder, etc.

PM Series Ploughshare Mixer of HIGAO TECH
Model	Total volume	Loading volume	Capacity	Loading coefficient	Mixing time	Motor/speed	Chopper/speed	Dimension(L×W×H)	Weight
PM-100	100L	50L	50kg	40~60%	0~999Min	3kw/120rpm	1.1kw/1440rpm	1200×760×790mm	400kg
PM-200	200L	100L	100kg	40~60%	0~999Min	4kw/90rpm	1.1kw/1440rpm	2100×650×980mm	550kg
PM-300	300L	180L	200kg	40~60%	0~999Min	5.5kw/81rpm	1.5kw/1440rpm	2300×700×880mm	750kg
PM-500	500L	300L	300kg	40~60%	0~999Min	7.5kw/80rpm	1.5kw/1440rpm	2700×800×1240mm	800kg
PM-1M3	1M3	0.6M3	600kg	40~60%	0~999Min	11kw/67rpm	1.5kw/1440rpm	3200×1100×1400mm	1200kg
PM-2M3	2M3	1.2M3	1200kg	40~60%	0~999Min	15kw/65rpm	1.5kw/1440rpm	3900×1250×1650mm	2500kg
PM-3M3	3M3	1.8M3	1800kg	40~60%	0~999Min	22kw/42rpm	3kw/1440rpm	4500×1350×1700mm	3000kg
PM-4M3	4M3	2.4M3	2500kg	40~60%	0~999Min	22kw/42rpm	3kw/1440rpm	5000×1450×2000mm	4500kg
PM-5M3	5M3	3M3	3000kg	40~60%	0~999Min	30kw/37rpm	4kw/1440rpm	5300×1600×2100mm	5500kg
PM-6M3	6M3	3.6M3	3600kg	40~60%	0~999Min	37kw/37rpm	4kw/1440rpm	5600×1620×2200mm	6500kg
PM-8M3	8M3	4.8M3	4800kg	40~60%	0~999Min	45kw/31rpm	4kw/1440rpm	5100×1750×2500mm	8000kg
PM-10M3	10M3	6M3	6000kg	40~60%	0~999Min	55kw/31rpm	5.5kw/1440rpm	5650×1800×2650mm	9000kg
PM-12M3	12M3	7.2M3	7200kg	40~60%	0~999Min	55kw/27rpm	5.5kw/1440rpm	5680×1800×2650mm	11500kg
PM-15M3	15M3	9M3	9000kg	40~60%	0~999Min	75kw/27rpm	5.5kw/1440rpm	5850×2000×2900mm	13000kg
PM-20M3	20M3	12M3	12000kg	40~60%	0~999Min	90kw/23rpm	7.5kw/1440rpm	6100×2400×3160mm	16000kg
PM-30M3	30M3	18M3	15000kg	40~60%	0~999Min	110kw/23rpm	7.5kw/1440rpm	6250×2550×3350mm	21000kg

Related Products Click on this link to view more products.
Application
Company Profile
What we provide:
Higao Tech Provide professional grinding pulverizer machines, powder mixing machines, vibrating screening machines, granulating machines, drying equipment, conveying equipment, puffed snack food production line, food snacks processing equipment, scrap rubber tire recycle equipment, waste tire recycling rubber powder production plant, rubber crumb recycling equipment, nutritional breakfast producing line, various customized turnkey systems, powder engineering turnkey system projects used in food, pharmaceutical, chemical, tire recycle, plastic, mineral, ceramic industries, etc.
Packaging & Shipping
FAQ 1. How can I know your quality?
Our company is famuous in our industry. We have more than 20 years history. The best way to know the quality is comparison. You can come to our factory for on-the-spot investigation. You are welcome.
2. Can you supply sample test?
Of course our company can supply sample test before buying. And record the testing result and send to you by pictures or video.
3. What is your delivery time if I place order?
Usually 30~60 days. It depends on the machine itself, our actual order status.
4. Can you supply installation and commissioning service abroad when we received our equipment?
Yes, our company can send our engineers to your local workshop to guide installation and commissioning and training your operators.
5. How to operate and maintain the machine?
We will give you operation manual, drawing, circuit diagram spare parts list, etc after shipping.
6. What should I do if we can not solve the problems some times?
You just need to send email or make a call to us. We will reply within 12 hours and analyse the problems with you. Find the reason and find the way.
If we can not solve by communication after trying several ways, we can send our engineer to your place if you need.
7. What is your warranty period?
We supply one year warranty and life time after sales service for our euqipment.
