High-Precision Grinding with Grading Function Jet Mill

Product Description

Product Description

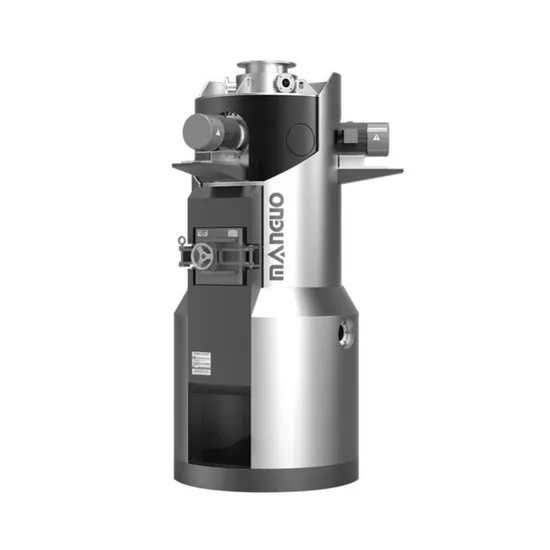

High-Precision Grinding With Grading Function Jet Mill

The high pressure gas (air, nitrogen, other inert gases, etc.) is accelerated into a supersonic flow through the Laval nozzle and then sprayed into the crushing area to form a high speed flow field. The material particles entering the crushing zone are driven by the high speed flow field to collide with each other and crush. The crushed material is conveyed to the grading area by the rising airflow. Under the action of the high-speed rotating grading wheel, the coarse powder which does not reach the particle size requirement returns to the crushing area under the action of centrifugal force and gravity and continues to be crushed. The qualified fine powder passes through the grading wheel with the airflow and enters the high-efficiency cyclone separator to be collected. The separated dust-containing gas is filtered by the dust collector and discharged into the atmosphere or compressed again into a high-pressure gas for closed-circuit recycling after filtration.
· Design Highlights


Packaging & Shipping
Company Profile

The company specializes in a wide range of products. It mainly produces plough dryer, vibrating dryer, pot drying machine, spiral belt cooling/mixer, synthesis reaction kettle, washing/coating kettle, vibrating conveyor, silo, storage tank type and related auxiliary equipment. Our products are widely used in the dosing, washing, drying, cooling and transport system of high nickel ternary wet cladding line.

---
