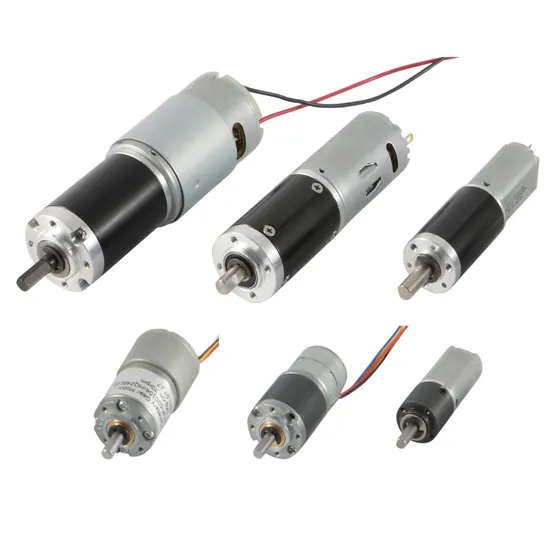

6V 12V 24V Planetary DC Brushless Brush Gear Motor with Multi-Stage Gearbox

Product Description

6V 12V 24V Planetary DC Brushless Brush Gear Motor with Multi-Stage GearboxProduct Description
Parameter:
Gearbox Type: Planetary Gearbox with Straight Teeth
Gear Ratio:1/5~1:1/721 Customize
Matched Motor : Brushless DC Motor ,brush dc motor
Reducer Dia.: 16mm, 22mm,33mm, 28mm, 36mm, 40mm
Application: electric opening and closing awnings, Automatic Shutter
Drawing:
16mm
22mm
28mm
32mm
36mm
42mm
Specification:
DC Motor + Gearbox Specifications
16mm

Reduction ratio	1/4	1/14	1/16	1/19		1/29	1/53	1/62	1/72		1/84	1/104	1/128	1/157		1/231	1/316	1/370	1/455		1/561	1/690	1/1014
12V	Rated torque(g.cm)	21	60	70	82		120	193	220	260		300	380	460	550		700	950	1100	1350		1700	2000	2400
	Rated speed(rpm)	1330	430	377	315		205	117	100	85		73	59	48	39		26	19	16	13.5		11	8.9	6
24V	Rated torque(g.cm)	31	85	103	120		180	284	330	380		450	560	690	850		1000	1400	1600	2000		2000	2400	2400
	Rated speed(rpm)	2400	760	669	555		365	208	170	150		130	105	85	69		47	34	29	24		19.5	15.9	11
	Rotation direction	CW
	Length(L-mm)	15.05				18.7					22.35					26					29.65

22mm

Reduction ratio	1/4	1/14	1/16	1/19	1/53	1/62	1/72	1/84	1/104	1/198	1/231	1/270	1/316	1/370	1/455	1/742	1/1014	1/1249	1/1621
12V	Rated torque(g.cm)	77	215	250	295	695	810	950	1100	1370	2100	2500	2500	2500	2500	2500	3000	3000	3000	3000
	Rated speed(rpm)	1450	470	405	348	127	109	93	79	64	34	29	25	22	19	15.5	9.5	7.4	6	4.6
24V	Rated torque(g.cm)	77	215	250	295	695	810	950	1100	1370	2100	2500	2500	2500	2500	2500	3000	3000	3000	3000
	Rated speed(rpm)	1600	515	450	384	140	120	103	88	71	37	32	28	23.5	21	17.5	10.5	8	6.6	5
	Rotationdirection	CCW
	Length(L-mm)	14.4	18.05			21.7					25.35						29

28mm

Reduction ratio	1/5	1/14	1/19	1/27	1/35	1/51	1/71	1/100	1/139	1/189	1/264	1/516	1/721	1/939
12V	Rated torque(Kg.cm)	0.32	0.75	1	1.4	1.9	2.4	3.3	4.7	6.6	7.4	10	10	10	10
	Rated speed(rpm)	1000	375	270	193	148	102	73	52	37.3	27.5	19.7	10.5	7.5	5.7
24V	Rated torque(Kg.cm)	0.38	0.9	1.2	1.7	2.3	2.8	4	5.6	7.8	8.8	10	10	10	10
	Rated speed(rpm)	990	370	265	191	147	101	72	51.5	36.9	27.2	19.3	10.4	7.4	5.7
	Rotation direction	CCW
	Length(L-mm)	24.5	30.9				37.3				43.7

32mm

	Reduction ratio	1/5	1/14	1/19	1/27	1/51	1/71	1/100	1/139	1/189	1/264	1/516	1/721
12V	Rated torque(Kg.cm)	1.0	2.4	3.3	4.7	7.6	8	10	10	12	12	12	12
	Rated speed(rpm)	950	359	257	183	97	71.5	52	39	29	21	11	8
24V	Rated torque(Kg.cm)	1.0	2.3	3.2	4.5	7.3	8	10	10	12	12	12	12
	Rated speed(rpm)	990	375	268	192	101	74.5	54	40	29.5	22	11.5	8
	Rotation direction	CCW
	Length(L-mm)	22.1	28.5			34.9				41.3

36mm

Reduction ratio	1/5	1/14	1/19	1/27	1/35	1/51	1/71	1/100	1/139	1/189	1/264	1/516	1/721	1/939
12V	Rated torque(Kg.cm)	0.32	0.75	1	1.4	1.9	2.4	3.3	4.7	6.6	7.4	10	10	10	10
	Rated speed(rpm)	1000	375	270	193	148	102	73	52	37.3	27.5	19.7	10.5	7.5	5.7
24V	Rated torque(Kg.cm)	0.38	0.9	1.2	1.7	2.3	2.8	4	5.6	7.8	8.8	10	10	10	10
	Rated speed(rpm)	990	370	265	191	147	101	72	51.5	36.9	27.2	19.3	10.4	7.4	5.7
	Rotation direction	CCW
	Length(L-mm)	24.5	30.9				37.3				43.7

DC Motor Specifications

Rated volt(V)	Rated torque(g.cm)	Rated speed(rpm)	Rated current(mA)	No load speed(rpm)	No load current(mA)	Weight(g)
12	250	4930	<=1600	6000	<=250	220
24	240	5150	<=750	6000	<=130	220

The above information is just for your information. We can customize specification and size as your requirement.
Company Profile
PROFESSIONAL MOTOR MANUFACTURERFounded in 2006, I.CH is a professional Micro Metal Gear Motor factory over 16years. We have worked with over 50 countries' customers arround world. We have over 20 patents in gearbox field.We focus on the development of planetary gearbox and matched different type of motors, such as DC brush motor, Brushless DC Motor, Stepper Motor and Servo Motor. Custom Service for micro gear motor with encoder and dual shaft in special specification, The light weight with high torque and low speed is widely used in a variety of industrial, home application and hobby appliance.16+Experience50+Countrie's Customers 20+ Patents 1000+ Factory Area
Other Gear Motor Series
Certifications
UL CE ROHS and ISO9000
Factory Ability

Customer Visiting
Welcom to visit our factory
Work Flow:
Packaging & Shipping
-Crate, carton or pallet;
-Shipping method: air shipping, sea shipping or express;
-Delivery time: 20-50 working days.
Related Products
Related Products:

Planetary Gear Motor	Brush DC Gear Motor	Stepper Gear Motor

FAQ
Q: Can you make the Gearbox or Planetary Gearbox with custom specifications?
A: YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience.
Q: Do you provide the samples of DC Geared Motor?
A: YES. Our company can provide the samples to you, and the delivery time is about 5-15days according to the specification of gearbox you need.
Q: What voltage can you supply?
A: 6V, 12V, 24V or we can customized voltage.
Q: Do you have the item in stock?
A: I am sorry we do not have the item in stock, All products are made with orders.
Q: Do you provide technology support?
A: YES. Our company have strong R&D capability, we can provide technology support if you need.
Q: How to select a suitable DC Gear Motor?
A: If you have Gear motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, life time and noise level etc, please do not hesitate to let us know, then we can recommend suitable Geared Motor per your request accordingly.
Q: Do you have customized service for your standard Planetary Gearbox Motors?
A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC, we can make it too.
Q: Can I have samples of Planetary Gearbox for testing first?
A: Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly.
Q: What is application of this 12mm Geared motor?
A: Electronic Lock Motor, Optic Equipment Motor, Micro Mechanism Motor
Q: What does the share bike motor mean?
A: It means this motor is going to be used for shared bicycle, like Ofo, Mobike in China.
Q: What is the 20mm DC Geared Motor going to used for?
A: The 20mm Geared Motor is one kind of small size DC Geared Motors, it can be used as Storage Box Motor, Ad Equipment Motor, Audio Equipment Motor, Electronic Game Machine Motor, please choose motor depends on application size.

---
