Acid-Alkaline Resistant Industrial Zinc Indium Dust Drag Scraper Chain Conveyor

Product Description

Product Description Scraper Chain Conveyor is specially designed for convey high temperature material. The heat resistant steel as the main parts make it handle high temperature big bulk density materials, which the max. temperature can reach to 1200ºC. This model be widely used for boiler slag, pyrite slag, zinc ash, copper smelting dust, steel smelting dust and other high temperature & high grinding materials in metallurgy and chemical industries. The trough width can be 800mm, max capacity is 100m³/h., max conveying distance can be 70m, Installation angle can reach to 35°, also it can be loaded and unloaded on multiple points.

Main Features 1) Simple structure and easy in installation and maintenance.
2) Specially design for convey high temperature material. choose heat resistant steel as the main parts.
3) Can handle high temperature big bulk density materials, which the max. temperature can reach to 1200ºC.
4) Multiple points of load and unload.
5) Improve worker's labor condition notably and prevent environment.
6) Be widely used in in metallurgy and chemical industries. Product Parameters

Technical parameters of Scraper Chain Conveyor
Model	MSR20	MSR25	MSR32	MSR40	MSR50	MSR63	MSR80	MSR100
Trough Width(mm)	200	250	315	400	500	630	800	1000
Load-bearing Depth(mm)	80	100		120	150			160
Chain Speed(m/s)	0.06~0.12		0.08~0.16		0.08~0.16
Capacity(t/h)	3~6	4.5~9	6~13	12.5~18.5	19~38	24~48	30~60	40~75
Max Conveying Length(m)	60			50	45		35	30
Power(kw)	11	11	18.5	5.5~18.5	45	45	45	55

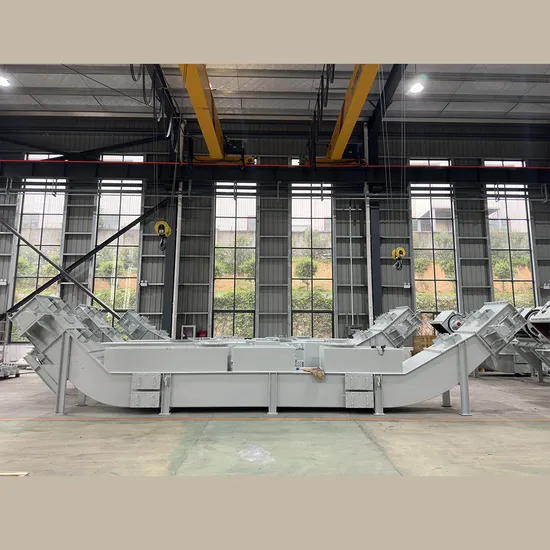

Detailed Photos
Certifications

Company Profile
Customer Visit
FAQ FAQ:
Q: ARE YOU FACTORY?
A:YES, WE ARE FACTORY.
Q: WHAT IS YOUR COMPANY ADDRESS?
A: OUR FACTORY IS LOCATED IN SHILIPU INDUSTRIAL PARK, YIDU CITY, HUBEI PROVINCE, CHINA
Q: WHAT IS YOUR MAIN PRODUCTS?
A: WE MAINLY MANUFACTURING CHAIN CONVEYORS, SCRAPER CONVEYORS, BUCKET ELEVATORS, BELT CONVEYORS, APRON CONVEYORS.
Q: WHAT SERVICE DO YOU OFFER?
A: WE OFFER CUSTOMIZE SERVICE AND OEM SERVICE. EVERY MACHINE COULD BE CUSTOMIZED ACCORDING TO CUSTOMERS' REQUIREMENT.
Q: DO YOU DESIGN CONVEYING SYSTEM?
A: YES. WE COULD DESIGN CONVEYING SYSTEM.
Q: DO YOU HAVE EXPORT EXPERIENCE?
A: YES WE HAVE EXPERIENCE EXPORTING FOR OVER 17 YEARS.
Q: DO YOU HAVE AFTER-SALES SERVICE?
A: DURING THE WARRANTY PERIOD, WE CAN PROVIDE REPAIR OR REPLACEMENT FOR PRODUCTS THAT ARE NOT DAMAGED BY HUMAN FACTORS.

---
