High Quality Nr40 High Abrasion Tear Resistant Natural Rubber Sheet for Mine

Product Description

Product Description

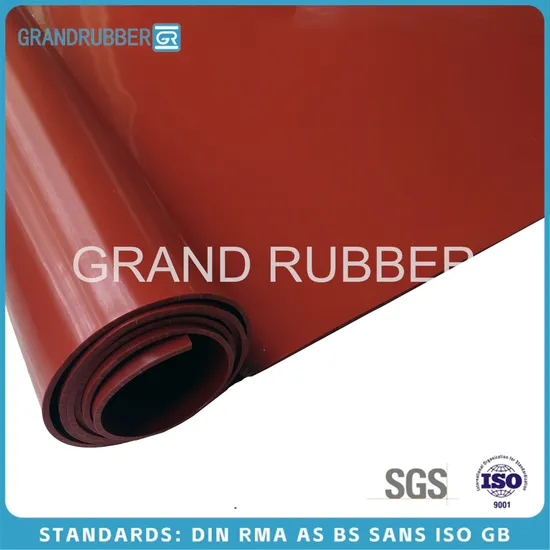

High Tear Resistant NR40 Rubber Sheet
Features
The high tear-resistant NR40 sheet has superior resilience, tensile
strength, tear-resistance and elongation characteristics. Due to
these good physical characteristics, it is widely used as the abrasive rubber lining to resist fine grain size products.
This NR rubber sheet is also cut to different industrial gaskets, sealing
stips and O ring.
Advantage
1. High Tear Resistant, Up to 60 N/mm
2. High Abrasion Resistance at 5N, Less than 60 mm³
3. Reasonable price, Get more for less
Available Size Thickness 1 - 30 mm Width 0.9 - 2 m Length 1 - 20 m
Available Color ▪Red ▪Gray ▪Green ▪Brown ▪Blue▪ Customized
Available Surface ▪ Smooth
▪ Fabric impression
▪ CN bonding layer
Typical Physical Properties

Property	Test Standard	Value
Polymer Type		Natural Rubber
Hardness (Shore A)	ISO 868:2003	40 +/- 5
Tensile strength (Mpa)	ISO 37:2017	≥22
Elongation at break (%)	ISO 37:2017	≥700
Tear Resistance (N/mm)	ISO 34-1:2015	≥60
Abrasion Resistance at 5N (mm³)	ISO 4649:2017	≤60
Density (g/cm³)		1.05 +/- 0.05
Compression Set after 22h at 70ºC (%)	ISO 815-1:2014	≤30
Operating Temperature (ºC)		-40ºC to 80ºC

Aging Test

Property	Test Standard	Value
Hardness change after 168h at 70ºC (Shore A)	ASTM D573-04(10)	≤5
Tensile strength change after 168h at 70ºC (%)	ASTM D573-04(10)	≤-15
Elongation at break change change after 168h at 70ºC (%)	ASTM D573-04(10)	≤-25

Relevated Rubber Sheet Products We Produce
We can produce many kinds of industrial rubber sheet, foodgrade rubber sheet, such as SBR rubber sheet, NBR rubber sheet, CR rubber sheet, NR rubber sheet, anti-static rubber sheet,,ribbed rubber sheet, inserted sheet, cloth impression rubber sheet etc.
Natural Rubber Sheet: High flexibility, good comprehensive physical mechanic performance.
SBR Rubber Sheet: Better wear-resistant and anti-aging function than NR, low prices.
Neoprene Rubber Sheet: Good climate resistant, ozone proof, hot resistance and chemical resistant.
NBR Rubber Sheet: Good oil-resistant, wear-resistant and anti-aging.

SBR	Working Temperature	-30°C-80°C
	Tensile strength	2-8mpa
	Hardness	50-80 Duro
NBR		General Grade	High Grade
	Material Selection	SBR/NBR	Nitrile
	Working Temperature	-30°C-80°C	-30°C-110°C
	Tensile strength	3-8mpa
	Hardness	50-80 Duro
CR		General Grade	High Grade
	Material Selection	SBR/CR	Neoprene
	Working Temperature	-30°C-80°C	-30°C-110°C
	Tensile strength	3-8mpa
	Hardness	50-80 Duro
EPDM		General Grade	High Grade
	Material Selection	SBR/EPDM	EPDM
	Working Temperature	-30°C-80°C	-30°C-110°C
	Tensile strength	3-8mpa
	Hardness	50-80 Duro
Silicone	Working Temperature	-50°C-220°C
	Tensile strength	6-8mpa
	Hardness	60-70 Duro
Insulation	Polymer Content	100% SBR
	Working Temperature	-30°C-100°C
	Proof Voltage	15KV-50KV
	Color	Black, Grey
	Surface	Smooth/ fine rib
Antistatic /ESD	Material	NBR/SBR
	Working Temperature	-30°C-100°C
	Top Layer	107-109Ω
	Bottom Layer	103-105Ω
	Color	Green+black

Research & Development Center
Certifications
We are certified to the ISO 9001:2015 quality management system standard.
We have a professional quality control team. We can provide rubber sheet products that meet different standards according to the needs of customers.
Product certification includes:
REACH compliance, RoHS compliance, ASTM standard, FDA certification, SGS standard, etc.
Company Profile
Packaging & Shipping
FAQ
Q1. Are you a manufacturer?
Yes, we have mainly produced rubber conveyor belts for over 18 years.
Q2. What is your main products?
Multi-ply fabric conveyor belt(EP/NN type), steel cord conveyor belt, chevron conveyor belt, sidewall belt, white conveyor belt, bucket elevator belt, filter belt, and special conveyor belts with the characteristics of heat resistant, cold resistant, oil resistant, flame retardant, abrasion resistant, etc.
Q3. What about the lead time?
1)3--5 days for sample.
2) 20--25 days for mass production. If urgent, we have the green channel.
Q4. Can you send free samples?
Yes, we provide samples for free after inquiry.
Q5. How about the package?
Standard export packing method, your special requirement will be respected.
Q6. What is your Payment terms?
T/T or L/C.
Q7. Can you do door-to-door?
No problem.
Q8. How do you ensure your product quality?
Our quality control system had been IS09001 certified. The first-class production equipment, testing facilities and a complete quality assurance system guarantee the high quality.
Q9. What is your major market?
Our products are heavily involved in exporting all over the world, including Europe, America, Middle East,Southeast Asia, South Africa, Australia, etc.
Q10. What you can do to support me better?
We can provide products that meet quality standards, timely delivery, transportation packaging requirements,and customer' s other special requirements.

---
