Industrial Paper Plastic Shredder Pallet/PE Pipe Single Shaft Shredder

Product Description

Product Description

Model	WPS1000
Main Shaft Length(mm)	1000
Tactical Diameter(mm)	450
Main Shaft Speed(rpm)	78
Ram Travel(mm)	1000
Rotor Blades(pcs)	63/92
Fixed Blades(pcs)	3
Motor Power(kw)	55/75
Hydraulic Power(kw)	4
Screen Mesh Diameter(mm)	30-120
Cutting Chamber Dimension(mm)	1000*1000
Overall Dimension(mm)	2880*2180*2570
Weight(kg)	7000

Single Shaft Shredder/Plastic Shredder/Paper&Sprue&Roll Films Shredder
Shredder with small nibble type ripping teeth on the rotor assembly is one of the new applications being applied to the recycling industry for shredding high volume bulk materials such as pallets, furniture parts, cardboard, plastic waste and many other reusable materials. Unique adjustment method for rotor and stator blades could double or even quadruple their life-span.
Material is fed through the hopper in front of a hydraulically operated drawer, which pushes the material load-controlled onto the turning rotor. The material is shredded between the rotor knives and a fixed counter knife. The screen hole with different perforation diameters determines the size of shreds. Produced shreds can drop from the machine through the screen perforation directly or be removed with the optional suction device or spiral conveyor.

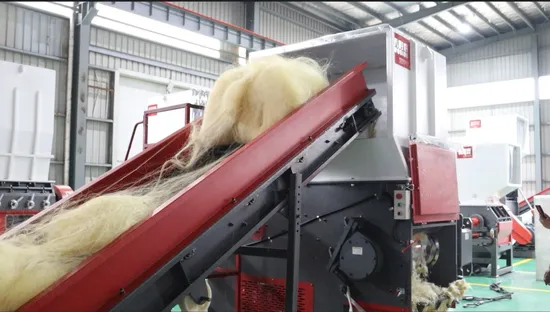

Detailed Photos
Features: 1)Precisely processed combined frame made of extra-thick plates; Lange-angle, hexagon prism of power slewing axis; Big hopper with big caliber for feeding big material
2)PLC control system with automatic overload protection and auto reverse switch
3)Unique hydraulic pushing system accelerates the shredding speed, for light material particularly
4)Each dynamic blades has four cutting edges which enable reutilization after being abraded, by rotating 90 degree
5)Each fixed blades has two cutting edges which enable reutilization after being abraded, by rotating 180 degree
6)Quiet operation at low speed
7)Screen perforation is adjustable according to customers' requirement
8)The shredders can be adjusted according to customer specific requirements for throughput volume, material to be processed, etc. Application
Application: Pieces from injection molding machine
Thick wall plastic sheet
Pipe
Hollow plastic products
Chemical blue barrel
Plastic pallet
Film
Wood
Kitchen and household waste
Shredder Product Series

Model	WPS600	WPS800	WPS1000	WPS1200	WPS1600
Main Shaft Length(mm)	600	800	1000	1200	1600
Tactical Diameter(mm)	280	400	450	450	645
Main Shaft Speed(rpm)	78	78	78	78	78
Ram Travel(mm)	600	800	1000	1200	1600
Rotor Blades(pcs)	39	51/57	63/92	81/116	140/156
Fixed Blades(pcs)	2	2	3	4	5
Motor Power(kw)	22	37	55/75	75/90	75*2
Hydraulic Power(kw)	2	3	4	4	5
Screen Mesh Diameter(mm)	30-80	30-80	30-120	30-120	30-120
Cutting Chamber Dimension(mm)	600*600	800*800	1000*1000	1200*1250	1600*1400
Overall Dimension(mm)	1750*1400*1780	2430*1720*2480	2880*2180*2570	3350*2300*2660	3800*3300*3250
Weight(kg)	2800	5000	7000	8000	11500

More Products

Company Profile

FAQ

1.What information shall I provide when I request for quotation?
Information should be including parameters or technical requirements, such as: processing materials, output size, capacity, etc.
2. Are you trading company or manufacturer?
We are ISO9001 certified manufacturer focus on fabricating solide waste recycling machine since 1995, address: No.3 Geely Avenue, Toumengang New Street, Linhai, Taizhou 317000, Zhejiang China.
3. What kind of products do you offer?
We have four main categories of products, shredder, plastic crusher, plastic recycling and washing line, plastic granulator andauxiliary equipment.
4.What are the applications of these products?
Our products are wildly used in shredding and crushing of plastic woven bags, plastic film, PA/PC plastic block, household appliance shells and inner tanks, plastic pipes, plastic containers, wastepaper, straw, wood, urban household garbage, medical waste, electronic waste and waste metal, etc. And waste plastic recycling and washing and plastic granulation.
5. Do you support product customization?
Yes, not only we provide customized service but also provide solutions to our customer.

---
