High Power Stadium Lighting Factory Pirce LED Flood Light Smart LED Driver Motion Sensor IP66 Waterproof 5years Warranty OEM 1400W 1500W CE Sport Lighting

US$410.00-886.00 1 Set (MOQ)

Basic Info.

Model NO.
FD019
Power
800W-1400W
Projection Distance
>35m
Application
Park, Square, Factory, Garden, Stadium Sport Airport Crane
IP Rating
IP66
Certification
CCC, CE, CQC, C-tick, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, REACH, RoHS, SAA, SASO, VDE
Operating Voltage
100-240V
Input Voltage
90-305V
LED Chips Brand
Epistar
Surface Treatment
Powder Coating Anti-Corrosion Anti-Salt Spray
Housing Color
White Black Grey Customized
Beam Angle
8 15 25 30 40 60 90 120 Degree Asymmetric
Lpw
120lm/W - 200lm/W
Material
Tempered Glass PC Lens Wago Connector
Driver
Meanwell Inventronics Moso Sosen Do
LED Type
5050 / 3030 /3535 LED Chip
Option
Light Shied / Light Visor
Tooling
Die-Casting Aluminum Private Mould
Anti-Vibration Rating
3G Vibration / 5g Vibration
Installtion
Bracket Adjustable
Service
Dialux Light Simulation
Application 2
Stadium Sport Public Area Flood Airport Lighting
System Power
600W 800W 1000W 1200W 1400W 1600W
Surge Protection
10kv SPD / 20kv SPD Projector
Transport Package
Carton
Specification
790*653*263mm
Trademark
ZQ
Origin
China
HS Code
9405429000
Production Capacity
200000

Packaging & Delivery

Package Size
90.00cm * 75.00cm * 22.00cm
Package Gross Weight
40.000kg

Product Description


Product Description
Product Features

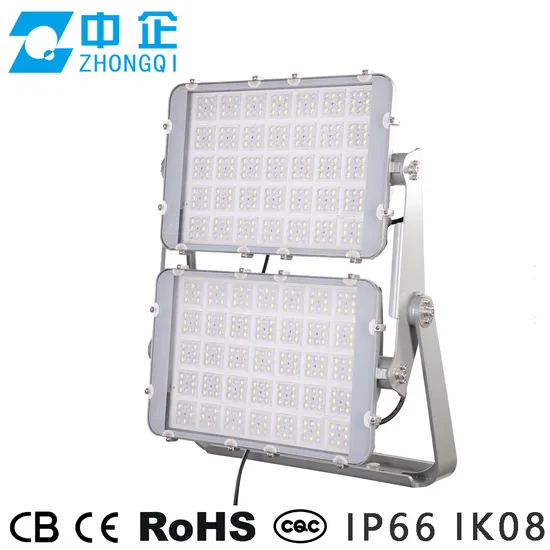

FD019 series floodlight born for harsh environment which has high vibration and salt fog especially crane, harbor and seaport applications
5G vibration test approved under American standard ANSI C136.31. and Japanese standard JIS C 60068-2-64
1000 hours salt spray, IP66, IK09 CE CB RoHs certificated in TUV lab.
Die-casting housing, power range from 100w to 1200w
Optic lens: 8degree, 15degree, 25degree, 30degree, 60degree, 90degree, asymmetric beam angle
Tempered glass protecting PC lens exposing from UV, moisture, dust, salt fog
Separate IP66 driver chamber, better heat dissipation , protecting driver exposing from air, ensuring longer driver lifetime
Driver Standard 1-10V dimming, available on request PWM, 3-Timer-Modes dimmable and DALI
Gearbox or non-gearbox options based on your requests
Product Parameters
TECHNICAL PARAMETERS
Item name Input voltage Freqency range Power Factor CRI CCT Lifetime Ta
Flood light AC90-305V 50/60HZ 0.95 >70 2200-6500K >50000H -25ºC~55ºC
IP Grade IK LPW THD Dimming Color Gearbox Lens degree
IP66 IK09 100-150 ≤20% YES Customized Optional 8/15/30/60/90/
Asymmetric
Product Model Power(W) Premium LPW(lm/W) Standard LPW(lm/W) N.W.(kg) G.W.(kg) Product Size Packaging Size(mm)
TYZQ-FD019 100W 150 130 7.10 7.90 346*370*152 430*400*220
TYZQ-FD019 150W 150 130 7.10 7.90 346*370*152 430*400*220
TYZQ-FD019 200W 150 130 7.30 8.10 346*370*152 430*400*220
TYZQ-FD019 240W 150 130 7.40 8.20 346*370*152 430*400*220
TYZQ-FD019 300W 150 130 17.30 18.90 605*408*204 650*525*235
TYZQ-FD019 400W 150 130 17.40 19.00 605*408*204 650*525*275
TYZQ-FD019 480W 150 130 17.80 19.40 605*408*204 650*525*275
TYZQ-FD019 600W 150 130 14.3(fixture)
7.2(gearbox)		 17.2(fixture)
8.3(gearbox)		 605*408*204(fixture)
574*208*99(gearbox)		 650*540*240(fixture)
650*280*190(gearbox)
TYZQ-FD019 960W 150 130 30(fixture)
8.7(fixture)		 33.4(fixture)
10.1(fixture)		 790*653*263(fixture)
443*431*86(gearbox)		 895*695*230(fixture)
515*500*170(gearbox)
TYZQ-FD019 1200W 150 130 30(fixture)
10.2(fixture)		 33.4(fixture)
11.6(fixture)		 790*653*263(fixture)
443*431*86(gearbox)		 895*695*230(fixture)
515*500*170(gearbox)
Product Applications
Product Details

Company Profile
Packaging & Shipping
FAQ
Q1:Can I have a sample before quantity orders?
Yes,we welcome sample order for your approving
Q2.What about lead time?
Sample 3-5 days, quantity order 25-30 days
Q3.ODM or OEM is accepted?
Yes,we can offer ODM&OEM service
Q4.Howe long the warranty for your products?
We offer 2-5 years warranty to our products
Q5.What about the payment?
30% TT deposit, 70% before shipment
