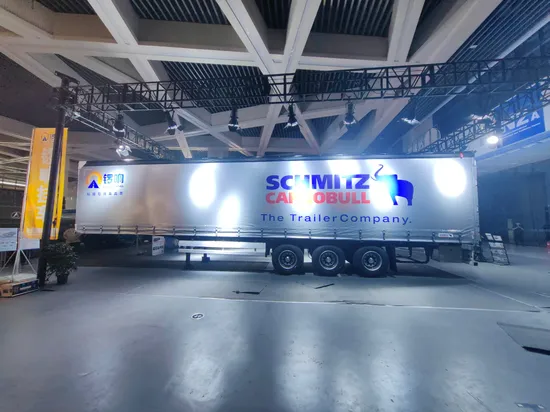

| Vehicle specification |
| Vehicle Outline (box size) |
| Length | 14000(13900)mm |
| Width | 2550(2450)mm |
| Height | 4000(2700)mm |
| Stringer specification |
| Height | 400mm (low temperature resistance 700K2) |
| Upper wing plate | 8mm/140mm |
| Lower wing plate | 10mm/140mm |
| Ventral plate | 6# |
| Vehicle specification |
| Common name | Bent parts 4# Punching |
| Second layer | bent part |
| Side girder | Outer G-type 3.0# for bent parts
Aluminium track for upper edge beam |
| Column | Front and rear bending parts |
| Base plate | Bamboo glue board-28# thick After installation, apply seam sealer. |
| Front gear | Back gears to be live, laminate for front gears |
| Tool box | 1pc 1.5m long 0.6m wide 0.5m high Aluminium alloy for axle rear end |
| Spare tire rack | 1 galvanised |
| Air storage cylinder | 2 x 50 litre cylinders Aluminium alloy |
| ABS | WABCO warning light fitted |
| Lamps | Pull-out warning light at rear end |
| Protective mesh | Aluminium alloy |
| Traction Pins | JOST 50# Live Pins |
| Outriggers | Guangdong Fuhua axle 28T external outrigger linkage Round foot |
| Synchronised Valves | Imported WABCO |
| Airbags | 6 airbags, full lift, front axle lift (WABCO) |
| Axle | 1840 triple axle 13T disc brake (Shenli) |
| Tyres | Triangle 385/65R22.5 (7 sets) |
| Steel rings | Factory 11.75 (7pieces) |
| Suspension | Air suspension |
| Brake air chambers | Dual air chambers 6 pcs. |
| Power Supply | 24V 7-hole socket |
| Bumper | Rear bumper made of through
Aluminium |
| Mudflaps | Plastic fenders straight |
| Color | To be determined |
Product advantages 1.Side member of upper camber structure:As per the mechanical analysis,the unique overall camber structure of the longitudinal beam is adopted to ensure lifetime downward bending-free of crossbeams and effective save fuel consumption under same bearing load and build maximum economic value for users. 2.Sophisticated process:The main parts of the vehicle are fabricated by advanced equipment.The longitudinal beams are welded by imported fully automatic tracking submerged arc welding machine.The wheels and axles are assembled by assembly machine and the wheelbase is guaranteed by distance measuring equipment. 3.Suspension system:The characteristic new suspension system and imported US Holland suspension system feature balanced load among various axles.The tie rod angle of system is reasonably designed to reduce the instant friction between tire and ground and the abnormal tire wear during the frequent operation.The snap rings for shafts are one of integral casting. 4.Axles:The axles choose the quality products manufactured by professional factory,featuring high bearing capacity and difficult deformation.In addition,the optional anti-lock brake system(ABS) from domestic or foreign renowned brand can effectively eliminate the side slip and drifting of vehicle due to locking of wheels in event of emergency braking and improve the driving safety of the vehicle. 5.Light of dead weight:The partial weight reduction is conducted in multiple portions on the premises of guaranteeing the structural strength.While reducing the dead weight,the bearing capacity is effectively guaranteed. 6.Low bearing surface:The optional goose neck structure of beam effectively reduces the height of bearing surface,lowers the gravity center,and improves the transport safety. 7.Humanized design: →The limiter is added to the spin lock to ensure safer transport; →The design of spin lock handle features beautiful and elegant and easy operate; →The operating handle of front enclose spin lock is located within the front enclosure frame,in order to prevent the handle from scratching the accessories of main unit. →Two positioned three-way valve is added to the brake system to improve the safety of parking brake. 8.Electric system:The electric system adopts the genuine fully sealed harness from domestic renowned brands.The lamps adopt new LED lamp,featuring high illumination intensity and light perception,high mist penetration,stale working performance and long service life. 9.Welding procedure:Frame and top-bottom welding are all compressed tightly with pneumatic-hydraulic clamping,automatic transmission and other large tools welding,effectively control welding deformation and guarantee the smoothness and technical requirements.The turnover model makes the welding strength;The electric tilting system controls the manufacture process spare part distortion.Mixes gas welding ensures the welded joint quality. 10.Painting craft:Using the baking varnish craft,primer twice,top coat twice and detection is made strictly according to the national standard for film thickness to guarantee the paint quality and brightness.
