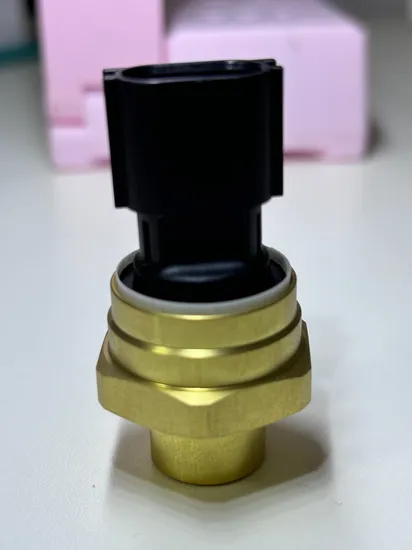

4~20mA Universal Industrial Transmitter Transducer Water Oil Pressure Sensor

Product Description

Product Description
The pressure sensor of the power steering system detects and controls the pressure value of the high-pressure oil flowing into the left or right chamber of the power cylinder when the steering wheel is rotated, and transmits the data to the ECU to control the steering high-pressure oil pump;
The steering wheel simultaneously controls the high-pressure oil driving cylinder to help the steering operation be light and reduce the steering control force of the driver.
Product Features
The product has good reliability and long service life, and is suitable for working in the harsh environment of the automotive system.
Product Parameters

Parameter	Value
Working Pressure	0~10.6MPaG (adjustable)
Precision	±1.0%F.S. (linearity, hysteresis, repeatability)
Total Error Band	±3.0%F.S. (-35ºC~+120ºC)
Operating Temperature	-35ºC~+120ºC
Storage Temperature	-40ºC~+150ºC
Protection Pressure	15.9MPaG
Burst Pressure	20MPaG
Working Medium	Hydraulic Oil
Service Life	Three million full range cycles
Vibration	11g (50~2000Hz)
Electrical Interface	YAZAKI RK03FB
Protection Level	IP69K
Shell Material	SWRCH22A-DA
Pressure Connection	M12×1.25
Supply Voltage	5.0±0.25VDC
Output Voltage	0.5~4.5VDC (adjustable in 5V range)
Power Supply Current	10mA(Max)
Load Impedance	10KΩ (typical)
Output Response Time	3mS
Overvoltage Protection	40VDC
Reverse Voltage	-40VDC
Short Circuit Protection	Yes
EMC (512MHz to 1GHz)	50V/m
EMC (1MHz to 512MHz)	100V/m
ESD	15KV
