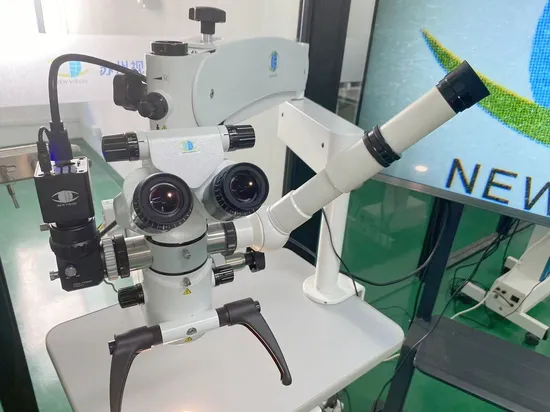

Highlights: German Optical Lenses with Multi-layer coating Lenses are made of Schott ® , Germany which reduce the optical aberration. All of lenses are apochromatic, multi-layer coated and anti-reflective. Easy and Comfortable Operating 180 degree inclinable binocular Inclinable binocular features widest articulation range of any binocular for operator comfort. Widefield Eyepieces The widefield eyepieces are screwed in to the tube and have integrated eyecups with stepless adjustment. The eyepieces are excellently suited for surgeons who wish to work with their eyeglasses on. Rotatable handgrip Rotatable handgrip can be adjusted to user's preferred position and enable the user to easily place the Microscope in the desired position. Ergonomic foot panel Without distraction and interruption, you can conveniently adjust the light intensity, level of focus, and recover focus position. Comfortable LED illumination Brilliant red reflex, natural colors, more contrast as well as lower energy and maintenace costs, and no harmful IR or UV radiation for the patients. Specifications:
| Eyepiece Magnification | 12.5X widefield eyepieces |
| Objective Lens | f=200 |
| Diopter Adjustment | ±7D |
| Pupil Distance | 54mm~76mm |
| Magnification | 5 Steps by drum rotation |
| Steps of Magnification (y) | 0.4X, 0.6X, 1X, 1.6X, 2.5X |
| Total Magnification | 4.3X, 6.8X, 10.6X, 16.9X, 26.5X |
| Field of View diameter | 52mm, 33mm, 21mm, 13mm, 8.3mm |
| Focusing | Motorized, focus range 40mm; 5 optional objective lenses: F200; |
| Illumination Source | LED with life time > 60, 000 hours |
| Filter | Red free, Retinal Protection filter |
| Foot switch | yes |
| Input Voltage | AC220V±22 V / 50Hz±1Hz, AC110V±11V /60Hz±1Hz |
