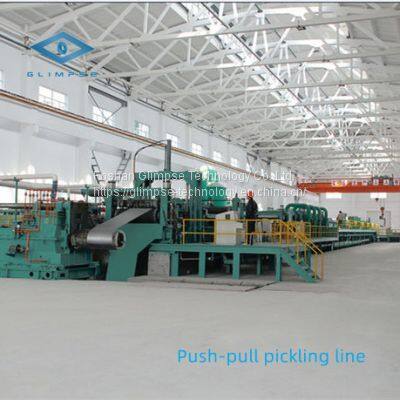

GLIMPSE push-pull pickling line
The push-pull pickling line is a semi-continuous production line for steel strip pickling process. This semi continuous pickling line features with lower consumption, easy operation and fewer malfunctions. Moreover, The push-pull pickling line is capable of processing many grades of steel strip coils. Thanks to well connection to key machinery suppliers and various project experience, Glimpse Technology is able to customize the pickling line to accommodate various production capacity requirements according to customer individual needs from 100,000~600,000 tons annual pickling capacity.
Parameter of GLIMPSE push-pull pickling line:
Acid media: HCL
Strip thickness: 1.2-4.5mm
Strip width: 500-1300mm
Coil weight: max 25t
Line speed: max 120m/min
Annual throughput: 400,000 ton per year
Process rout of GLIMPSE push-pull pickling line:
payoff roll→9-roll straightener→shear→riveter→entry looper→pre-rinsing tank→rinsing tank→hot air drier→exit looper→deflector→disc shear(with scrap coiler)→bridle roll→shear→oiler→tension coiler
Keywords: pickling line, push-pull pickling line, semi continuous pickling line

---
