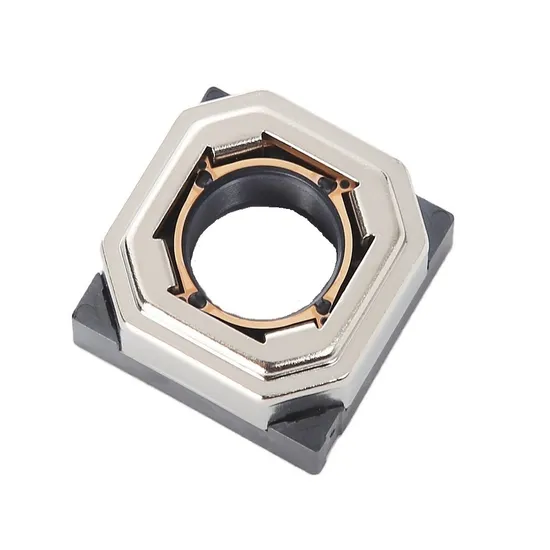

| Voice Coil Motor |
| Model No.: 04-006-012 |
| Genaral Technical Conditions |
| No. | Item | Specification |
| 1 | Dimension | 22.2×22.2×14.6mm |
| 2 | Size of filetr | 14.3×14.3×0.55mm |
| 3 | Weight of motor | 12.6g |
| 4 | Size of adaptive lens | M12×P0.5 |
| 5 | Weight of adaptive lens | 8g Max |
| 6 | Torque of adaptive lens | 30~300g. When the lens is rotated into the motor, the locking height is 23.0 mm, and the lens rotates forward and reverses once |
| 7 | Rear Focal Length(RFL) | 2~8mm |
| 8 | Direction of displacement | Along Tilt |
| 9 | Test environment temperature | 25±5ºC |
| 10 | Usage temperature | -30ºC~+60ºC |
| 11 | Storage temperature | -40ºC~+70ºC |
| Electrical Characteristics |
| NO. | Item | Test condition | Specification |
| 1 | Rated current | 120mA Max | |
| 2 | Maximum current | 120mA Max | |
| 3 | Power-on time at Max current | 10 Minutes Max | |
| 4 | Coil resistance | 32Ω±5%(at 25ºC) | |
| 5 | Starting current | No load. Horizontal direction | 15~40mA |
| 6 | Displacement | No load. Horizontal direction.Drive current 120mA. | 0.7mm Min |
| 7 | Hysteresis accuracy | No load. Horizontal direction.Drive current 0~120mA. | 0.015mm Max |
| 8 | Posture difference of Stroke | No load.
Horizontal direction test as reference. Test the travel difference when the optical axis is vertically up and down. | ±0.04mm |
| 9 | Linearity | No load. Horizontal direction.Drive current 0~120mA. | 0.03mm Max |
| 10 | Displacement increment | No load. Horizontal direction.Drive current 0~120mA. | 0.040~0.050mm/5mA |
| 11 | Temperature rise | Surface temperature of the coil inside the product. | 100ºC Max |
