New Design Rabbit Feed Pellets Pressing Maker Machine

US$500.00-5,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
KL-L
Processing Technics
Crushing-before-Mixing
Screen Mesh
With Screen Mesh
Grinding Equipment Type
Feed Hammer Mill
Pellet Mill Type
Flat Die Pelletizer
Bulking Machine Type
None
Expanding Method
None
Condition
New
Applicable Materials Shape
Granular
Pellet Length
Adjustable
Pellet Moisture
Below 8%
Capacity
100-150kg/H
Rotation Type
Roller Moving
Die Diameter
120mm to 400mm
Pellet Shape
Cylinder
Automatic Grade
Automatic
Certification
Ce, ISO, SGS
Warranty
1 Year
Color
Multi Color
Transport Package
Plywood Box
Specification
2.5mm to 10mm pellet
Trademark
chengda
Origin
China
HS Code
8479300000
Production Capacity
5000 Piece Per Year

Product Description

NEW Design!
Make your own pellets at home!

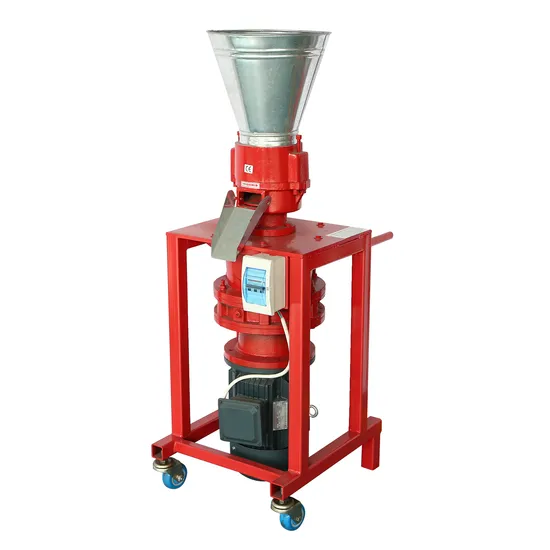

Introduction of Our Pellet Mill:
Vertical style is very suitable for personal use.
These pellet machines are the new designed products of our company and the main parts of the fodder machinery system. Now this animal feed pellet machine is mainly used to make feed pellets for rabbit, pigeon, layer chicken, broiler, duck, goose, fish, pig and so on.The key parts are made of alloy steel that make it very strong and malleable.Now our machines have been exported to Western Europe,North America,Southern Europe,Eastern Europe Asia Africa and so on.

Knowing your machine

Standing operation, very convenient.
Specifications:

1. This series machine can be powered by both diesel engine and e-motor.

2 .We adopt the new design of direct connection of motor shaft and he main shaft that overcome the loose defect of belt connecting as long time using.

3. High accuracy gearbox and high output.

4. It is widely used in large,middle, small scale aquatic. food and feed processing factory,

livestock farm, poultry farm, individual raisers, middle and small farm.

5. International advance steam fittings and imported pressure reduction valve.

6. Flat die is made with international advanced equipment for long lifespan.

7. Drive with heavy duty gearbox, which can produce continuously in most adverse condition.
Data of New KL-L series pellet mill
Model No. Power(E-motor) Feed output kg/h Wood output kg/h N/G weight(kg) Pellet diameter Packing Size(cm)
KL120L 1.5kw 220v 1phase 40-60 20-40 85/105 2.5-10mm 75*32*65
KL150L-1 2.2kw 220v 1phase 50-90 30-50 90/110 2.5-10mm 75*35*60
KL150L-2 3kw 380V 3 phase 70-110 50-70 130/170 2.5-10mm 76*37*63
KL200L 5.5kw 380V 3 phase 200-300 110-140 230/260 2.5-10mm 82*40*65

The raw material you can choose:
How to Choose A Perfect Flat Die Pellet Machine

Flat die pellet mill takes the circular motion as the principle. The press roller, main shaft and die mould are of high quality alloy steel. There are common two design of flat die pellet machines: rotating rollers with stationary die or running die with stationary rollers. Though the two kinds of pellet mills can both make wood pellets and feed pellets, there is slightly difference. Roller driven pellet machine is more suitable for making biomass pellets, especially for making hardwood pellets; die driven pellet making has good performance in making feed pellets and soft wood pellets. Then, let us talk about the engine of pellet press. There are two choices, flat die pellet mill with electric motor and flat die pellet mill with diesel engine. Electric pellet mill is more energy-saving and environmental protection, while you must make sure there is enough electricity in your pellet making sites .
Our Services
1. We provide 1 year guarantee.
2. We provide English manual and video for installation & operation.
3. If required, we could send technicians for installation and commissioning, training.
4. We provide feed formula and free spare parts.

COMPANY INTRODUCTION
Laizhou Chengda Machinery Co., Ltd was founded in 1992, which is a high tech enterprise that integrates new product design, development, manufecturing and international trade business.
Main products: flat die pellet mill, vertical ring die pellet mill, wood chipper, hammer mill, pellet cooler and cutting wood machine etc.. Our company always takes the product quality and credibility as the foundation of us present and tomorrow survival and development. We always adhere to the "quality and reputation first" concept.And we have got the 'quality advanced company" and "quality trustworthy company" and the "honorary company". we are AAA level enterprise to be named by the national quality, reputation and service department.
Our company is located in Laizhou Bay, near to Qingdao seaport. It's convient in sea, road, and air transportation, we have very perfect import and export service system in China. At the same tine , we have a widely range of commodity information network, partners all over the world. Believe our sincere cooperation will creat a better tomorrow.
RFQ
1. How to order?
After you decide to purchase, we will send you proforma invoice with our bank information,
bring this PI to the bank, and ask to make T/T for the deposit. For single set, your machine can be ready within 7-10 working days after we getting the deposit, we will send to the port and deliver to you by sea.
-In case for more handling charges, you can transfer 100% of the payment, we can arrange the products and shipping under your allowance.
2. Related products?
PTO type, diesel type, electric type.
3. Can i order 1 set for sample?
Yes, Sample acceptable, You can test the quality of sample.
4. How do we visit you and your factory?
First of all, welcome you or any appointed agent to visit and inspect our factory.
You can fly to Shanghai airport, then come from Shanghai railway station to weifang city.
You can fly to Qingdao airport, then we can pich you up there.
We can pick up you at Qingdao airport or Weifang railway station.
Please kindly let us know your schedule in details, so we can arrange everything for you.
5. Why you choose us?
As manufacturer, our products have excellent quality and competitive price.
Good after-sale services and 12 months warranty are visible.
Strictly testing and checking before shipping.
25 years experience in manufacturing and 10 years exporting experience.
Doing OEM for many famous brand.

Just contact me if you have any questions.


I am of service any time.
