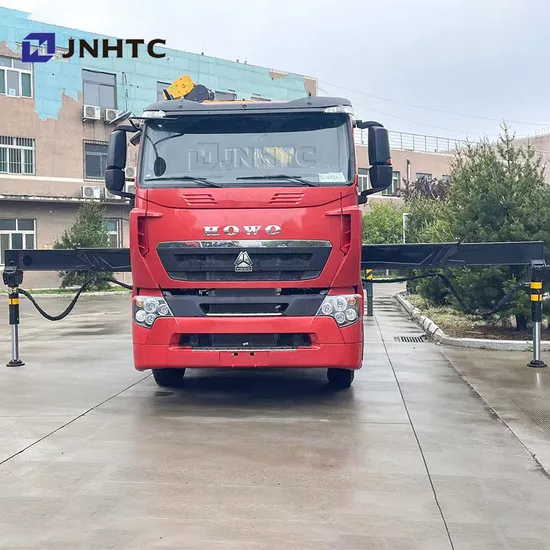

| Truck Brand | SINOTRUK-HOWO ( LHD) | ||||
| Cargo body size (L*W*H, mm) | 8200*2500*600 Bottom:3mm, Side: 1.5mm | ||||
| Crane Model | SQ12ZK3Q | ||||
| Max Lifting capacity(kg) | 12000 | ||||
| Max Lifting Moment(T.M) | 30 | ||||
| Recommend Power(kw) | 45 | ||||
| Crane Weight(kg) | 4200 | ||||
| Installation space(mm) | 1300 | ||||
| Rotation Angle | All Rotation | ||||
| Max Oil Flow of Hydraulic System | 63 L/min | ||||
| Max Pressure of Hydraulic System | 26 Mpa | ||||
| Crane Type | telescopic boom | ||||
| Approaching angle/Departure angle(°) | 16/15 | ||||
| Overhang(front/rear) (mm) | 1500/2707 1540/2530 | ||||
| Wheel base (mm) | 1800+5800+1350 | ||||
| Max speed(km/h) | 95 | ||||
| Loading Weight(kg) | 25000 | ||||
| Engine (Steyr technology, made in China) | Model | WD615.47 water-cooled,four strokes,6 cylinders in line with water cooling , directly injection | |||
| Fuel type | Diesel | ||||
| Horse Power, max(kw/rpm) | 380HP | ||||
| Emission | EURO II | ||||
| Fuel tanker capacity (L) | 400 | ||||
| Transmission | Model | HW19710,10 forwards and 2 reverse | |||
| PTO | Model | 70# | |||
| Brake system | Service brake | Dual circuit compressed air brake | |||
| Parking brake | spring energy, compressed air operating on rear wheels | ||||
| Auxiliary brake | Engine exhaust brake | ||||
| Steering system | Model | 8118 hydraulic steering with power assistance | |||
| Front axle | HF9 | ||||
| Rear axle | HC16 | ||||
| Color | Optional | ||||
| Tyre | 315/80R22.5, steel wire tire | ||||
| Tyre quantity | 12pcs + 1 spare | ||||
| Electrical system | Battery | 2X12V/165Ah | |||
| Alternator | 28V-1500w | ||||
| Starter | 7.5Kw/24V | ||||
