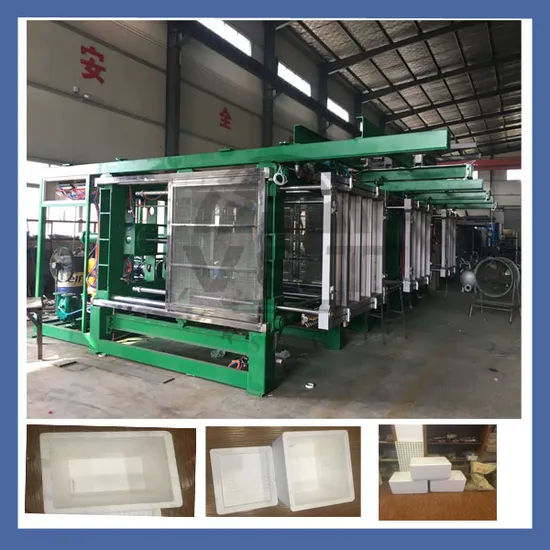

High Density Foam Box EPS Packaging Shape Moulding Machine

Product Description

Features:
1, Machine structure: All frames are welded by 16/20mm steel plate, very strong. Machine legs are made by high-strength H type steel profile, foundation is not required from clients.
2, Filling system: Machine allows three filling modes: normal pressure filling, vacuum filling and pressurized filling. Material hopper has sensor to control material level, material discharging is done with rotary discharging plates, total 44 discharging holes
3, Steam system: Adopt balance valve and Germany electric gauge switch to control steaming
4, Cooling system: Vertical vacuum system with water spray device at the top make vacuum efficient.
5, Drainage system: Increase mould outlet and use 6 inch drainage pipe and big butterfly valve, make mould draining faster.

Item		Unit	FAV1200	FAV1400	FAV1600	FAV1750
Mould Dimension		mm	1200*1050	1400*1250	1600*1350	1750*1450
Max Product Dimension		mm	1050*900*420	1250*1100*420	1400*1200*420	1600*1300*420
Stroke		mm	150~1500	150~1500	150~1500	150~1500
Steam	Entry	Inch	3''(DN80)	4''(DN100)	4''(DN100)	4''(DN100)
	Consumption	Kg/cycle	5~7	6~9	7~11	8~12
	Pressure	Mpa	0.5~0.7	0.5~0.7	0.5~0.7	0.5~0.7
Cooling Water	Entry	Inch	2.5''(DN65)	3''(DN80)	3''(DN80)	3''(DN80)
	Consumption	Kg/cycle	45~130	50~150	55~170	55~180
	Pressure	Mpa	0.3~0.5	0.3~0.5	0.3~0.5	0.3~0.5
Compressed Air	Entry	Inch	1.5''(DN40)	2''(DN50)	2''(DN50)	2''(DN50)
	Consumption	m³/cycle	1.5	1.8	1.9	2
	Pressure	Mpa	0.5~0.7	0.5~0.7	0.5~0.7	0.5~0.7
Drainage		Inch	5''(DN125)	6''(DN150)	6''(DN150)	6''(DN150)
Capacity15kg/m³		S	60~120	70~140	70~150	80~150
Connect Load/Power		Kw	9	12.5	14.5	16.5
Overall Dimension(L*W*H)		mm	4750*1750*3130	4750*1920*3250	4700*2030*3450	4700*2030*3450
Weight		Kg	5000	5500	6000	6000

Application:
EPS (Expanded Polystyrene) shape machine is an incredible piece of equipment that has revolutionized the production of various shapes and forms made of EPS. This machine has been designed to create and shape the EPS blocks into multiple products that range from small to large sizes, depending on the requirement.
One of the significant applications of the EPS shape machine is in the construction industry where it is used to fabricate several EPS products such as sandwich panels, prefabricated houses, decorative gypsum boards, and thermal insulation materials for buildings. The EPS shape machine produces blocks of EPS that can be cut into various shapes and sizes to fit the requirements of the construction industry.
It is also used in the manufacturing industry to produce products such as helmets, packaging materials, and floats for boats. The machine produces EPS shapes that are lightweight, waterproof and durable, making them ideal for these types of products. Additionally, due to the numerous advantages of EPS products, they have become popular in many areas, including food packaging, advertising, and artistic designs.
The EPS shape machine has many benefits, especially in reducing production costs and enhancing efficiency. Due to its speed and accuracy, it can produce a higher number of items in a shorter amount of time, saving time and reducing labor costs.
Another advantage is that EPS is lightweight, which helps in reducing transportation costs and making the products easy to handle. Additionally, the production process is efficient and clean as there is no production of excess waste during production.
In conclusion, the EPS shape machine has been a game-changer in the production of various shapes and forms made of EPS. Its applications in the construction and manufacturing industries have transformed the way we think about production processes. Additionally, its cost-effectiveness and efficiency make it an essential tool in the production industry.
EPS shapes are a versatile and cost-effective solution for a wide variety of applications, and our EPS shape machine is the perfect tool for producing high-quality, custom shapes quickly and efficiently. Our sales locations are carefully chosen to provide the best service and support to our customers, with knowledgeable experts who can help you find the perfect solution for your needs.
Our sales locations are staffed by professionals who are dedicated to providing the highest level of customer service and support. They are experts in all aspects of EPS shape manufacturing and can provide you with valuable advice on selecting the right materials, designing your shapes, and optimizing your production processes.
We are proud to offer our EPS shape machines at a wide range of locations throughout the world, including major metropolitan areas, international hubs, and smaller towns and communities. Our sales locations are designed to be easily accessible and conveniently located, ensuring that you can get the support you need no matter where you are.
At our sales locations, we offer a wide range of EPS shape machines, from compact and portable units to powerful and efficient industrial models. We have machines to suit any application, from small-scale manufacturing to large-scale production runs, and we are constantly updating our product line to reflect the latest advancements in technology and design.
We take pride in our commitment to customer satisfaction, and we are always available to answer your questions, provide technical support, and help you find the right solution for your needs. Our sales locations are staffed by experts who are passionate about EPS shape manufacturing and who are always looking for new ways to help our customers succeed.
In conclusion, our EPS shape machine sales locations are designed to provide the best service, support, and expertise to our customers. Whether you are a small business owner or a large-scale manufacturer, we have the tools, resources, and expertise to help you succeed. Contact us today to learn more about how our EPS shape machines can help you grow your business.

---
