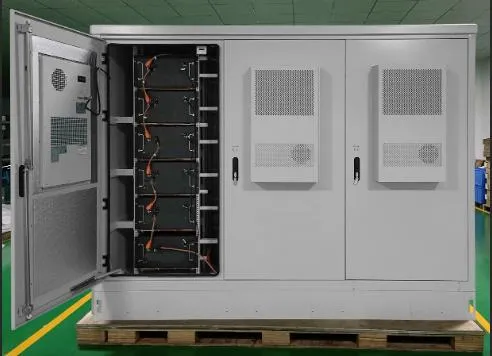

High Voltage Solar Power Plant 200kw 500kw 1000kw 1MW on Grid Hybrid Solar System

Product Description

High Voltage Solar Power Plant 200kw 500kw 1000kw 1MW on Grid Hybrid Solar System
Product Description
Energy Storage System (ESS) is energy storage, which refers to the storage of a form of energy in the same form or converted into another form of energy through a medium or equipment, and it's a cyclic process that needs to be released in a specific form of energy based on future application requirement. The energy storage system is an important part of the "generating transmission-transformation-distribution-utilization" link of the power grid, and an indispensable part of the energy Internet and smart energy.It is difficult to cover the traditional power grid in remote areas, but the local solar resources or wind resources are usually abundant. Jingnoo can provide high-power independent micro-grid solution, which can combine various input power sources, improve the reliability of power supply, so that local residents can realize an independent off grid system.Features:
1.Mobile microgrid Uninterruptible power supply
2.Backup power supply of grid or generator
3.Zero emission to protect environment
4.Save electricity by avoid peak power consumption1.Friendly & flexible: system can be expanded to MW level by parallel;2.Abundant configuration
Integrated multiple boost systems;
Integrated ventilation system;
3.Safe and reliable
Support multiple battery input to improve battery cycle life;
4.Intelligent and efficient
Built-in EMS function to improve energy efficiency management;
Latest IGBT module, high efficiency conversion;Product Parameters

Technical specification	JN200-260KWh
Brand	JINGNOO
DC data
Battery capacity (kWh)	200-260
Number of battery cluster	3
BMS communication interface	RS485/CAN
DC voltage range(V)	420~850

AC data
Rated AC power(kW)	30~150
Max. AC power(kW)	30~150
Rated AC current(A)	43~216
Max. AC current(A)	48~238
DC current component	<0.5%
THDi	<3% (Rated power)
Rated grid voltage(V)	400
Allowable grid voltage range(V)	320~460
Rated grid frequency(Hz)	50/60
Allowable grid frequency range(Hz)	45~55/55~65
Power factor	lagging- 1leading
lsolation method	With the isolation

General Data
Ingress protection	IP54
Fire extinguishing system	Support
Operating temperature	-30°C~ 55°C
Dimension W*D*H (mm)	2100x1300×2600mm
BMS communication mode	CAN, RS485
EMS communication mode	RS485, TCP/IP
PCS cooling way	Temperature control intelligent air cooling
Battery cooling way	Air conditioning cooling

Company Profile
Jingnoo New Energy Co., Ltd. is a large-scale high-tech enterprise integrating R & D, production and sales of lithium-ion batteries. The main products are a full range of lithium-ion batteries.
Headquartered in Bantian, Shenzhen. The factory is located in Qingxi Town, Dongguan and Yongkang, Zhejiang. The total construction area is 10000 square meters, and there are more than 300 employees, including more than 30 engineers and technicians. Mature product technology, complete specifications, the company has a sound production management system and quality control system, has a strong research and development and management team, most of the company's products have passed the FCC, CE, MSDS, ROHS, ISO9001 and other professional certification. In order to better meet the different needs of users, we better combine advanced production technology and equipment, professional testing center, mass production and efficient after-sales service to give full play to the overall effect. After years of development, the company is at the top level in terms of product performance, technological innovation and all-round services, and has established a leading position in the domestic industry
Jingnoo Group has been pursuing the business tenet of "Integrity and pragmatism, Win-win development, Pursue excellence" for many years, and is committed to providing customers with Innovative and easy-to-use, Powerful, Safe and reliable, Green and environmentally friendly rechargeable energy products. Through unremitting efforts, Jingnoo has become a long-term friendly supplier of some well-known brands at home and abroad. The existing production plant covers an area of 10,000 square meters and 200 employees of production management, 80% of whom have a bachelor degree or above. It mainly produces home energy storage battery systems (wall-mounted low-voltage battery, cabinet-type low-voltage battery, high-voltage batteries, etc.), small industrial and commercial energy storage systems ESS (100kw energy storage integrated cabinet, 200kw energy storage integrated cabinet, etc.), container energy storage systems of 20ft, 40ft, photovoltaic carports and charging piles. The products are exported to European and American countries and other global regions, and have been recognized by more than 20 customers at home and abroad. Certifications
FAQ
1. Can I have samples order? And what is delivery time for sample order?
Yes, we offer samples.
The delivery time for samples is 25-30 days.You can test our batteries to know more about its performance and quality.
2. Can you produce the order with the customer's brand?
Yes, of course. OEM & ODM service is warmly provided. 3.What's the MOQ? There is no MOQ for samples. For bulk order quantity, the more, the cheaper. 5.How about the quality & warranty time? All products provided 5 years warranty. Lifepo4 cells with 3 year warranty. if there is any quality problem,we can send the new to replace it. 6.Can these battery pack be compatible with my inverters? Yes, our battery pack can be compatible with most brands of inverters on the market 7.Can it be series or parallel for use? Yes, The number of batteries in series or parallel depends on your battery parameters. 8.Why JINGNOO guys ask me so many questions? I just want to know the price !! Sorry for annoying you. But the discharge current, voltage etc. Information is very important for us to produce the correct battery for you. If we produce the battery which can not achieve the real application discharge current, size etc. That will put both of us in a very embarrassing and lose-lose condition. We also have price list, but it is only for your reference. We should confirm the discharge current etc. Information before we produce your orders.

---
