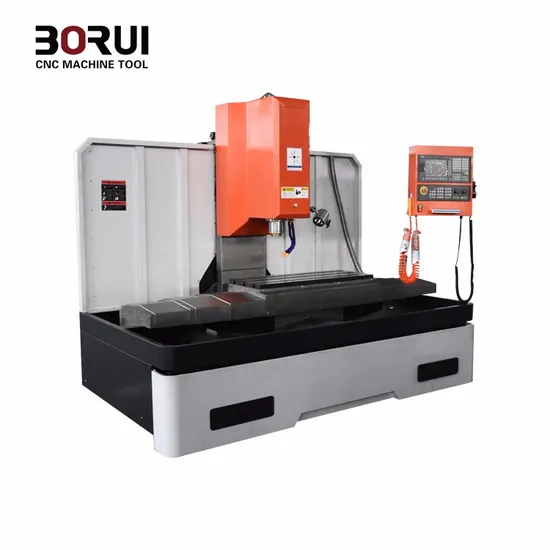

Xk7140s Tengzhou Siemens Control Bed Type CNC Milling Machine Cheap for Steel Sale

Product Description

XK7140S tengzhou siemens control bed type cnc milling machine cheap for steel sale
Product Description
The machine has good rigidity, convenient and flexible operation, the machine could Vertical milling and drilling expansion can be boring and tapping ,have wide using range, especially suitable for processing all kinds of complicated shape of two 3d concave and convex mould and complex of the surface of the cavity and more suitable for batch processing ,Suitable for high precision mould car ,locomotive, aerospace instrumentation Light industrial textile electronic apparatus, and machinery manufacturing industries such as processing of small and medium-sized box cover plate shell plate parts
The main specification :

Specification	UNIT	XK7140S
Table size	mm	1000x400
T-slots (No./width/pitch)	mm	3x18x110
Longitudinal travel	mm	750
Cross travel	mm	500
Vertical travel	mm	500
Distance between spindle and table surface	mm	100-600
Table rapid feed speed(X)	mm/min	8000
Table rapid feed speed(Y)	mm/min	8000
Rapid feed speed(Z)	mm/min	6000
Spindle hole taper	---	BT40
Spindle speed range	R	8000
Main motor power	KW	5.5/7.5
Torque of X/Y/Z axis AC servo motor	N.m	15/15/15
Overall size	mm	3200*2400*2600
Net weight	kg	4000

The specification For the xk7140s as following :

Parts	Brand
Bearings	JAPAN NSK
Ball screw	TAIWAN HIWIN/PMI
Linear guideway	TAIWAN HIWIN/PMI
Spindle	TAIWAN SHUENN-JIA/POSA
Tool magazine(Optional configuration)	TAIWAN CHEN SOUND/H.D.W./OKADA
Air-oil cylinder	TAIWAN Airtec
Pneumatic parts	TAIWAN AIRTAC
Lubrication pump	Hurun(Taiwan )

CNC milling machine features:
1.Machine base, column, spindle box, table and other basic parts, all adopt high-intensity Lost Foam molding technology, the internal microstructure stability, to ensure that the basic pieces has high stability. Casting structure through the machine dynamics analysis and finite element analysis, geometric structure to make it more reasonable, and the appropriate combination of ribs to ensure the high stiffness of the basic parts. Wide machine bed base, full load support design, to ensure that the heavy load when processing capacity.
2. high-speed high-rigidity spindle unit combined with the servo spindle motor; X / Y / Z using high-torque servo motor.
3.X / Y / Z adopt Taiwan's high-precision and high-strength ball screw with a pair of special ball screw bearings and high precision imported locking.
Product Details
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Company Information
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
