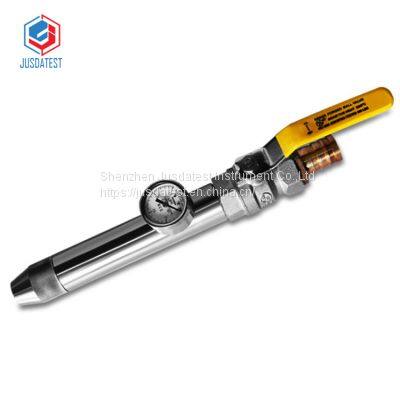

IEC/UL 60529 Hand Held Jet Nozzle for IPX5 and IPX6 Waterproof Test
Product description:
The hand-held water spray test device is made according to the relevant provisions of the standard IEC60529 IPX5/6, GB4208 IPX5/6 and other standards, and is used to test the waterproof performance of appliances or electrical appliances with anti-rain function. The sprinkler head is precision welded stainless steel and is suitable for products that may be affected by various flushes or violent sea waves.
Function parameter:
1. It is suitable for IPX5 and IPX6 testing
2. Aperture: ф6.3mm (IPX5), ф12.5mm (IPX6).
3. IPX5, IPX6 nozzle thread connection, quick replacement.
4. Stainless steel material.
5. Water flow: 12.5±0.625L/min (IPX5), 100±5L/min (IPX6)
6. Pressure gauge: 0~0.25MPa
7. Test time: not less than 1min/m2 (but not less than 3 minutes)
8. The distance between the nozzle and the shell: 2.5-3m (controlled by the test personnel)
