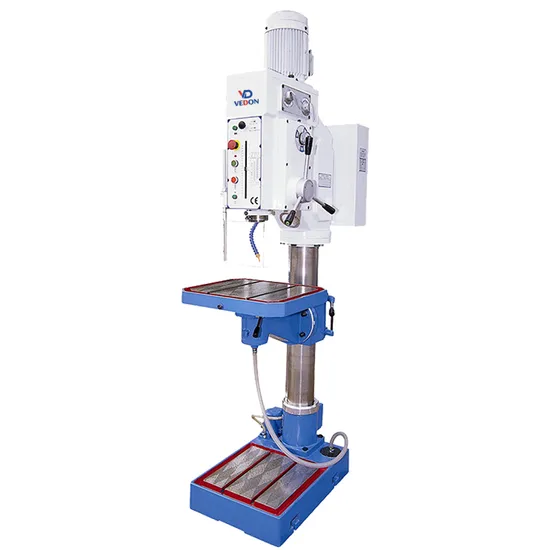

Spindle Taper Bore Mt4 Vertical Drilling Machine Price Z5035A

Product Description

Z5035A Product Description


Product Parameters

Item	Vertial Drilling Machine
Model	Z5035A
Max. drilling diameter	35mm
Max. tapping diameter	M20
Distance from spindle axis to generating line of column	330mm
Distance from spindle nose to workable surface	610mm
Distance from spindle nose to base plate surface	1150mm
Spindle travel	150mm
Max. adjusment of workable and table rest	540mm
Swivel of table and table rest	+/-45°
Spindle taper	MT4
Range of spindle feeds	70-2600rpm
Number of spindle feeds	12
Spindle feed range	0.1,0.2,0.3mm/r
Column diameter	140mm
Effective working area of table (L*W)	424*424mm
Effective working area of base plate (L*W)	420*380mm
Dimension of T-slot of table and base plate	2-14mm, 2-16mm
Main motor power	1.5/2.2kw
Package size	700*1150*2150mm
Weight	670/730kg

Product Advantage

High Machining Accuracy: The drilling center from Suzhou Yonghang Machine Tool Equipment Co., Ltd. utilizes high-precision numerical control technology, resulting in exceptional positioning accuracy and repeated positioning accuracy. This enables the drilling and tapping center to complete drilling and tapping tasks quickly and accurately, reducing scrap and rework rates. Fast Cutting Speed: With a high spindle speed, the drilling center achieves high-speed cutting. This not only reduces cutting time and processing cycle but also enhances the finish of the machined surface. Linkage Function: The drilling and tapping center is equipped with a multi-axis linkage function, allowing it to drill and tap complex hole systems. This advanced machining method significantly improves processing efficiency and accuracy while reducing manual intervention and operation time. High Degree of Automation: Suzhou Yonghang's drilling and tapping centers are equipped with automatic loading and unloading systems, as well as automatic detection systems and other auxiliary equipment. This ensures the automation and intelligence of the processing process, leading to improved processing efficiency, reduced manual errors, and enhanced safety.

Packaging & Shipping
Company Profile
Shandong Vedon Intelligent Equipment Co., Ltd. is a comprehensive enterprise in China whois specialized in metal cutting machinery and tools, coming with selfimport and export rights. VEDONTOOLS supply a wide range of products and service to its global customers, including vertical machining center, milling machine, lathe, radial drilling machine CNClathe, HSS&TCT annular cutter, magneticdrill machine, diamond drill machine etc...
They are widely soldto morethan 50 countries and areas in Europe, South America, and Asia, relying on the reliable product quality, reasonable price and good after-sales service system. VEDONTOOLS follows the concept ofcredit management cooperation and win-win strategy, and it has good comments from society and clients. Here we sincerely hope to cooperate with you and create a bright future.
FAQ

Q1.Could I put my LOGO on it or paint my own color?
A:Yes, As long as the order quantity reach to the MOQ.
Q2.What's your trade terms?
A: FOB, CIF, DAP or other terms are acceptable.
Q3.Could I order trail small order?
A:Yes,we have no MOQ for standard version products. The price is different from different order quantity.
Q4.What points need to be confirmed before placing the order?
A:Voltage, frequency, plug type trade term and have shipping agent or not.
Q5. What is your terms of payment ?
A: Payment≤1000USD, 100% in advance. Payment≥1000USD, 30% T/T in advance, 70% before shippment. If you have another question, pls feel free to contact us as below.
Q6.How can I choose the most suitable machines ?
If you are the factory, please tell me your specifications request or our workpiece drawing, our professional engineer team will suggest the suitable model for you.
If you are the trading company, you can tell us your customer's request or we will suggest you our best selling
Q7.Where is our factory located? How can I visit there?
Our factory is located in ZaoZhuang City, ShanDong Province, China. You are warmly welcomed to visit us.
We can send the invitation letter to you and pick up you from JiNan YaoQiang Airport to our factory.
Q8.How is the warranty?
We will supply standard ports and accessories with our machine when shipment.
Within one year after receiving our machines, in the right operation, if there are any damaged parts or accessories,
we will replace them by air or express immediately free of charge.
Q9.Do you have a stock?
Our Chinese market order is very good, we have many machines produce everyday and delivery everyday.
Our fastest delivery time for 1~5 sets will be within one month.

---
