Robust Automated Milling Machine with Precision Vertical Milling Capabilities

Product Description

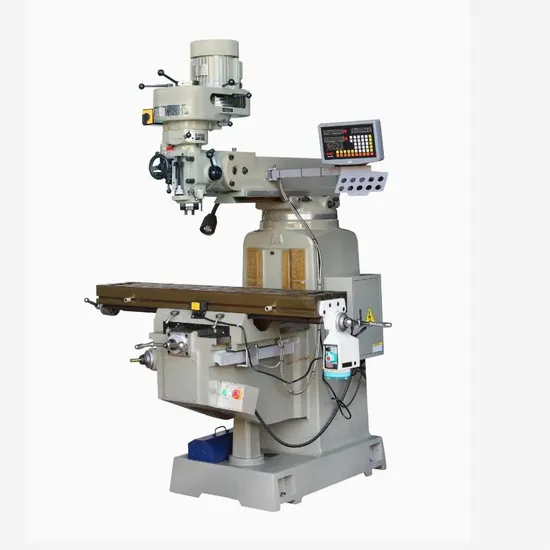

Introducing the phenomenal 4s Vertical Lifting Table Milling Machine, an extraordinary masterpiece of Taiwanese engineering prowess. This state-of-the-art creation is engineered to redefine precision and efficiency standards in metalworking, offering an unparalleled experience for discerning professionals who demand the utmost excellence.
Product Description
Mechanical CharacteristicPainstakingly crafted with the highest quality Meehanna cast iron, this machine is the epitome of exceptional rigidity and steadfast stability. It guarantees long-lasting performance devoid of deformation, ensuring solid and reliable operation that withstands the test of time.The spindle, fortified with an advanced configuration of precision bearings, unleashes immense cutting power and achieves extraordinary accuracy. This endows the machine with superior machining capabilities, elevating it to a powerhouse of performance.Featuring an innovative inverted hanging design, the end milling head excels in achieving superb precision. Its user-friendly operation and convenient braking mechanism make it effortlessly easy to use. For those seeking bespoke features, custom solutions are promptly available to meet specific requirements.The three-axis screw nuts are fabricated from high-grade phosphorus meter copper, celebrated for its superior wear resistance. This ensures an extended operational lifespan, providing reliable durability and consistent performance.The XY shaft slide undergoes cutting-edge high-frequency annealing treatment, dramatically enhancing wear resistance. This treatment prolongs the machine's operational life, guaranteeing continuous high-level performance.A seamlessly integrated lubrication system is meticulously engineered to ensure optimal sliding performance, maximizing machine effectiveness and extending its longevity.
Product Parameters
1.Milling Machine Rotation Speed
Rotation speed is a critical parameter, directly influencing processing efficiency and cutting force. An increased rotation speed not only boosts cutting power but also enhances surface finish while diminishing residual stress on components, leading to superior machining outcomes.
Milling Machine Cutting Speed Cutting speed is a vital determinant of both processing speed and quality. The ideal speed is dependent on variables such as material hardness, cutter material, and machine type, ensuring top-tier results for diverse applications. Milling Machine Processing Accuracy Processing accuracy is a vital performance indicator, crucially impacting both machining precision and part quality. It is influenced by factors like cutting force, machine and tool rigidity, workpiece clamping accuracy, and initial machine tool discrepancies. Milling Machine Precision Stability Precision stability is essential for maintaining consistent machine accuracy throughout the operation. It is influenced by initial tool errors, machine tool deformation, and tool wear, which are crucial for upholding quality.

Product Name
Product Name	Milling machine
Product model	4S
Product technical parameters
dimension	Table size	1270*254MM
journey	Left and right stroke(X)	720MM
	Front and rear stroke(Y)	380MM
	Up and down stroke(Z)	320MM
	Arm reach	520MM
	Distance from spindle end face to table surface	50-490MM
Principal axis coefficient	Spindle taper	R8
	Spindle speed	80-5440RPM(16-speed)
	Spindle travel	127MM
	Spindle horse power	3HP
Milling head	Milling head tilt Angle	180° around / 45° front and back
Machine profile dimensions	T-slot (Number * Size * Spacing)	3-15.88*65MM
	Machine size (L * W * H)(MM)	1750*1700*2200MM
	Approximate machine weight	1280kgs
The configuration is as follows	Accessories name and specification	quantity
Standard parts for machine tools	1,Hand oil pump	1
	2,Work light	1
	3,Organ board + protective glue	1
	4,Lever	1
	5,Tools and toolboxes	1
	6,Operating instruction	1
Special parts for machine tools	7,Two axis electronic ruler	1
	8, X-axis automatic feed	1
	9, 6 "flat pliers	1
	Clamp plate	1
	11, chuck	1

Detailed Photos
Packaging & Shipping
Professional Team
FAQ
1. What are the Payment Terms?
A: We accept T/T payments, requiring a 40% initial deposit upon ordering and the remaining 60% balance to be paid before shipment. This payment structure ensures a smooth transaction and timely processing of your order.
2. What are your trade terms?
A: We offer flexible trade terms including FOB, CFR, and CIF, giving you the freedom to choose the option that best suits your logistical needs and preferences.
3. When is the delivery time?
A: For our standard Vertical CNC Drilling Machine Center, we guarantee delivery within 30 days. For custom or specialized machines, additional time may be required. Please align your order placement with our provided delivery schedule to ensure timely receipt.
4. What is your minimum order quantity and warranty?
A: Our minimum order quantity is one set, ensuring accessibility for all customers. We also offer a comprehensive one-year warranty, reflecting our commitment to quality and customer satisfaction.
5. How are the machines packaged?
A: Each machine is meticulously packed in a robust wooden case, guaranteeing it arrives in pristine condition, ready for immediate use upon receipt.
6. How can I choose the most suitable machines?
A: Provide us with your specific requirements, and we will recommend the most suitable model tailored to your needs. Alternatively, you may select your desired model directly from our extensive range of options.
Alternatively, you can send us your product drawings, and we will identify the ideal machine configuration for your specific applications, ensuring optimal performance and efficiency.

---
