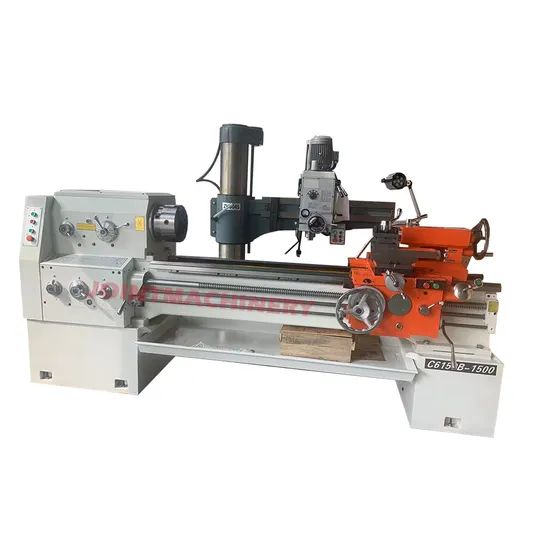

Precision Horizontal Lathe Torno Horizontal Lathe Machine for 1500mm Metal Work Piece Length

Product Description

√ Unlock the pinnacle of durability and precision in machining with our expertly engineered machine guide way, boasting exceptional hardness surpassing HRC52°. This incredible feat is achieved through the use of a cutting-edge high-precision CNC guide way grinding machine, ensuring not only remarkable longevity but also unparalleled accuracy in all applications.
√ Experience the epitome of machining precision with our meticulously crafted lathe head box, feed box, and sliding box. Each component is expertly manufactured using state-of-the-art CNC machine center machining, guaranteeing the highest standards of machining excellence and ensuring that every aspect of the design exceeds your expectations.
√ Enjoy a whisper-quiet and seamless operation with our transmission gear, precisely engineered through meticulous CNC gear grinding machining and subjected to rigorous noise testing. This attention to detail ensures impressively low gear noise, providing a tranquil and smooth working environment.
1. Quenched Guideway
The quenched guide rail stands as a testament to extraordinary hardness and wear resistance, delivering unmatched durability and exceptional performance for all your machining needs.
2. Tool Post
Equip your lathe with a standard 4-position tool post, and explore new dimensions of flexibility with an optional quick-change tool post option for enhanced operational versatility.
3. Three-Jaw Chuck
Standardly equipped with a 3-jaw manual chuck, our machine also offers the option of a versatile 4-jaw chuck to expand your machining capabilities and adapt to a broader range of tasks.
4. Tailstock
Engineered with a standard manual tailstock, this feature is expertly designed for the efficient handling of shaft bar workpieces, streamlining your machining processes.
5. Working Light
Fitted with a working light, our lathe ensures optimal operator convenience and facilitates ease of operation, enhancing your overall machining experience.
Precision Horizontal Lathe Torno Horizontal Lathe Machine for 1500mm Metal Work Piece Length

Model			CN6150
Max swing over bed		mm	500
Center height		mm	250
Max work piece length		mm	1000, 1500, 2000, 3000
Bed rail width		mm	390
Max turning diameter of work piece on tool holder		mm	300
Max turning diameter of workpiece in saddle groove		mm	710
Valid length of gap		mm	240
Through hole diameter		mm	82
Bore hole		mm	90/1:2
Spindle rotation speed		rpm	9-1600
Max transverse travel of tool rest		mm	360
Max travel of small tool rest		mm	145
Distance between spindle center line and tool support surface		mm	about 28
Tool cross sectional dimension (H*W)		mm	25*25
Longitudinal feed		mm/r	0.028-6.43
Transverse feed		mm/r	0.028-6.43
Taper of center sleeve inner hole		mm	MT5
Max movement of center sleeve		mm	150
Max transverse movement		mm	±15
Thread	Inch system		72-1/8t/in
	Metric system		0.5-224
	Module		0.5-112
	Diameter pitch		56-1/4DP
Motor specification			7.5kw 1500rpm
Belt specification			B-2260
Dimension (L*W*H)	1000mm	mm	2625*1077*1315
	1500mm	mm	3125*1077*1315
	2000mm	mm	3625*1077*1315
	3000mm	mm	4800*1077*1315
	3500mm	mm

Shenzhen Joint Machinery Co., Ltd. is a distinguished leader in the production and export of CNC lathe machines, CNC deep hole drilling machines, and Swiss-type automatic lathes, alongside premium milling and grinding machines. Our unwavering commitment ensures the delivery of superior machine quality and unparalleled service to our global clientele. We prioritize stringent quality control measures to consistently uphold the highest industry standards. By integrating core technologies from Taiwan and Germany with cutting-edge production equipment and techniques, we guarantee superior product quality and reliability. Our machines are lauded for their extraordinary precision, stability, and steadfast reliability, proficiently meeting diverse, high-demand machining requirements. With an expansive global export presence, our products captivate customers worldwide, earning widespread acclaim. Our market reach spans Asia, Europe, South America, North America, and beyond. We foster enduring partnerships with clients from various countries and regions, collaboratively generating substantial business value.

---
