US$80,000.00-200,000.00
|
1 set
(MOQ)
|
Basic Info.
Type
Planer type Milling Machine
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Automatic Grade
Automatic
Certification
GS, CE, RoHS, ISO 9001
Cutter Diameter
250/300mm
Wortable Dimensions
600X600mm
Milling Material
Mold Base, Mold Steel, Manifold Block, Steel Flat
Transport Package
PE Bag Cover Inside+ Wooden Box
Production Capacity
600sets/Year
Product Description

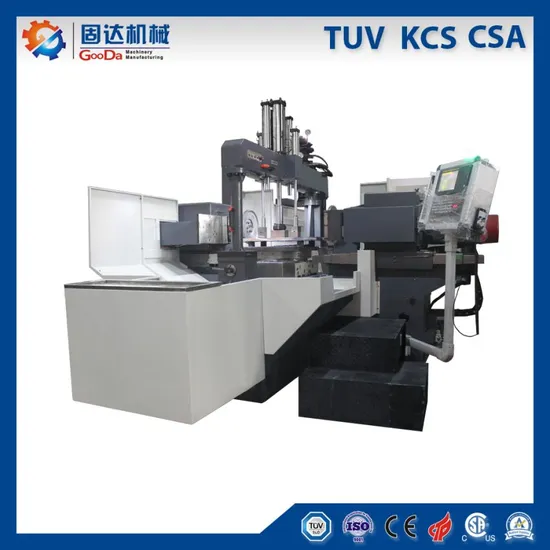

CNC twin head milling machine TH-800NC
Optional spindle driving spindle driving by Gear type
Better Stability,More Efficiency
CNC system once setting and automatic guides where work-piece loading place, automatic measurement, surface process, which can reduce working strength of operator and increase Productivity, maintain high accuracy for dimension, squareness and parallelism.
Specification:
Item | Unit | Model |
TH-800NC |
Cutting Capacity | Control Axis | No. | 4 |
Max.Milling Size (L*W*H) | mm | 800*800*240/290 |
Min.Milling Size (L*W*H) | mm | 220*220*20 |
One time Cutting Capacity | mm | 2*3.0 |
Travel | X axis | mm | 390 |
Y axis | mm | 390 |
Z axis | mm | 1100 |
Feed Speed | X/Y/Z Max. rapid feed rate | m/min | 8 |
Max.Cutting feed rate | m/min | 8 |
Manual feed speed | mm/min | 1-1500 |
Spindle | Spindle speed | Rpm | 50-300 |
Spindle taper | - | BT50 |
Cutter diameter | mm | 250 OP 300 |
Motor | Spindle servo motor | Kw | 2*11 OP 15 |
X/Y axis feed servo motor | Kw | 3 |
Z axis feed servo motor | Kw | 3 |
Rotary table Servo motor | Kw | 2 |
Clamper hydraulic motor | Kw | 2.25 |
Work table | Worktable dimension | mm | 600*600 |
Max.Loading weight | Kg | 2800 |
Hydraulic Clamper | Cylinder No. | Pcs | 1 OP 3 OP 5 |
Oil tank volume | L | 60 |
Lubrication system | Lubricating oil tank | L | 4 |
Lubricating power | W | 25 |
Floor space require (L*W*H) | mm | 4.6*4.2*2.5 |
Machine weight | ton | 14 |
CNC system | | LNC CONTROL SYSTEM OR Mitsubishi M80A controller |
CNC Duplex Milling machine is a machine that specialize in square metal, plastic & plate high speed and high accuracry milling equipment.
Merit:
1)High-speed 2F/4F milling.
2) Mass production efficiency.
3)One setting, machine fully automatic till the workpiece milling completely.
4)High precision of pieces measurment with cleaned surface. ≤Ra3.2um.
5)Environmental Dry and safty.
Design Concept & Function:
1)Full cover box design, make your workpace clean and safe.
2)The opposite axis X&Y at the same level and same speed, surface A=C B=D, getting the accuracy up.
3)Leading in Japan Mitsubishi or Fanuc system servo motor, don't worried about the break.
4)Reference tolerance ±0.01/300mm
5)Vertical oil clamping structure, stability milling.
One worker can run two machines at the same time.
Let GOODA help you save your money, and create more benefits!
You can choose FANUC system or MITSUBISHI Controller as you like.
*Gooda Milling Machine has full automatic measurement and / tool-setting, automatic tool division and automatic connection cutting, automatic rough cutting and finish cutting.
*Gooda will help you reduce setting time and reduce running cost,to increase efficiency.
The integrated high rigidity T-shaped bed, double- column structure and crosswise overhangless structure ensure high straightness accuracy and and excellent workability.
Let GOODA help you save your money, and create more benefits!
You can choose FANUC system or MITSUBISHI Controller as you like.
*Gooda Milling Machine has full automatic measurement and / tool-setting, automatic tool division and automatic connection cutting, automatic rough cutting and finish cutting.
*Gooda will help you reduce setting time and reduce running cost,to increase efficiency.
The integrated high rigidity T-shaped bed, double- column structure and crosswise overhangless structure ensure high straightness accuracy and and excellent workability.
{Workshop}
Main products:CNC duplex milling machine,CNC high speed sawing machine, CNC Vertical milling machine,CNC Gantry milling machine, CNC Machining Center, CNC three Axis Chamfering machine,CNC Planar Grinding machine,Plate flipping machine.The application scope of the products includes mold steel,moldbase, aluminum plate,die processing and other metal cutting.After years of research and development and innovation, the products are at the leading level in terms of processing accuracy,machine stabilitym,Ergonomic design and other technical performance. With the continuous improvement of market demand, GooDa has launched six side processing solutions, indirectly promoting the development of China's mold industry.
After years of unremitting efforts, the company has obtained dozens of patent technology and software coyright, and has successively passed the ISO 9001 quality management system certification of EU TUV certification body,EU CE product safety certification, intellectual property management system certification,national high-tech enterpise evaluation and other honors.In order to maintain the leading edge of product technology,the company has actively carried out school enterprise cooperation to continuously promote the development of the enterprise while recruiting excellent talents in the industry.
Benefiting from the company's innovation and R&D advantages,the company has developed rapidly in just a few years. The existing R&D and production sites have restricted the company's subsequent development, and the space for capacity improvement is limited. For the company's sustainable development in the future, in 2018, GooDa invested heavily in the construction of GooDa machinery's normal headquarters Indusrial Park to support the development of the company's high-end CNC machine tool equipment project, Greatly enhance the company's CNC inteligent equipment capacit.
Let GOODA help you keeping quality at 100%!
Dongguan GooDa Machinery Manufacturing Co.,Ltd established in 2012, is the first national high-tech enterprise integrating R&D,manufacturing,sales and service of CNC milling machine tools in China.The company has manufacturing bases in Dongguan Changping,Huangjiang,Qishi and Jiangsu Kunshan, and offices in the United States,South Korea, Malaysia,Thailand,Vietnam and Brazil.At present, it is one of the largest manufacturer of CNC Duplex milling machines in the world.
GooDa Machinery focuses on the field of CNC duplex milling machine, and has maintained rapid development since its establishment. Its independent brands: GooDa machinery,YaGoo machinery and JJR machinery have become the most influential brands in the industry. The design and positioning of the product is guided by the customer's needs of users in different scales and fields, and realize personalized customization, so as to create the highest economic benefits for customers. {CERTIFICATE}
Manufacturer of CNC duplex milling machines and other series of professional CNC machine tools !!
{EXHIBITION }
Every feature,function and configuration of our machinery are made for our customer
The benefits of GOODA maintenance contract (After sales 3 years): Basic requirement in a certified QS system Guarantee for the accuracy of the measuring and test results Calibration, maintenance and, if necessary, repair with just one visit Fixed prices with a clear breakdown of costs Preventive maintenance helps you avoid expensive faults and ensures a high level of quality that lasts The maintenance contract includes: Travelling time and expenses for our technician Maintenance and calibration work Small items required for carrying out the specified maintenance work Calibration with a corresponding maintenance and test report, allowing the results to be used to demonstrate compliance with national standards GOODA just need a chance to be your reliable Cooperative Partner
Your inquiry is welcomed at any time.
>>
