Basic Info.
Certification
ISO9001, RoHS, FCC, CE, ISO9001, RoHS, FCC, CE, ISO9001, RoHS, FCC, CE, CCC
Universal
Universal, Universal
Transmission Distance
50-100m, 50-100m
Material
Plastic, Plastic
Battery Type
Button Battery, Button Battery
Item
Remote Controller for Home System
Transmitting Distance
<150m, Indoor :30~50m
Wireless Frequency
433MHz or 315MHz
Transport Package
Polybag
Production Capacity
100000
Packaging & Delivery
Package Size
2.40cm * 1.70cm * 0.30cm
Package Gross Weight
0.010kg
Product Description
Product Description:
1. Working voltage: DC2.5V-5V
2. Working current: 7mA
3. Sensitivity: -108DBM
4. Rate: MAX 10 KB/S
5. Working mode: jog, self-locking, interlocking (freely convertible)
6. Receiver module can store remote control: 16
7. Support coding chip model: EV1527, 315MHZ, 433MHZ
When the remote control button is pressed, the output of D0, D1, D2, and D3 is high level, and when it is not pressed, it is low level. Specification

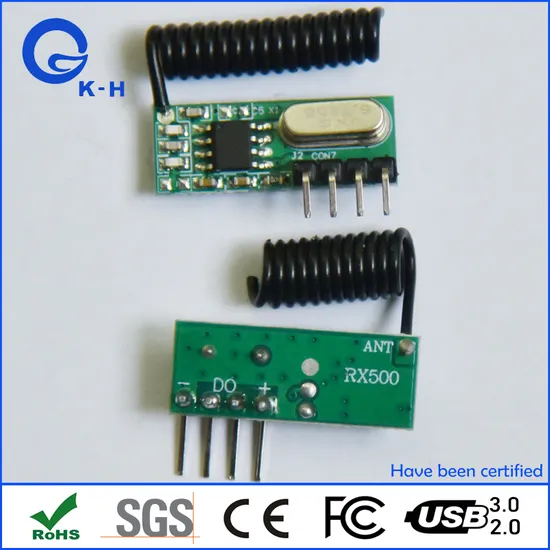

| Model | 433MHZ 315MHZ wireless receiver module |
| Operating frequency | 433.92 MHz/315MHz |
| Operating voltage | DC2.5V-5V |
| Transmit powe | >=10mW |
| Transmission Speed | 50-60KHZ |
| Maximum load | 7mA |
| Signal Sensitivity | -108DBM |
| Transmission distance | 100 meters(Open space) |
| Oscillation resistance | As customer's request |
| PCB size | 28*12MM |
| Sensitivity | better than -107dBm (50Ω) |
| Signal output method | L4:Latch-signal interlocking M4:Momentary-signal non-locking T4:Toggle-signal self-locking Signal delay function |
| Decoder chip | Learning code (Program IC), It
can learn with transmitter which is fixed
code (PT2262/PT2264/SC2262) and
learning code(EV1527) |
| Power Type | |
| Support Services | Support shipping for Amazon, free QR code stickers. WELCOME |
Working Mode Momentary, Toggle, Latched and Delay adjustable Momentary press one button is working /ON. loosen your finger on the same button is stop/OFF .one channel switch need one buttons remote control Toggle press one button for one time is working/ON .press the same button again is stop/OFF .(one channel switch need one buttons remote control Latched press one button is working/ON ,press another button is stop/OFF . ( one channel switch need 2 buttons remote control )
>>
