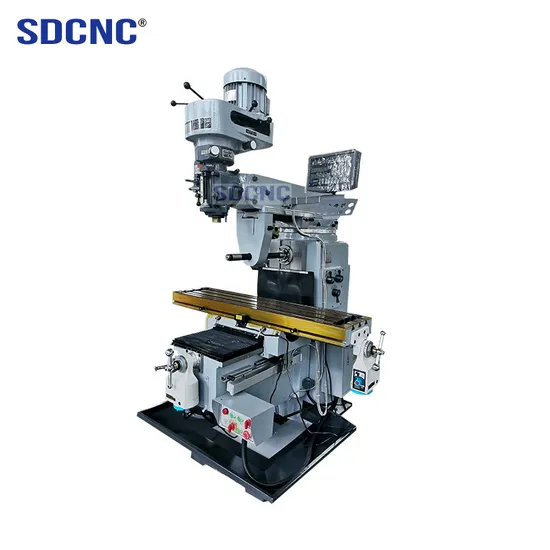

Sdcnc Milling Machine Tool Machinery CNC Vertical Turret Milling Machine 5h Manual Milling Machine

Product Description

The main performance characteristics:
1.M Hanna high strength cast iron, internal honeycomb rib structure, high rigidity, long service life.
2.Spindle adopts imported from Japan King combination diamond. After the quenching and tempering and frequency processing, after fine grinding with 4 imported bearings (other manufacturers spindle 3 bearing), ensure high quality and high precision.
3.Three shaft screw fine grinding with advanced phosphor bronze nut, durable.
4.Horizontal milling with 4 gear shaft speed (other manufacturers for the 2 gear shaft), a wide range of variable speed, torque.
5.Many parts of the machine tools have been applied for patent
Application:
The milling machine is a kind of universal light duty metal cutting machine,
Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline, etc..
Widely used in mechanical processing, mold, equipment, instrumentation and other industries.

SPECIFICATIONS

SPECIFICATIONS	Units	5H
Table size	mm	1370*305
Table travel	mm	810/ 400 /400
T slot(number-width*pitch)	-	3-16*65
Spindle taper	-	R8 ( opt.lSO40)
Spindle speed range(steps)	rpm	50HZ:65-4500,60HZ:80-5440 (16)
		( opt.(variable)65-4000)
Spindle travel	mm	127
Spindle feed range(steps)	mm	0.045,0.086,0.142 (3)
Distance between spindle nose and table surface	mm	90-510
Main motor power	kw	2.2
Head rotation (left - right)	o	±90°
Head rotation (front - rear)	o	±45°
Machine weight	kg	1600
Overall dimension	mm	1550*1650*2250

COMPANY PROFILE
Shandong Shansu CNC Machine Tool Co., Ltd. is located in the traffic developed, economic prosperity of China's Shandong Tengzhou City, is a professional engaged in CNC machine tool development and machinery manufacturing manufacturers. The company with strong technical force, high quality and good reputation to win the trust of foreign trade users. Mainly produces CNC machine tool equipment (CNC lathe, machining center horizontal machining center, vertical machining center, CNC vertical lathe, CNC pipe thread lathe, CNC milling machine, CNC drilling machine, CNC slotting machine, CNC sawing machine and other CNC products) ordinary lathe, milling machine series, shaper machine, metal sawing machine, slotting machine series, radial drilling machine, vertical drill Bed and other machine tools.

---
