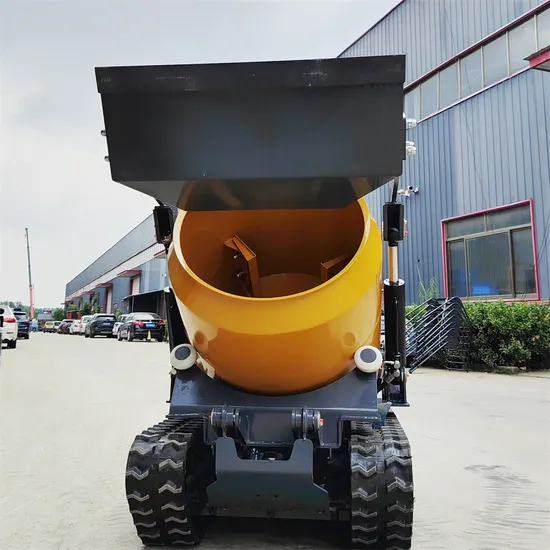

Good Quality Mini Self-Dumping Concrete Drum Mixer Crawler

US$2,535.00
1-4 Pieces
US$2,505.00
5+ Pieces

Basic Info.

Model NO.
YH-JBC400
Type
Concrete Mixer
Shotcrete Type
Wet
Structure
Cylinder Type
Productivity
35m²/h
Feeding Height
1400mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Yellow
Lengths
2750mm
Widths
900mm
Height
1300mm
Mixing Tank Capacity
0.4 M³
Bucket Capacity
0.04 M³
Rated Power
10kw/13.5 HP
Rated Speed
3600r/Min
Transport Package
Wooden Crate or Iron Frame
Trademark
Jawell
Origin
China
Production Capacity
500sets/Month

Product Description

Product Description

Cheap price concrete mixer machine crawler self loading 0.5 ton concrete mixer truck for sale
The crawler mini concrete mixer machine is very useful in the agriculture and forest industry working It can save much manual working and high efficient;it is widely used by so many customers. Free crawler transporter in mud, cicy roads,Dump design,Crawler walking,Diesel engine to walk,A great deal of extended use power.Specific size can be customized according to demand.Carrying capacity is strong,Climbing ability,simplicity of operator,Maintenance easy.
Product Parameters
Type YH-JBC400
Metric Units Imperial Units
Lengths 2750mm 108inch
Widths 900mm 35.4inch
Height 1300mm 51.1inch
Mixing tank Capacity 0.4 m³ 14.13 ft3
Bucket Capacity 0.04 m³ 1.41 ft3
Unloading angle 57°/47°
Engine Briggs&Stratton
Fuel Gasoline
Rated power 10Kw 13.5 Hp
Rated speed 3600r/min
Hydraulic motor Eaton
Triple pump 10-10-06ml/r
System pressure 16MPa 160bar=2320psi
System oil volume 60L/min
Hydraulic oil tank capacity 19.4L 4.3UK gal
Transport weight 300kg 1323Lb
Payload 500kg 1103Lb
Fuel tank capacity 5.5L 1.21 UK gal
Speed 3.5km/h (2.18mile/h)
Climbing angle 21%(12°)

Detailed Photos
Product Application

Production Process
Packaging & Shipping

FAQ

Q1: How long is the lead time for sample and mass production?
A: Sample will take 10days,mass production will need 25days.
Q2: What's the MOQ?
A: Usually the MOQ is 1set, but it will be adjusted accordingly if customers need OEM or ODM customization.
Q3: What customization can offer?
A: Color
B : Different engines (Changchai,Loncin, B&S, Honda, Yamaha,).
C: Labels customization.
D: Logo customization.
E: Package customization.
F: Manual books customization.
G: Structure components customization.
Q4: what's your warranty policy?
A: Normally warranty period is one year (non-artificial damage),we will send you new spare parts to replace by air For free. As for the engines, we will provide three years warranty for commercial engines , and one year warranty for Chinese brand engines.
Q5:What's your packing?
A:Solid carton,steel frame with carton cover or wooden case.
