60# High Precision Servo Motor for Effective Ball-Screw Automation

Product Description

1. Product Type

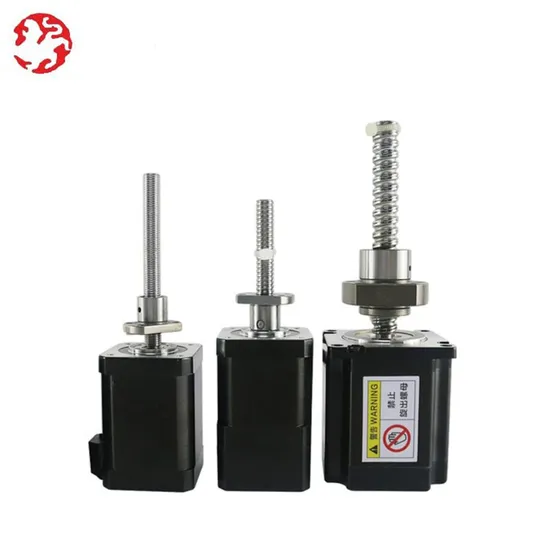

Introducing the remarkable 60# 200W Ball-Screw Servo Motor, designed to enhance your automation processes. Customize the encoder to perfectly align with your specific needs, ensuring precision and efficiency.
Our high-end motors are tailored for diverse applications, including cutting-edge industrial robots, AGVs, intelligent factories, state-of-the-art CNC machines, and the dynamic 3C electronics sector.
2. OEM & ODM Services
3. Our Advantages:3.1. Our R&D team is highly skilled, consistently pushing the boundaries to deliver innovative and reliable solutions.Our commitment to excellence shines through our rigorous quality assurance processes and reliable outcomes.
3.2. With reliability as our cornerstone, our quality control management ensures top-tier standards.
3.3. Enjoy swift delivery with our standard products, boasting lead times of approximately one week.
3.4. We offer cost-effective solutions without compromising on quality, complemented by competitive pricing.
3.5. Our products are certified by ISO9001 and CE, and adhere to RoHS requirements, guaranteeing compliance and quality.Certification: Proudly holding ISO9001 and CE certifications, our products are also RoHS compliant.
3.6.Witha one-yearwarranty under normal use, offering peace of mind and trust in our product's longevity and quality.
4. Product Features
4.1. Our entire series employs an advanced 5-pair pole scheme, setting a new standard in motor technology.
4.2. We lead the industry with an innovative compact design, maximizing efficiency and space utilization.
4.3. Our rotor's embedded magnetic steel is engineered to prevent detachment, ensuring durability and performance.
4.4. Our motors are compatible with a range of encoder types, including our proprietary encoder products, for optimal performance.
Experience superior performance advantages that set us apart from the competition.
4.5. Available in sophisticated silver and black finishes, our motors predominantly feature an elegant black exterior.
5. Technical Indicators

Technical indicators
Rated output power	200	W
Number of poles	10	P
rated voltage	48	VDC
Rated speed	3000	r/min
Maximum speed	3600	r/min
Rated torque	0.64	N.m
Instantaneous maximum torque	1.92	N.m
Rated Current	5.78	A(rms)
Instantaneous maximum current	17.4	A(rms)
Line back EMF	7.02	V/krpm
Torque coefficient	0.116	N.m/A
Moment of inertia	0.3	Kg.sq.m.10-4
Line resistance	0.591	ohm
Line inductance	1.012	mH
Brake rated voltage	without	VDC
Brake rated power	without	W
Brake static torque	without	N.m
Brake moment of inertia	without	Kg.sq.m.10-4
Weight	1.2	Kg
Feedback element	Optional
Temperature sensor	NC

Ballscrew Motor series	Type	Rated power	Ball screw lead	Length of ballscrew
SG040	40	50	1/2/2.5/5/8	50-240(Every 15mm interval)
SG040	40	100	1/2/2.5/5/8	50-240(Every 15mm interval)
SG060	60	200	1/2/2.5/5/8	50-240(Every 15mm interval)
SG060	60	400	1/2/2.5/5/8	50-240(Every 15mm interval)
SG060	60	600	1/2/2.5/5/8	50-240(Every 15mm interval)

6. Functional Features

Working hours	Continuous
Heat resistance	Class F
Body color	Black
Cooling method	Natural cooling
Vibration level	V15
Connection method	Direct connection
Installation method	Flange installation
Excitation method	Permanent magnet
Protection method	Fully enclosed ,self-cooling IP65 (except shaft penetration)
Rotation method	Counterclockwise rotation(CCW) as seen from the extension end of the motor shaft

7. Exterior Design
8. Servo Motor Wiring Definition
9. Company Profile
10. Development History
11. Motor Overview
12. Certificate and Patent Display

---
