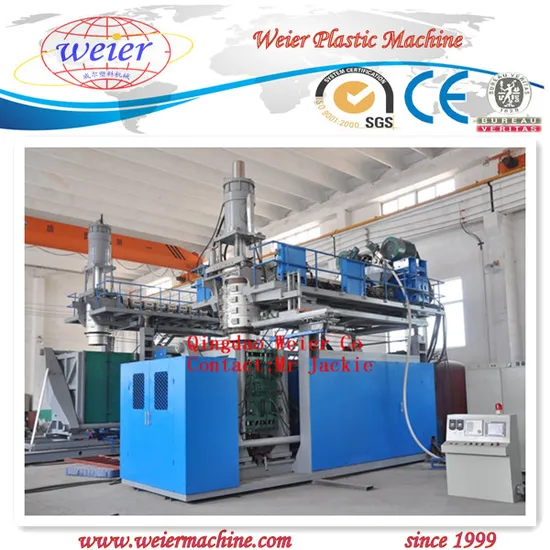

High Efficiency Full Automatic HDPE Hollow Blow Molding Machine

Product Description

HDPE blow molding machine
We are specializing in large blow moulding machine from
25L-5000L, 1-4layers, 1000L one-three layers blow moulding machine, 2000L
One-three layers blow moulding machine. This machine can produce civil barrel, IBC
Barrel, 220L double L-ring barrel, plastic tray for forklift, underground
Storage-shaped hollow products
Qingdao Weier Plastic Machinery Co., Ltd is specialized in producing full
Automatic, semi-automatic hollow blow moulding machine which suitable for
20L-5000L plastic round barrel, drum one ton square chemical barrels, double L ring Chemical drums, plastic pallets, oil tank, and some other special use plastic
Products.

Max.Product Capacity	Max capacity	L	500-1000
Accumulator capacity		L	50
Extruding System	Screw Diameter	mm	110*2
	Screw L/D Ratio		22-24
	Extruding Power	Kw	90*2
	No. of Heaters		10
	Screw Heating Power	Kw	35
	Oil pump motor power	kw	82
Die Head System	HDPE Plasticising Capapcity	Kg/Hr	450
	Max. Die-pin Diameter	mm	720
	Number of Heating Zone		6
Clamping System	Heating Power of Die Head		42
	Clamping Force	KN	900-1100
	Platen Size	mm	Accoring to sample
	Max. Mould Size	mm	1600*1980
Power	Mould Thickness	mm	Accoring to sample
	Total Power	Kw	339
	Average Power Consumption	Kw	203
	Air Pressure	Mpa	1
	Air consumption	m3/min	1
	Cooling Water Consumption	bar	3
	Cooling Water Consumption	m3/Hr	3/6
	Machine dimension	M	6.8*4.5*5.2
	machine Weight	T	50

---
