Product Description
Product Description

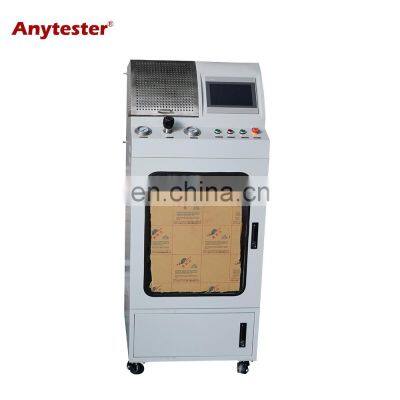

Product DescriptionProduct Application.AT225 Laboratory Melt Spinning Machine is a main key equipment in synthetic fibre production. This machine uses high temperature ceramic to heat and melt the polymer sample, and extrude the sample to be liquid trickle from a spinneret under the effect of inert gas pressure, then nascent fibers form under the effect of air cooling. Model AT225 Pressure range Design pressure: 3.6MPaInput pressure: ≤13MPa, Output pressure: ≤1.6MPa,accuracy: ±0.01MPa Temperature range 450℃ max. Temperature accuracy ±0.5℃ Heating mode Two sections of heating furnace, Mullite fiber insulation Temperature control mode Two pieces of temperature controller, high precision of ±0.5℃ Feed cylinder 150ml, stainless steel, with soaking distribution device Spinneret plate Dia. 0.2, 0.3, 0.4, 0.5 optionalL: D: 2:1~3:1 optionalkinds of hole optional (please specify before order) Rotary head Friction driven rotary head Speed range 0~1400 RPM Winder Dia. 200 mm or adjusted Max. Winder dia. 320mm Rotary head Friction driven rotary head Power supply AC110V, 50Hz Weights 260 kg Dimension 730*720*1685Details & FeaturesTouch Screen Control> Large LCD display > Touch screen control make the operation simple> English and Chinese language selectable Modularization Design> Three section heat area，control individually.> Interior of machine equip with lighting device.> electric fan cooling system Removable Winder> will able to replace the winder by new one with different Diameter.> Rotate Speed adjustable to make fiber with different fineness.316L Feed Cylinder > High quality 316L stainless steel make the machine long life> 150 ml standard tank volume > Able to accommodate 10~100 g raw materialSample after test> Be suitable for researching carbon fiber，PET, kinds of polymer， etc.>10 g sample can spinning 100 minutes>For 0.15mm spinnret hole, finished fiber with 5~15 um dia.Our CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productCertificationsPacking & Delivery Packaging Size(cm) 73 (L) * 72 (W) * 168.5 (D) Weight 260 Kg Packaging Details 1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. Payment Payment Term T/T EXW 30% T/T in advance, paid the balance before shipment FOB CFR(C&F) 30% T/T in advance, paid the balance before shipment CIF L/C L/C amount above 50,000 usd, we can accept L/C at sight West Union Amount lower than 5000usd West Union Delivery Time 30~40 days after receiving payment for one containerRelated ProductsAT225 Plunger-Type Melt Spinning Machine AT231A Continuous Melt spinning MachineAT232A Preoxidation Furnace
>>
