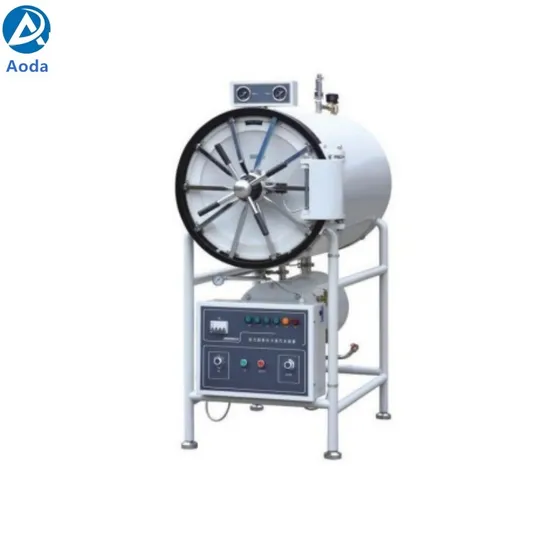

Aoda 500L Horizontal High Pressure Steam Sterilizer Autoclave for Hospital Laboratory Institutation

Product Description

Aoda 500L Horizontal high pressure steam sterilizer autoclave for hospital laboratory institutation
The horizontal automatic autoclave sterilizer, which adopte the way of gravity exchange to release the cold air from the chamber more completely toensure the reliable sterilization. The control system automatically adjust the steam inlet and outlet according to chambertemperature during sterilizing. This unit is an ideal equipment for clinics, scientific research institutes and other organizations tosterilize surgical instruments, fabric glassed, and the culture media etc.
Characteristics:
• Automatially controlled the sterilizing process, easy to operate.
• With drying function, suitable for the medical dressing drying.
• With overtemperature, overpressure autoprotect.
• The door can not be open until the pressure in the chamber is reduced to 0.027MPa. And the unit can not be started on if the Idoor doesn't close well.
• The safety valve will be open automatically when the inner pressure over 0.24MPa and the steam would be exhausted the water tank.
• Automatically cut off the power if the waterlack happened, and alarm at the meanwhile.
• The chamber of the sterilizer is made of stainless steel. Specification

Horizontal High pressure steam sterilizer autoclave
MODEL	WS-150YDA	WS-200YDA	WS-280YDA	WS-400YDA	WS-500YDA
Technical Data
Stenilizing chamber volume	150L φ440×1000	200L φ515×1000	280L φ600×1000	400L φ700×1100	500L φ700×1300mm
Working pressure	0.22Mpa
Working temperature	134ºC
Temperature adjust range	40ºC-134ºC
Time for sterilization	0-60min
Time for drying	0-60min
Heat average	≤±2ºC
Power	9kw/380V 50Hz	9kw/380V 50Hz	12kw/380V 50Hz	18kw/380V 50Hz	18kw/380V 50Hz
Dimension(mm)	1400×600×1300	1400×670×1650	1400×770×1780	1430×880×1830	1800×900×1820
Exerior package dimension(mm)	1550×750×1850	1560×820×1850	1680×920×2100	1600×1050×2100	1850×1050×2100
G.W/N.W	320/240kg	350/260kg	465/365Kg	530/420Kg	580/470Kg

Detailed Photos
Factory & Workshop
Packaging & Shipping
FAQ
Q : What products can you offer?
A : We are a one-stop laboratory instrument supplier that can provide customers with products and solutions according to their needs.
Q : How long is your usual delivery time?
A : Our products are usually shipped out 5-7 days after receiving payment.
Q : What transportation methods do you support?
A : We support express delivery (DHL/FEDEX/UPS/TNT), trucks, trains, planes, and ships.
Q : What trade methods can you accept?
A : We support EXW, FCA, FOB, CFR, CPT etc

---
