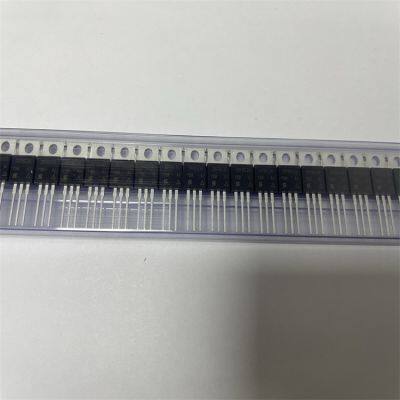

Low Price of IRFBG30PBF New Integrated Circuit IRFBG30PBF in stock HOT

Product Details

Product Description

Product Description
Factory
Mfr. #:
IRFBG30PBF
Manufacturer: Vishay
Product Category: MOSFET
RoHS: Details
Technology: Si
Mounting Style: Through Hole
Package / Case: TO-220AB-3
Transistor Polarity: N-Channel
Number of Channels: 1 Channel
Vds - Drain-Source Breakdown Voltage: 1 kV
Id - Continuous Drain Current: 3.1 A
Rds On - Drain-Source Resistance: 5 Ohms
Vgs - Gate-Source Voltage: - 20 V, + 20 V
Vgs th - Gate-Source Threshold Voltage: 4 V
Qg - Gate Charge: 80 nC
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 150 C
Pd - Power Dissipation: 125 W
Channel Mode: Enhancement
Series: IRFBG
Packaging: Tube
Brand: Vishay Semiconductors
Configuration: Single
Fall Time: 29 ns
Product Type: MOSFET
Rise Time: 25 ns
Factory Pack Quantity: 1000
Subcategory: MOSFETs
Transistor Type: 1 N-Channel
Typical Turn-Off Delay Time: 89 ns
Typical Turn-On Delay Time: 12 ns
Part # Aliases: IRFBG30PBF-BE3
Unit Weight: 0.068784 oz
price: 1.31~2.96

---
