Saifan Woodworking Machinery Wooden Package Machine Wood Pallet Making Machine

Product Description

Product Description
HICAS Wooden Pallet Production Line Pallet Making Machine
1) wood cross cutting off machine
This machine is SIEMENS PLC control, free combination cutting off size, crosscutting, continuously and automatically cut wood material to stringers or blocks.
Video link about machine working
https://hicasmachinery.en.made-in-china.com=8253RLmw83U&list Product Parameters

Model	SF606	SF6061
Cutting length	Max. 2m/ 4m/ 6m
Cutting height	10-120mm	10-140mm
Cutting width	30- 200mm	30-300mm
Cutting section	Max. 120*150mm/100*200mm	Max.140*280mm/120*300mm
Feeding speed	5-30m/min
Cutting speed	40pcs/min	45pcs/min
Blade diameter	450mm*30mm	600mm*30mm
Cutter spindle rotation speed	3000rpm	3150rpm
Servo drive motor power	0.75kw	1kw
Cutting motor power	7,5kw/11HP	11kw/15HP
Total power	8.5kw	12.5kw
Pressing method	Cylinder, air pressure 0.5-0.7Mpa
Cutting tolerance	In +/-1mm
Machine working dimension	L*W*H, 5.4m*1.2m*1.6m/7.4m*1.2m*1.6m/9.4m*1.2m*1.6m

2) wood pallet notcher machine
Used for making notching for American stringer pallet, the notching is used for forklift.
Video link about this machine working, https://youtu.be/Nfi9giLzoAk

No.	Parameter	SF7011 single head	SF7012 double head
1	Operator needed	1 person
2	Power	Cutter motor 15kw	Cutter motor, 2*15kw=30kw
			Feeding motor, 0.75kw
			Width adjustment motor,0.75kw
			Total power, 31.5kw
3	Voltage	380V 3Phase 50Hz. Can customized, with extra cost $200
4	Wood length	800-1350mm	800-1900mm
5	Notching thickness	Max. 150mm
6	Notching depth	Max. 65mm adjustable	Max. 70mm adjustable
7	Notching width	Max. 304.8mm adjustable	Max. 370mm adjustable
8	Number of cutting blades	2pc side +20pc middle	2pc side +25pc middle
9	Notching speed	600pc/hour	1200-1800pc/h
10	Tolerance	≤1mm	≤1mm
11	Net dimension L*W*H	1350*980*1100mm	2450*1600*1550mm
12	Net Weight	800kg	1400kg
13	Control system	Siemens PLC	Siemens PLC
14	Exhaust duct	1pc diameter 160mm	2pc diameter 160mm
15	Cutter type	Indexable

3) wood pallet corner cutting machine
This machine is used for cutting wood pallet corner, can cut round corner or straight corner.
Video link about this machine working, https://youtu.be/04uB3h3g7E8

Machine name	Double head	Single head
Model No.	SF7042	SF7041
Power	2*4kw=8kw	4KW
Cutter type	R=50mm round cutter, or straight cutter	R=50mm round cutter, or straight cutter
Working width	800mm≤W≤1350mm	800mm≤W≤1350mm
Working height	70mm≤H≤170mm	70mm≤H≤170mm
Productivity	1000-1400pc/8h	700-950pc/8h
Working pressure	0.6-0.7Mpa	0.6-0.7Mpa
Machine dimension	2700*2000*1250mm	1850mm*1150mm*1550mm
Machine weight	About 800kg	About 500kg

4) wood pallet chamfer machine
Used for making chamfer in wood pallet bottom deck board, to easy for fork go in and out.
Video link about this machine working https://hicasmachinery.en.made-in-china.com

Cutting motor	4kw
Convey servo motor	1kw
Hydraulic motor	2.2kw
Total motor	7.2kw
Voltage	380v, 3phase, 50Hz.
Cutter type	45° V cutter, left and right
Working length	600mm≤L≤1500mm
Working thickness	17mm≤H≤35mm
Working width	80mm≤W≤150mm
Productivity	500-700pc/h
Hydraulic pressure	0.4-0.5Mpa
Control system	Siemens
Machine dimension	4450*800*1400mm
Machine weight	800kg

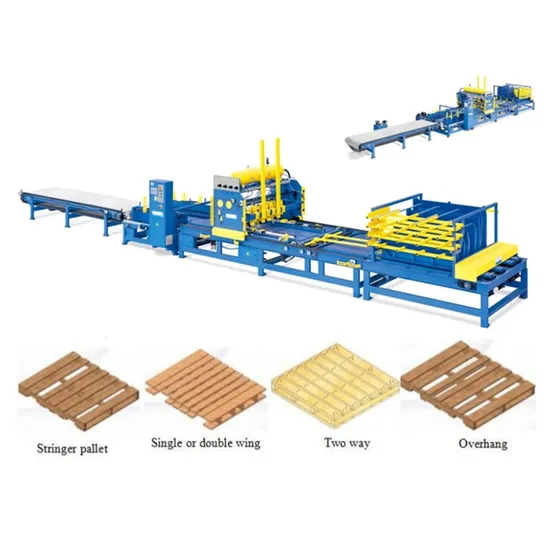

5) stringer pallet nailing machine
Automatic assemble stringer (American pallets) wooden pallets.
Video link of this machine working
https://hicasmachinery.en.made-in-china.com=LYMFPl9-jrM&list

Related Products

SF1000	Wooden Pallet Production Line
SF2000	Wood Pallet Mat Nailing Machine
SF9022	Wood Pallet Legs Nailing Machine
SF9025	Stringer Wood Pallet Making Machine
SF9010	Stringer Wood Pallet Nailing Machine
SF9026	Stringer Wood Pallet Making Machine
SF7013	Double Heads Notcher
SF7030	Wood Pallet Chamfer Machine
SF7041	Pallet Round Corner Cutter Machine
SF6060	Wood Cross Cut Off Saw
SF6021	Wood Double Heads Trim Saw Machine
SF8005	Multi Heads Trim Saw

Company Profile
1. We have our own woodworking machinery factory.
2. 8 years exportation experience, have customers in more than 40 countries.
3. Engineer team with +20 years experience.
4. Diamond supplier in made-in-china.
5. Our services
Pre-sales service: To provide customers with the best on-site solutions with the best products and technologies. In order to better serve our customers, we have established a complete pre-sales service support system to provide the most suitable models according to customer needs. Equipment and solutions, together with customers to discuss and improve the customer's production process, processing technology problems.
After-sales service: HICAS after-sales customer service team, responsive. We can solve various problems for customers in the shortest time.
Tracking service: We track and record the equipment purchased by each customer and return to it regularly. Understand customer usage and improve feedback and feedback, and strive to be responsive to every customer. Solve every sanding problem.
6.Our products are widely sold in made-in-china.
7.Customer feedbacks
We are looking for Good customers like you! And Distributor or Agents Wanted! ! !
8.Our company and products have been verified onsite by SGS Group
9.Our CE Certifications
10.Our Packaging & Shipping
FAQ
1. Do you offer installation?Our machines are almost assembled before loading in container. It is very easy for installation in your workshop. Video guidance and English manual can be provided freely. Engineers can be sent to service in site if the buyer request. all cost in buyer's account (the machine quotation does not include this cost), including all transportation cost between China and buyer factory (two way), visa and Insurance cost, hotel and eating in buyer country is responsible by buyer, extra labor salary USD200/day.2. Where can we get replacement parts?
Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.
3. How long can we get replacement parts?
Common spare parts can be delivered by express within one week. Some parts can be purchased locally.
4. What technical support do you offer?
1) Technical support by phone, email or WhatsApp/Skype around the clock.
2) Friendly English version manual and operation video.
3) Engineer available to service machinery overseas.
5. Can you customized the machine?
Our machines can be customized made according to buyers' request.
6. What other machine do you offer?
We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like edge banding machine, CNC router, drilling machine, saw machine,roller coater, spraying machine, membrane press can be provided as well.
7. Can you set the system to our language?
Our system supports common languages like Chinese, English, Russian.etc.

---
