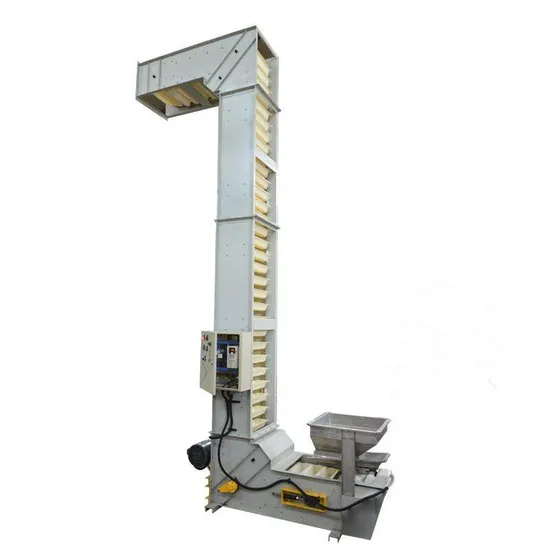

Z-Type Continuous Vertical Conveyor Bucket Elevator

Product Description

Production Description
Bucket elevator is a commonly used vertical conveying equipment, mainly used to transport materials such as particles, powders, or loose materials from low to high. It is composed of multiple components such as the feeding port, sprocket, discharge port, and driving device. The bucket conveyor is driven by a rotating chain or belt to operate, achieving continuous material transportation.
Structures
1,Compact structure, small footprint, high lifting height, good sealing performance, and no damage to materials
2,Flexible composition, capable of combining horizontal, vertical, and horizontal conveying
3, Can be fed at single or multiple points
4,Low dynamic power, energy-saving, environmentally friendly, and easy maintenance

Technical Parameters

Model Parameters			RXZD-3	RXZD-6	RXZD-10	RXZD-15	RXZD-20	RXZD-25	RXZD-30	RXZD-35
Conveying capacity	100%	m³/h	6	15	22	30	45	56	68	80
	75%	L	4.5	11	16.5	22.5	33.5	42	51	60
Silo	volume	mm	3	6	10	15	20	25	30	35
	Width	mm	370	470	870	500	560	690	815	940
	Distance	mm	228.6			330
Chain	chain pitch	mm	38.1			66
	Chain Qty	-	2
	Single chain breaking load(min)	KN	37.6			90
sprocket	Tooth number	-	26			22
	Pitch Diameter	mm	316.09			463.76
Hopper running speed		m/s	≤0.3			≤0.25
Max lifting height		m	≤45
Max horizontal conveying distance			≤100
Total Power		kw	0.75-22			1.1-22	2.2-22	5.5-22	5.5-30

Optional configuration
Good sealing performance
The entire machine shell is sealed, with minimal leakage and environmental pollution, meeting environmental requirements.
Reduced fragmentation of materials with high integrity
The entire process of feeding, conveying, and unloading has almost no damage to the object, reducing the scrap rate.
Multi point feeding/unloading
It can automatically feed/unload materials at single or multiple points, suitable for feeding multiple silos in a row.
Product features:
1,Environmentally friendly
The entire machine shell is sealed, and there is no leakage or dust flying during operation, meeting environmental requirements.
2, 0 Damaged
The entire process of feeding, conveying, and unloading does not damage the object itself, reducing the scrap rate.
3,Types Models
Can be used in Z-type, C-type, and ZC mixed types, suitable for various occasions.
4, Point Cutting
It can automatically cut materials at single or multiple points, suitable for feeding multiple silos in a row.
5, Anti Overflow Materials
It can be equipped with a vibrating feeder and fed at a constant speed, overcoming the phenomenon of full hopper overflow.
6. Space Saving
Compact structure and small footprint.
Application:
The stainless steel Z-type elevator, due to its flexible application and diverse layout forms, can simultaneously transport bulk materials horizontally and vertically, and can achieve multi-point feeding and multi-point discharge. The transportation of granular materials is not easy to break, and the equipment has a wide range of applications and strong adaptability. It is a good material transportation equipment. At present, it has been applied in industries such as chemical industry, medical industry, coal chemical industry, refractory materials, industrial activated carbon, metallurgy, industrial solid waste, non-metallic mineral products, etc.
