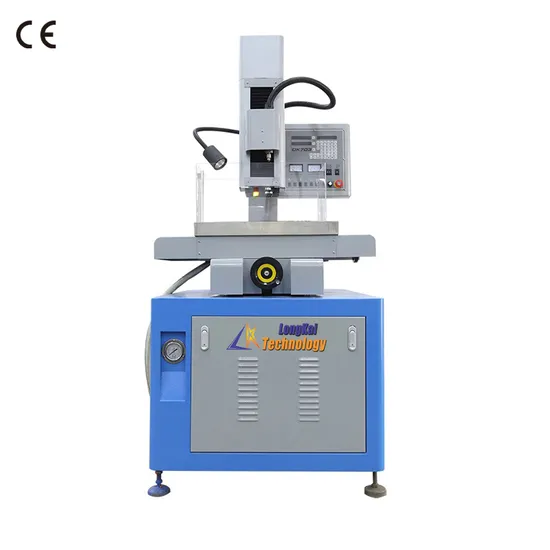

Factory Supply Small Hole Spark Erosion EDM Drilling Machine Dd703

Product Description

1.Basic Model and Parameters of EDM drill:

Parameters	DK703	DD703
Worktable	320*430 mm	420*360 mm
Worktable travel	200*300 mm	300*400 mm
Spindle head travel	300 mm	300 mm
Servo stroke	270 mm	370 mm
Electrode diameter	0.3-3.0 mm	0.3-3.0 mm
Maximum processing speed	5-40	20-120
Maximum depth diameter ratio	300:1	300:1
Working pressure	7	7
Maximum processing current	30A	40A
Maximum power consumption	3 KVA	3 KVA
control mode	Z axis automatic	Z axis automatic
Worktable Weight bearing	250-300 kg	250-300 kg
Working tank	30 L	30 L
Working fluid	Water, saponification liquid	Water, saponification liquid
Working fluid filtration mode	Shallow gap	Shallow gap
Machine tool power supply	380V50Hz	380V50Hz
Secondary stroke control mode	manual	motor-driven
DRO	Two axis digital display	Two axis digital display
overall dimensions	1200*900*1900mm	900x1200x1850 mm
Machine weight	700 kg	750 kg

2.Performance characteristics
The machine can process hole diameter of Φ 0.3 ~ Φ 4.0mm, and the maximum depth
Diameter ratio can reach more than 300:1.
The processing speed can be up to 5-40mm per minute, the servo stroke is 300, the ultra long electrode tube can be used, and the drug saving electrode tube is 15%.3.The machine be able to process various conductive materials such as stainless steel, quenched steel, hard alloy, copper, aluminum, etc.
4.The machine can penetrate directly from inclined plane and curved surface 5.The servo lifting adopts double linear guide rail and electric lifting to ensure the processing accuracy and speed of the product
Spindle height 300mm
The machine bed is equipped with a water pump pressure observation window, which makes it more convenient and simple to observe and adjust the water pump pressure.
8.X-axis and Y-axis of worktable are equipped with grating digital display, with accurate operation
About us
Suzhou Longkai Electromechanical Technology Co., Ltd. was established in May 2008. It is a modern enterprise specializing in CNC equipment development, production, sales and industrial automation. Its main products are vertical processing center, CNC drilling and milling machine, CNC lathe, fast wire cutting, mid-wire cutting, turret milling machine, precision grinder, CNC drilling, EDM drilling and other mechanical processing equipment.
In order to develop the domestic and foreign markets, Longkai Technology upholds the business philosophy of stable product performance and excellent quality, and invites agents and franchisees.
Provide customers with the best value products and the most thoughtful service is the management philosophy of Longkai. Join Longkai. Create the future!
Our Services:
1. Your inquiry and email will be replied within 24hours. If you need to develop products with your own specification, we can help you to work it out.
2. Welcome to be our distributors in your country, we can cooperate with each other to do better business.
3. Always be honest, never lie to customer, and never declare anything we don't have.
4. Customer First:,we offer best Quality and Service!
FAQ:
1. Payment Method:
30% ~ 50% deposit T/T in advance, rest before delivery
2. Delivery Time:
15-20 working days after payment
3. MOQ:
1 set machine
If you need machine with your own specification, logo, packing, etc, please negotiate with us to customize.
4. Shipping:
For machine: Usually by sea;
For documents: by international express, eg. DHL,TNT or EMS

---
