US$0.70-5.00
|
3,000 Meters
(MOQ)
|
Basic Info.
Model NO.
PVC Steel Wire Hose
Color
Clear, White , Blue, Yellow, Red, Green and
Certification
ISO9001:2015
Features
Flexible, Transparent
1X40hc
Can Load 16-18 Tons
Transport Package
Plastic Film
Production Capacity
500000 Meter/Meters Per Month
Product Description

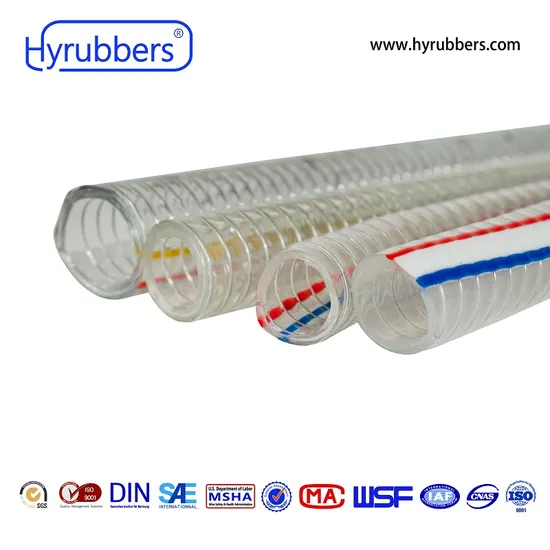

Anti-UV PVC Steel Wire Reinforced Hose Suction Hose
CONSTRUCTION : PVC and one fiber braided reinforcement. Transparent without poison, pull-resist and corrosion-resist.
APPLICATIONS : Conveying water, air and powder in industry and agriculture.
Specification of pvc hose pipe
| SIZE | W.P | B.P |
| I.D | O.D | AT 23ºC |
| inch | mm | mm | Bar | Bar |
| 14" | 6 | 11 | 10 | 30 |
| 5/16" | 8 | 14 | 12 | 32 |
| 3/8" | 10 | 15 | 8 | 25 |
| 1/2" | 13 | 18 | 6 | 18 |
| 5/8" | 16 | 21 | 7 | 20 |
| 3/4" | 19 | 24 | 6 | 18 |
| 1" | 25 | 32 | 6 | 18 |
| 1-1/4" | 32 | 40 | 5 | 15 |
| 1-1/2" | 38 | 47 | 5 | 15 |
| 1-3/4" | 45 | 55 | 5 | 15 |
| 2" | 50 | 59 | 4 | 12 |
| 2" | 50 | 60 | 4 | 12 |
| Steel Wire Reinforced PVC Hose |
| Size | ID | OD(±0.2) | Length | WP | BP | Weight | Packing |
| 3/8" | 9 | 14.0 | 100 | -1~10 | 30 | 15 | 0.027 |
| 3/8" | 10 | 15.0 | 100 | -1~10 | 30 | 16 | 0.041 |
| 1/2" | 12 | 17.0 | 100 | -1~9 | 30 | 17 | 0.044 |
| 5/8" | 15 | 21.0 | 100 | -1~9 | 30 | 26 | 0.074 |
| 5/8" | 16 | 20.0 | 100 | -1~8 | 20 | 18 | 0.061 |
| 5/8" | 16 | 23.0 | 100 | -1~8 | 30 | 32 | 0.063 |
| 3/4" | 19 | 25.5 | 50 | -1~8 | 20 | 15 | 0.050 |
| 3/4" | 20 | 26.0 | 50 | -1~8 | 20 | 16 | 0.050 |
| 3/4" | 20 | 24.5 | 50 | -1~8 | 20 | 13 | 0.050 |
| 7/8" | 22 | 30.0 | 50 | -1~8 | 20 | 25 | 0.065 |
| 7/8" | 22 | 27.0 | 50 | -1~8 | 20 | 15 | 0.058 |
| 1" | 25 | 29.0 | 50 | -1~7 | 20 | 11 | 0.065 |
| 1" | 25 | 30.0 | 50 | -1~7 | 20 | 18 | 0.069 |
| 1" | 25 | 32.0 | 50 | -1~7 | 20 | 25 | 0.078 |
| 1-1/4" | 32 | 36.0 | 50 | -1~5 | 19 | 20 | 0.124 |
| 1-1/4" | 32 | 38.6 | 50 | -1~5 | 19 | 30 | 0.133 |
| 1-1/4" | 32 | 41.0 | 50 | -1~6 | 20 | 40 | 0.152 |
| 1-1/4" | 32 | 41.6 | 50 | -1~6 | 20 | 45 | 0.130 |
| 1-1/2" | 38 | 42.8 | 50 | -1~5 | 16 | 25 | 0.154 |
| 1-1/2" | 38 | 44.0 | 50 | -1~5 | 16 | 30 | 0.161 |
| 1-1/2" | 38 | 44.6 | 50 | -1~5 | 16 | 35 | 0.169 |
| 1-1/2" | 38 | 45.5 | 50 | -1~6 | 18 | 40 | 0.173 |
| 1-1/2" | 38 | 46.4 | 50 | -1~6 | 18 | 45 | 0.184 |
| 1-3/4" | 45 | 50.0 | 50 | -1~5 | 16 | 30 | 0.198 |
| 1-3/4" | 45 | 52.0 | 50 | -1~5 | 16 | 40 | 0.211 |
| 1-3/4" | 45 | 53.0 | 50 | -1~5 | 16 | 50 | 0.229 |
| 1-7/8" | 48 | 54.6 | 50 | -1~5 | 15 | 40 | 0.234 |
| 1-7/8" | 48 | 56.4 | 50 | -1~5 | 15 | 60 | 0.262 |
| 1-7/8" | 48 | 58.0 | 50 | -1~5 | 15 | 70 | 0.267 |
| 2" | 50 | 55.6 | 50 | -1~5 | 10 | 40 | 0.258 |
| 2" | 50 | 57.2 | 50 | -1~5 | 14 | 50 | 0.267 |
| 2" | 50 | 58.2 | 50 | -1~5 | 14 | 60 | 0.273 |
| 2" | 50 | 60.0 | 50 | -1~5 | 15 | 70 | 0.288 |
| 2-1/2" | 64 | 72.3 | 40 | -1~4 | 10 | 60 | 0.351 |
| 2-1/2" | 64 | 75.0 | 40 | -1~4 | 10 | 80 | 0.370 |
| 2-1/2" | 64 | 76.0 | 40 | -1~4 | 10 | 94 | 0.370 |
| 2-1/2" | 64 | 77.0 | 40 | -1~4 | 10 | 100 | 0.389 |
| 3" | 75 | 84.0 | 40 | -1~4 | 10 | 72 | 0.504 |
| 3" | 75 | 85.0 | 40 | -1~4 | 10 | 80 | 0.504 |
| 3" | 75 | 87.0 | 40 | -1~4 | 10 | 100 | 0.681 |
| 3" | 75 | 89.0 | 40 | -1~4 | 10 | 120 | 0.714 |
| 4" | 102 | 112.0 | 30 | -1~3 | 10 | 90 | 0.666 |
| 4" | 102 | 114.0 | 30 | -1~3 | 10 | 105 | 0.676 |
| 4" | 102 | 114.0 | 30 | -1~3 | 10 | 120 | 0.706 |
| 4" | 102 | 118 | 30 | -1~3 | 10 | 144 | 0.716 |
Competitive Advantage
1) We are professional manufacturer with 11 years' experience, enjoy good reputation oversea
2) Full range of advanced equipment ,testing line ensure production capacity and satisfactory quality
3) Top quality with competitive price and fast delivery bring us very good reputation all over the world .
4Our Hose includes such features as constant working pressures, low expansion, low temperature
and high temperature applications
Company Information
HYRUBBERS Co., Ltd. is a manufacturer with well-equipped testing facilities and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in Mining, machines and other industries.
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
>>
