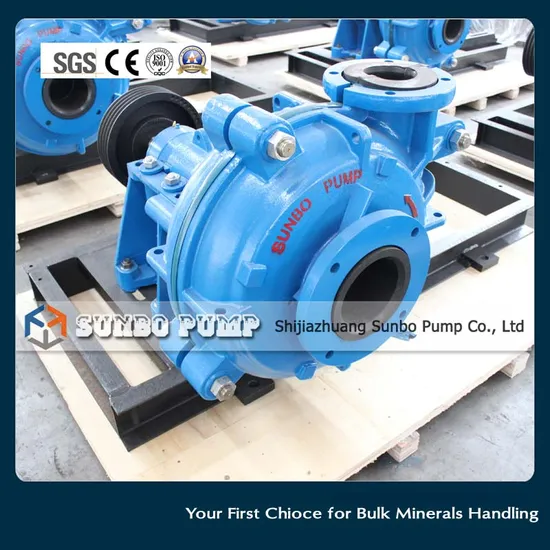

6/4D Hot Mining Rubber Lined Slurry Pump

Product Description

HS (R)Series Introduction:
HS(R) pump is horizontal centrifugal heavy duty slurry pump and it is designed for the continuous pumping of high abrasive, high density slurries with minimal maintenance requirements. It will maintain high efficiency over the wear life of its components. The rubber and metal lined pumps feature casings which are radially split into two halves. Minimum casing bolts reduce maintenance and minimise downtime. The pumps of HS can be installed as multi-stage series.
Features:
1.Replaceable wear-resistant metal or rubber liners and impellers, long service life time.
2. Easy to adjust the space between impeller and front liner and can be removed completely when maintaining.
3.Bearing assembly use grease lubrication.
4. Seal types: packing seal, expeller seal and mechanical seal.
5. Discharge direction can be installed at intervals of 45 degrees as request and oriented to any eight positions to suit applications.
6. Drive types: V belt drive, gear reducer drive, fluid coupling drive, and frequency conversion drive devices.
7. Wide application, good NPSH and high efficiency. The series pump can be installed in multistage to meet the delivery for long distance.

Specification :
D:25 mm to 450 mm
Q: to 5,000 m3/hr
H: to 73 m

Performance Sheet:

Pump Model	Allowable Max. Power(KW)	Clear Water Performance
		Capacity Q		Head H(m)	Speed n(r/min)	Max.Eff. η%	NPSH (m)	Impeller Dia.
		m3/h	l/s
25HS-B	15	12.6-28.8	3.5-8	6-68	1200-3800	40	2-4	152
25HSR-B	15	10.8-25.2	3-7	7-52	1400-3400	35
25HHS-C	30	16.2-34.2	4.5-9.5	25-92	1400-2200	20	2-5.5	330
40HS-B	15	32.4-72	9-20	6-58	1200-3200	45	3.5-8	184
40HSR-B	15	25.2-54	7-15	5.5-41	1000-2600	50	2.5-5	178
50HS-C	30	39.6-86.4	11-24	12-64	1300-2700	55	4-6	214
50HSR-C	30	36-75.6	10-21	13-39	1300-2100		2-4	213
50HHS-D	60	68.4-136.8	19-38	25-87	850-1400	47	3-7.5	457
75HS-C	30	86.4-198	24-55	9-52	1000-2200	71	4-6	245
75HS-D	60	86.4-198	24-55	9-52	1000-2200	71	4-6	245
75HSR-C	30	79.2-180	22-50	5-34.5	800-1800	59	3-5	245
75HSR-D	60	79.2-180	22-50	5-34.5	800-1800	59	3-5	245
100HS-D	60	162-360	45-100	12-56	800-1550	65	5-8	365
100HS-E	120	162-360	45-100	12-56	800-1550	65	5-8	365
100HSR-D	60	144-324	40-90	12-45	800-1350	65	3-5	365
100HSR-E	120	144-324	40-90	12-45	800-1350	65	3-5	365
100HHS-F	260	324-720	90-200	30-118	600-1000	64	3-8	711
150HS-E	120	360-828	100-230	10-61	500-1140	72	2-9	510
150HS-S	300	360-828	100-230	10-61	500-1140	72	2-9	510
150HSR-E	120	324-720	90-200	7-49	400-1000	65	5-10	510
150HSR-R	300	324-720	90-200	7-49	400-1000	65	5-10	510
150HHS-S	560	468-1008	130-280	20-94	500-1000	65	4-12	711
200HS-ST	560	612-1368	170-380	11-61	400-850	71	4-10	686
200HSR-ST	560	540-1188	200-450	7-45	300-650	80	2.5-7.5	686
200MS-E	120	540-1440	150-400	14-60	600-1000	73	4-10	549
200MS-R	300	540-1440	150-400	14-60	600-1000	73	4-10	549
250HS-ST	560	936-1980	260-550	7-68	300-800	82	6	762
250HSR-ST	560	720-1620	320-700	13-14	300-500	79	3-8	762
300HS-ST	560	1260-2772	350-770	13-63	300-600	77	3-10	965
300HSR-ST	560	1152-2520	380-850	11-63	250-550	79	4-10	965
350HS-ST	1200	1368-3060	380-850	11-63	250-550	79	4-10	1067
400HS-TU	1200	2160-5054	600-1400	8-66	200-500	80	4.5-9	1245
450HS-TU	1200	2520-5400	700-1500	13-57	200-400	85	5-10	1370

Remark:
1.Capacity range recommended:50%Q'≤Q≤110%Q'(Q' Appropriate to capacity at highest efficiency point).
2.NPSH: appropriate to point Q recommended at highest speed.
Application:
HS(R) series slurry pump is widely used in metallurgy, mining, mineral processing, dredging, de-watering, water treatment, coal washing, mill, cyclone feed, tailing, power, building material...etc. various industrial sites. HS pumps are called different names for different working duties: Mineral processing pump, Mill discharge slurry Pump, Booster pump, Feeding pump, Tailing pump,Transfer pump Thickner Underflow Pump, De-watering screen pump, Pressure pump, Concentrate pump...

---
