Product purpose:

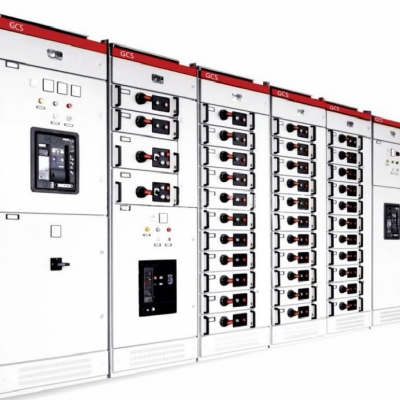

GCS type low-voltage withdrawal switchgear is suitable for AC 50Hz, rated working voltage 400V, cut-off voltage 690V, rated current 4000A and below the low-voltage power supply system. Widely used in power plants, substations, industrial and mining enterprises, airports, terminals, petroleum, chemical, metallurgical, textile, high-rise buildings and other industries, as power generation, transmission and distribution, power conversion and control.
PRODUCT FEATURES
The main frame is made of 8MF section steel, and the two sides of the section steel have φ9.2mm mounting holes with modulus of 20mm and 100mm respectively, making the internal installation flexible and convenient.
Cabinet design fully consider the problem of heat dissipation in operation. The upper and lower parts of the cabinet are provided with a different number of heat dissipation slots, so that the closed cabinet forms a natural ventilation channel from bottom to bottom to achieve the purpose of heat dissipation;
Each function room of the device is isolated from each other, and the compartment is divided into function unit room, bus bar room and cable room, and the function of each room is relatively independent.
The top cover of the cabinet can be removed when necessary to facilitate the assembly and adjustment of the main bus line on site. The four corners of the top of the cabinet are equipped with hanging rings for lifting and loading;
With blocking function, self-casting function, maintenance status function;
Support multiple operation modes (optional);
Communication function: The system can be equipped with RS485 or RS232 communication interface, support MODBUS communication protocol (optional);
Intelligent monitoring function (optional).
