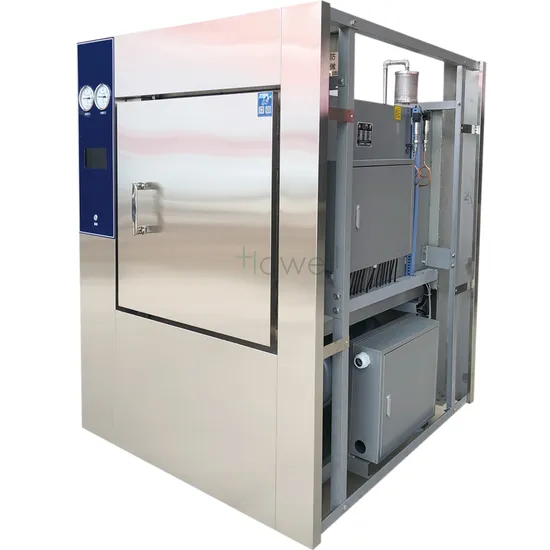

Pulsating Vacuum Sterilizer and Pulse Vacuum Autoclave

Product Description

Product Description Pulsating Vacuum Sterilizer and Pulse Vacuum Autoclave
Model HE-M-300/Model HE-M-400/Model HE-M-600/Model HE-M-800Model HE-M-1000/Model HE-M-1200/Model HE-M-1500
Model HE-M-300(S)/Model HE-M-400(S)/ Model HE-M-600(S)/Model HE-M-800(S)Model HE-M-1000(S)/Model HE-M-1200(S) / Model HE-M-1500(S)
Features:
1.One-cClick touch operation, with color dynamic real-time display during the whole running process.With a brand-new operation interface,the LCD screencan display information such as temperature, pressure, time,running status, etc., which makes the sterilization infomation more ntitve and clear, and isconvenient for users to observe the running status of equipment. At the same time ,i tis equipped with printing function,which can reoord the whole steriza-tion process.
2.The handwheel rotates to open the door, which is simple, convenient and trouble-free. lmparted medica silicone sealing ring is durable. Double-layerstructure, inner chamber lner, door panel made of 2.SUS3042. material, afer mechanical polising, being smooth and fat,without dead angle, easy to cean.3.The door is equipped with a safety interfock device, which automatically loks when there is pressure in the sterlization chamber and cannot be openedto ensure the satety of personnel, and is equipped with a door control switch, only when the door is closed in place can the power be turned on.
4.Using high-efficiency vacuum pumping system, the working noise is low, the limit vacuum can reach above -9OKpa, the sterlizatior
vacuum pumping is
fast, the dryness of articles is good, and the sterilization is more thorough.
5.Adopt high-qulty pneumatic vave, electromagnetic valve and water ring veacum pump. The whole electical components are morerelable,stable andhave a longer service life.
6.There are many program ypes such as fabric sterilization, instument strilization , iouid sterlization, BD & Helx ,sel-set sterlization and manual pro-gram, etc.

Product Parameters

Model	HE-M300/HE-M-300S	HE-M400/HE-M-400S	HE-M600/HE-M-600S	HE-M800/HE-M-800S	HE-M1000/HE-M-1000S	HE-M1200/HE-M-1200S	HE-M1500/HE-M-1500S
Capaclty of sterilization chamber (L)	300	400	600	800	1000	1200	1500
Specitication and dimension of stenilization chamber (mm) Mochanical type	900 *550*650	1200*550 *650	1358*630*750	1550*650 *800	1500*680 *1180	1500*750*1080	1850*750*1080
Overall dimension (mm)Mechanical type	1300*1220*1540	1500*1260 * 1800	1710*1380 *1900	1900*1360 *2000	2120*1360 *1910	2120 *1360*1910	2200*1430 *1960
Specification and dimenslon of sterlization charmber (mm) Manual type (S)	900*550*650	1150*550*650	1350*630*750	1570*650*800	1200 * 900* 1000	1400*900 *1000	1700 *900*1000
Overall dimension (mm)Manual type (S)	1480*1200 *1800	1620*1200 *1760	1900 *1300*1830	1950 *1360 *2000	1800*1650*1950	1950*1600 *1900	2250*1600*1900
Net weight (kg)	600	1100	1300	1500	1400	1500	1900
Design pressure (Mpa)	0.25	0.25	0.25	0.25	0.25	0.25	0.25
Design temperature(ºC)	150	150	150	150	150	150	150
Rated working pressure (Mpa)	0.22	0.22	0.22	0.22	0.22	0.22	0.22
Working temperature(ºC)	135	135	135	135	135	135	135
Temperature adjustment range (ºC)	115-135	115-135	115-135	115-135	115-135	115-135	115-135
lemperature control fluctuation degree (ºC)	±1	±1	±1	±1	±1	±1	±1
Times of pulsating	0-99 adjusting	0-99 adjusting	0-99 adjusting	0-99 adjusting	0-99 adjusting	0-99 adjusting	0-99 adjusting
Setting scope of sterilization time (s)	0~9999	0~9999	0~9999	0~9999	0~9999	0~9999	0~9999
Setting scope of drying time (s)	0~9999	0~9999	0~9999	0~9999	0~9999	0~9999	0~9999
lnput power of control supply (kw)	0.5	0.5	0.5	0.5	0.5	0.5	0.5
lnput power of power supply (kw)	24	24	40	54	3.85	3.85	3.85
Cabinet door	Single double	Single double	Single double	Single double	Single double	Single double	Single double
Evaporator	Self-equipped	Self-equipped	Self-equipped	Self-equipped	Extermal steam source	Extermal steam source	Extermal steam source
