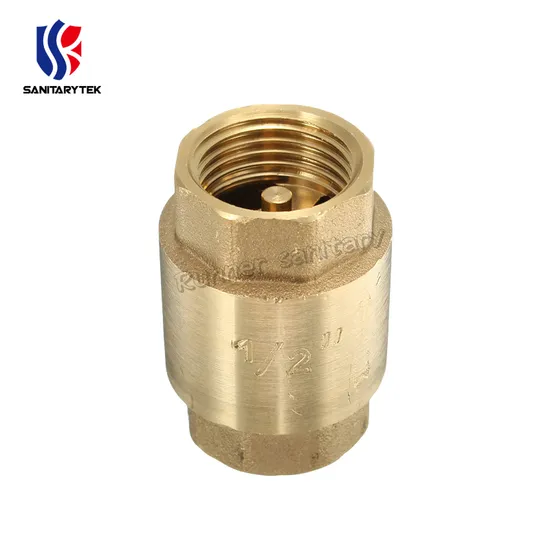

Brass Non Return Spring Check Valve with Brass Core

Product Description

RUNNER Sanitary is established in 1998, with rich experience in water and heating system business, SANITARYTEK is our registered brand. One-stop station, including full line of brass gate valve, brass ball valve, check valve, angle valves, bibcock, water-meter valve, radiator valves, faucets, hose, shower, fittings and accessories etc.
Product Description Brass Universal Spring Check Valve with Brass Core (V24-001B)

Product name	Brass check valve with brass core
Material	brass body and core
Brand	OEM & ODM
Item No.	V24-001B
Thread	BSP or NPT
Surface	Natural brass
Size	1/2" to 4"
Testing pressure	100% tested with 0.6MPa - 0.8MPa by air
Connection	Female thread x Female thread
Samples time	2 days - Current type 15 days - New mould
OEM Acceptable	Yes
Place of origin	Zhejiang,China(Mainland)

Brass forged body, brass disc/ABS disc, Brass bonnet, S/S filter is available for vertical check valve
The valve is suitable for flow non-retuning use. For pump and water pipes instruction
1. Application: Low pressures on condition that non aggressive fluids are used
2. Material: Forged brass (CW617N, CW614, CW602N, ASTM C37700)
3. Size: 1/2''-4''
4. Thread Wtandard: ISO7/1, ISO228, NPT, DIN2999
5. Delivery Time: Within 30~45 days after received payment.
6. Payment Terms: T/T (30% payment in advance, the balance is paid at the sight of B/L copy).
7. Package: Inner box, outer carton, then by pallet Technical Specification:

Working Pressure	1.6Mpa
Tested Pressure	2.0Mpa
Working Medium	Water, oil, gas
Working Temperature	-20° C≤ T≤ 150° C
